Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2)  - This step tests if the IPC is able to illuminate the Service 4-Wheel Steer indicator during the bulb check.

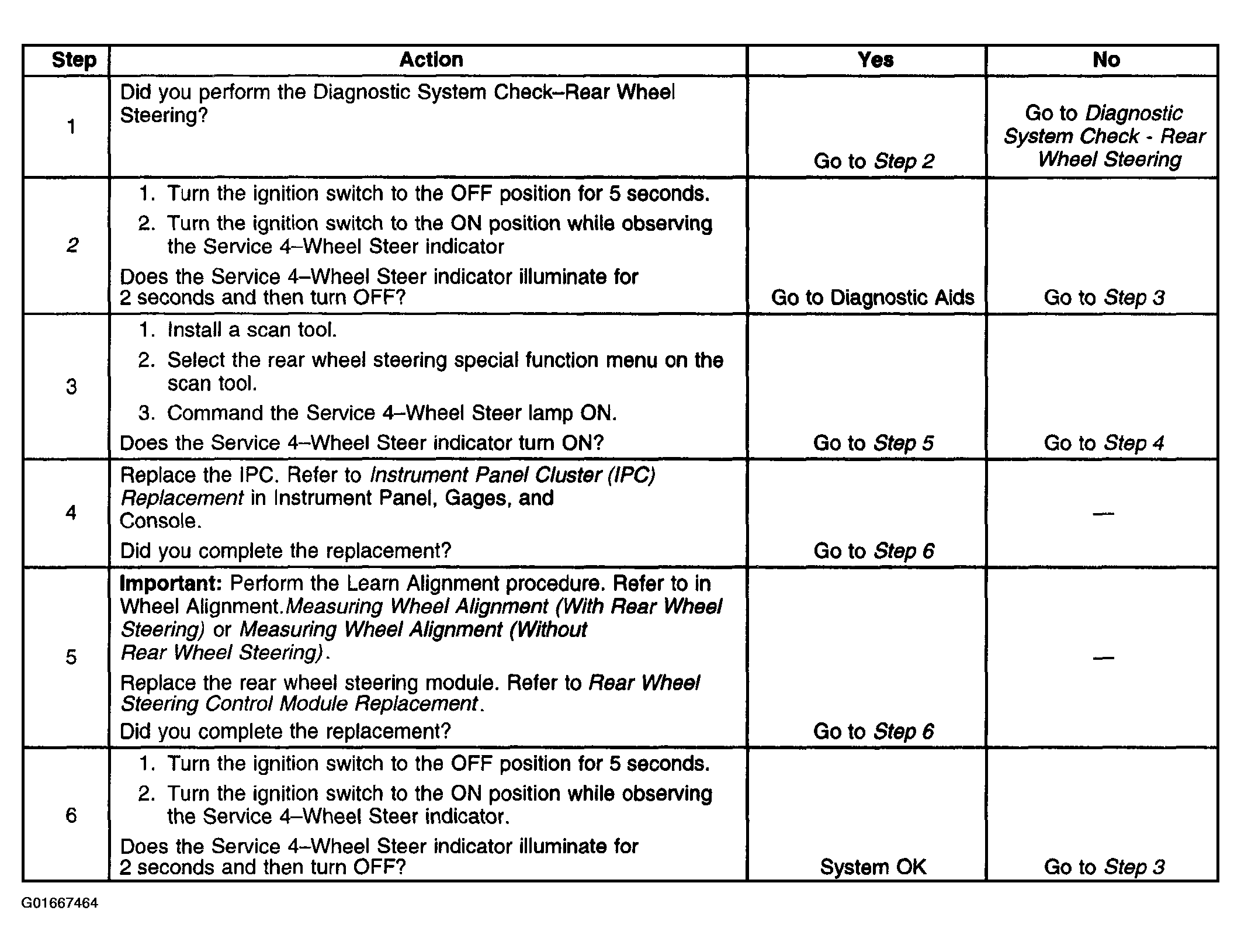

    2. Fig 1: Service 4W Steer Indicator Always On Diagnosis
    G01667464Courtesy of GENERAL MOTORS CORP.
