Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2)  - This DTC requires rear wheel steering control module replacement.

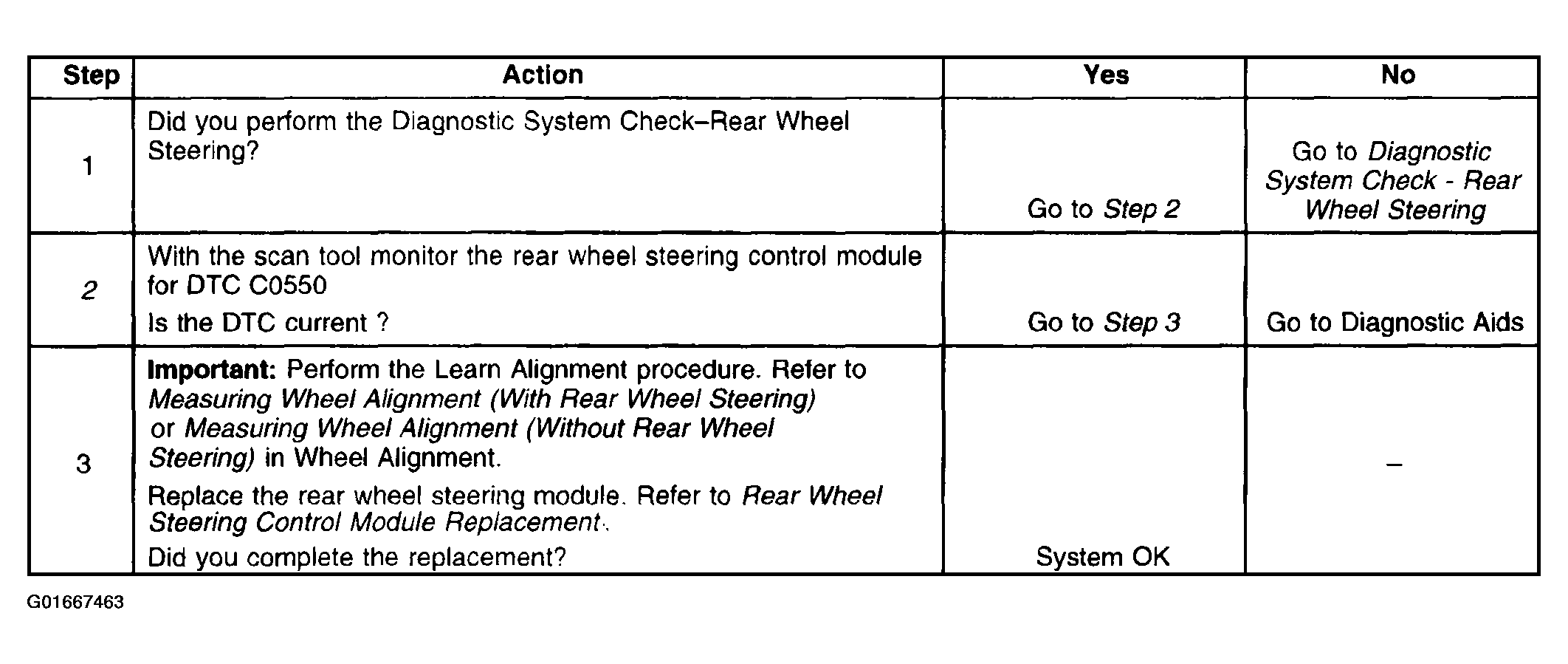

    2. Fig 1: DTC C0550 Diagnosis
    G01667463Courtesy of GENERAL MOTORS CORP.
