Rear Wheel Steering Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

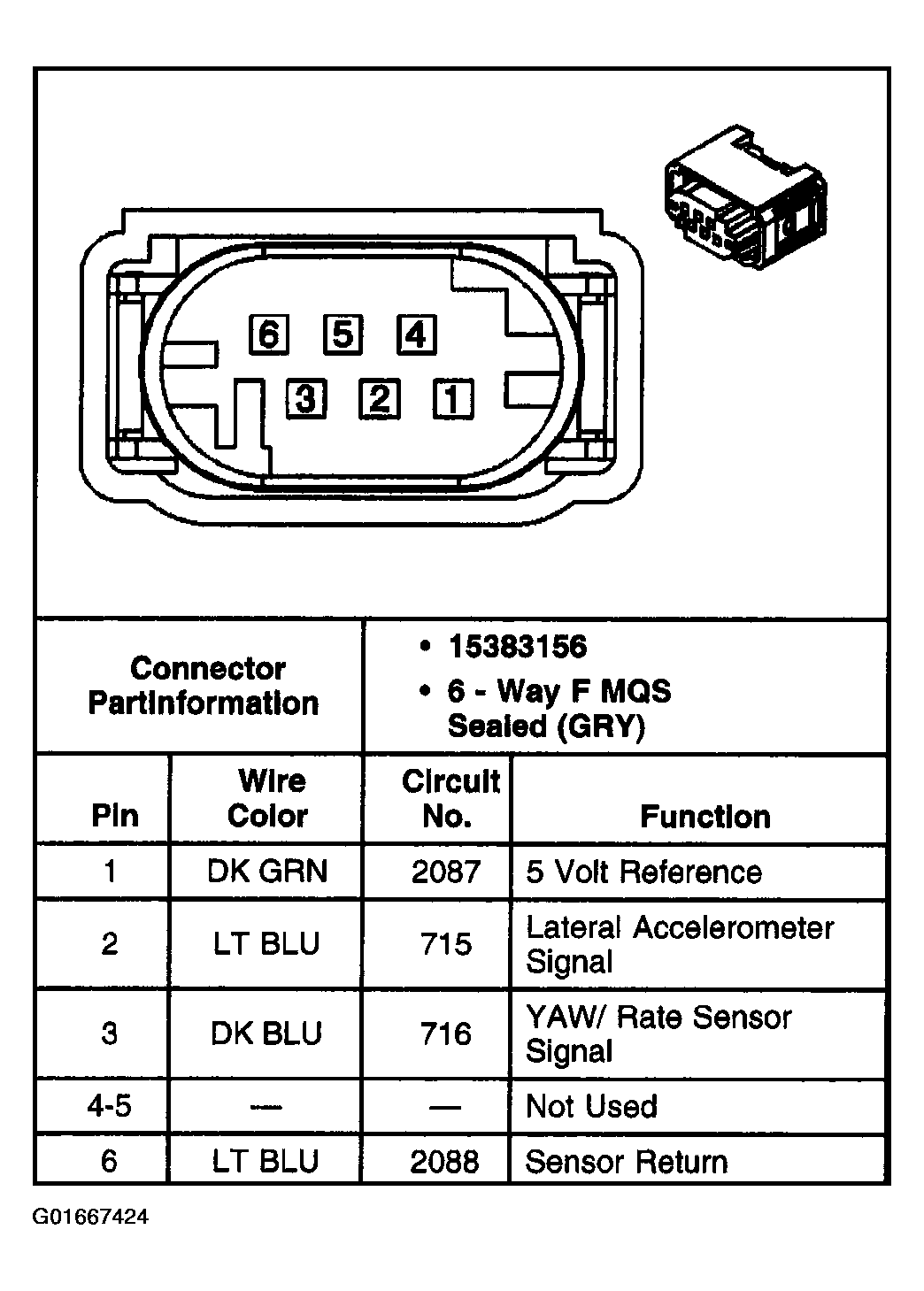

Fig 1: Identifying Combination YAW Rate Sensor/Lateral Accelerometer Sensor Connector Terminals

G01667424

Courtesy of GENERAL MOTORS CORP.

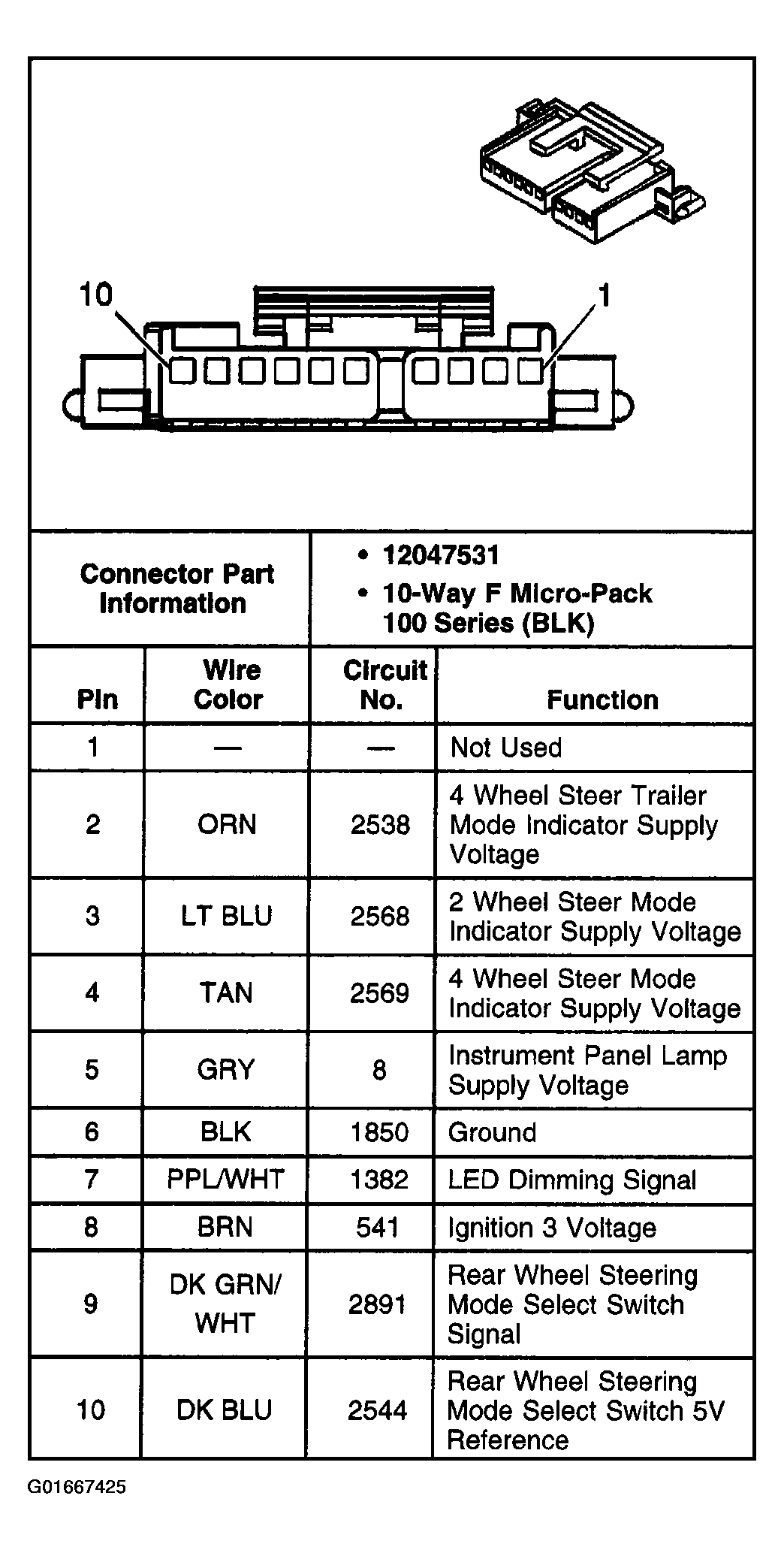

Fig 2: Identifying Rear Wheel Steering Mode Select Switch Connector Terminals

G01667425

Courtesy of GENERAL MOTORS CORP.

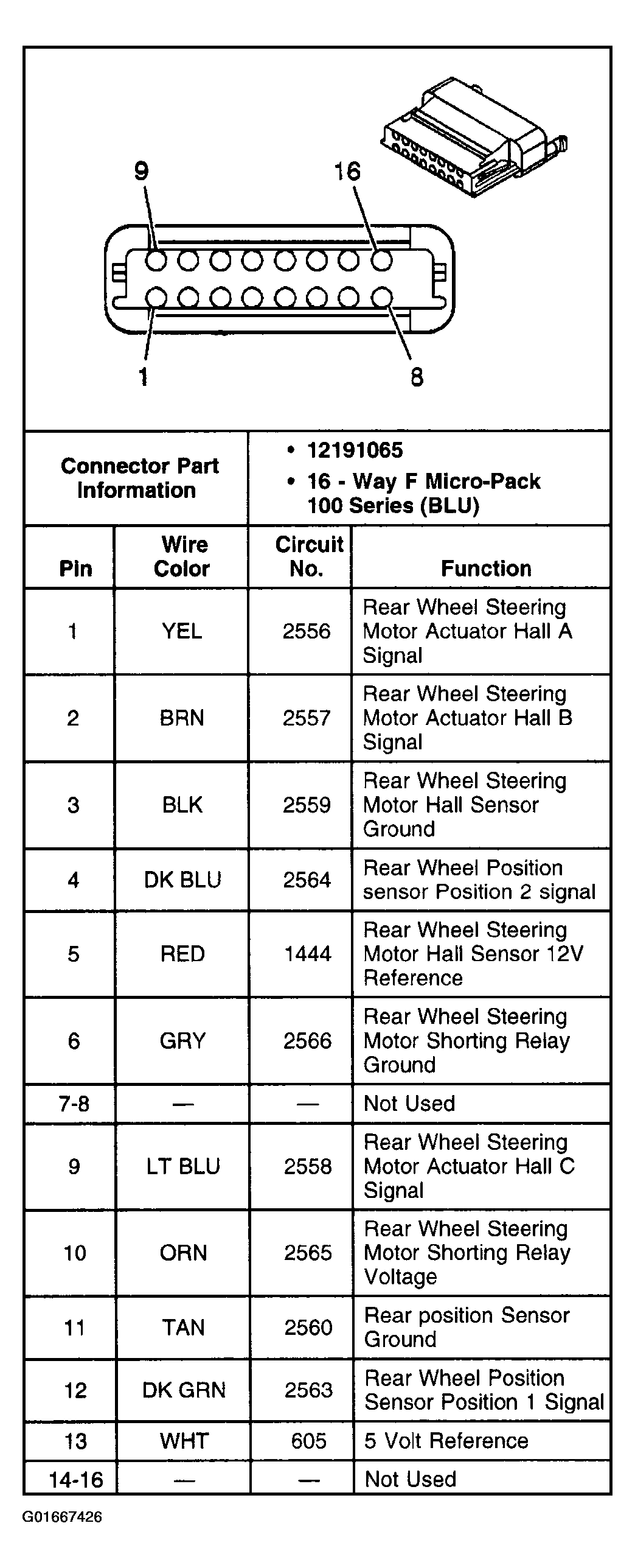

Fig 3: Identifying Rear Wheel Steering Control Module - C1 Connector Terminals

G01667426

Courtesy of GENERAL MOTORS CORP.

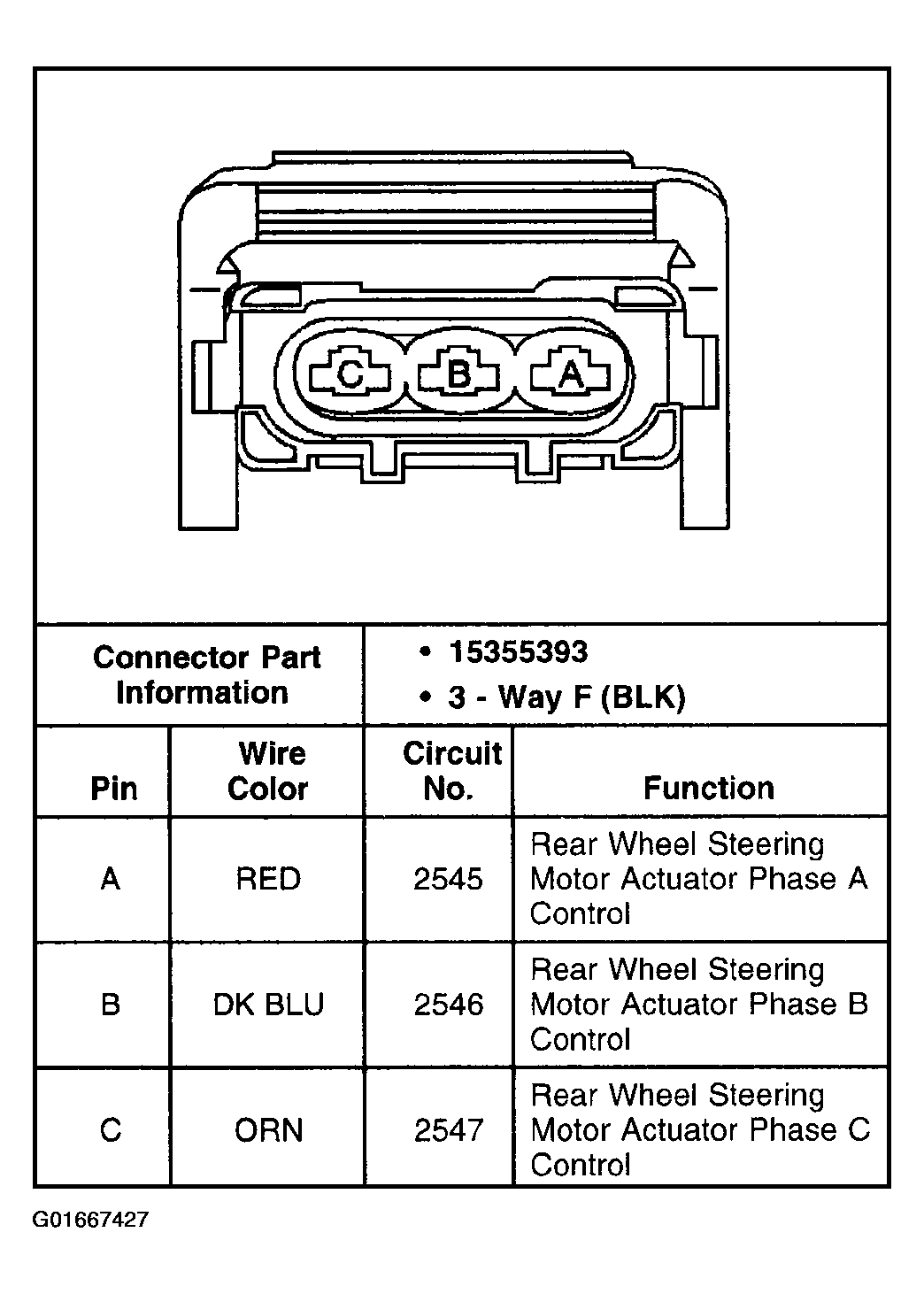

Fig 4: Identifying Rear Wheel Steering Control Module - C2 Connector Terminals

G01667427

Courtesy of GENERAL MOTORS CORP.

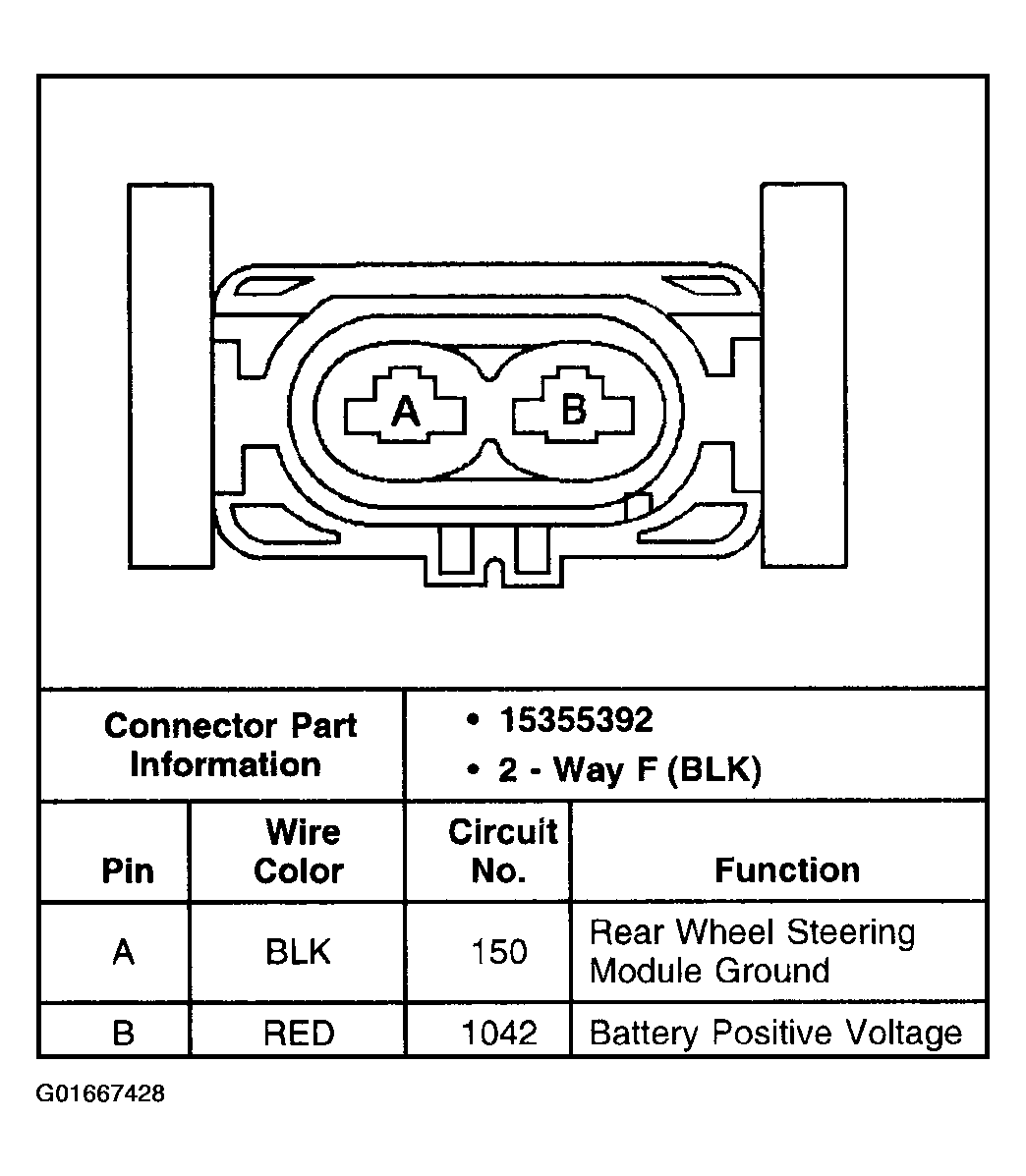

Fig 5: Identifying Rear Wheel Steering Control Module - C3 Connector Terminals

G01667428

Courtesy of GENERAL MOTORS CORP.

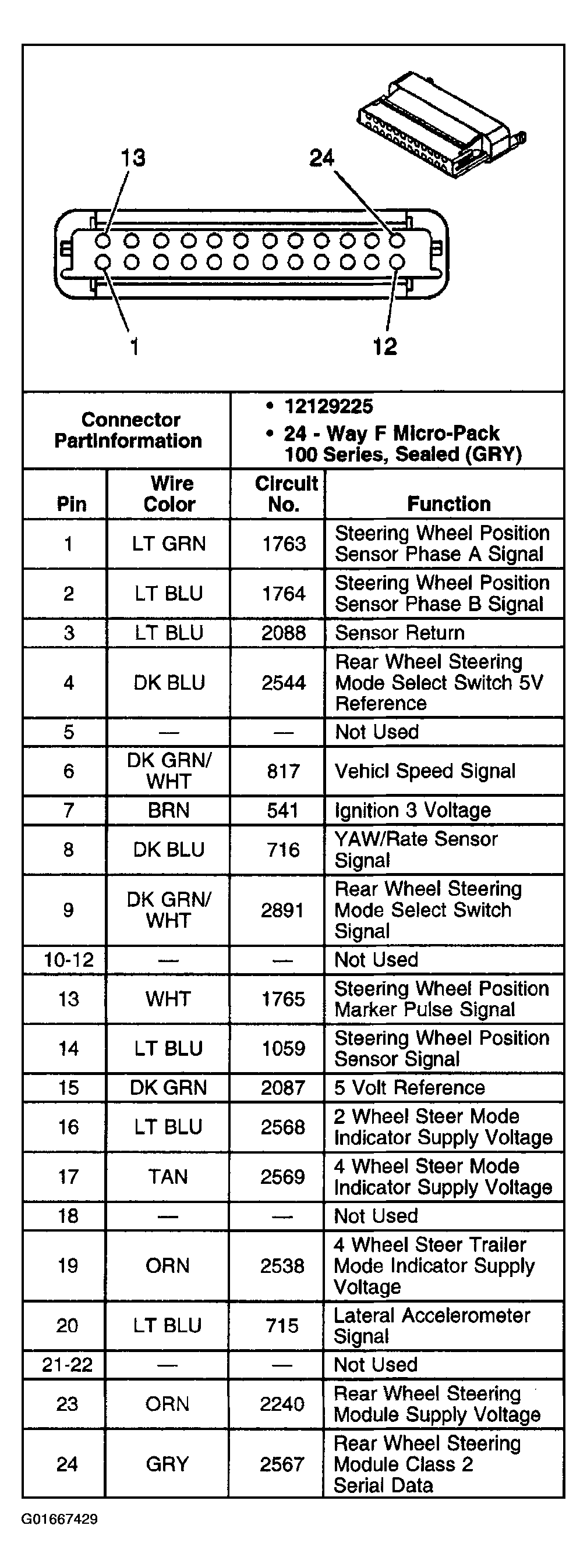

Fig 6: Identifying Rear Wheel Steering Module - C4 Connector Terminals

G01667429

Courtesy of GENERAL MOTORS CORP.

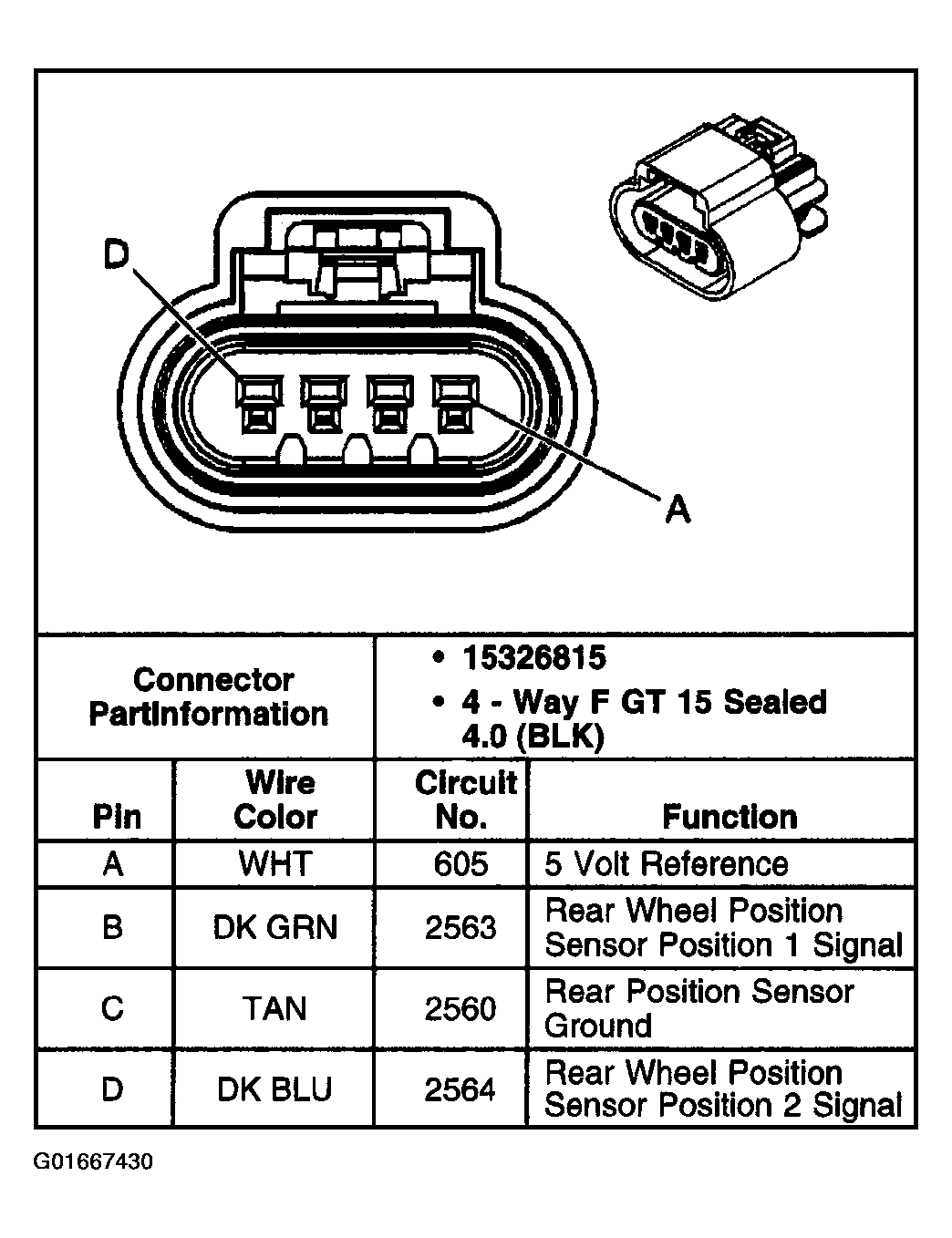

Fig 7: Identifying Rear Wheel Position Sensor Connector Terminals

G01667430

Courtesy of GENERAL MOTORS CORP.

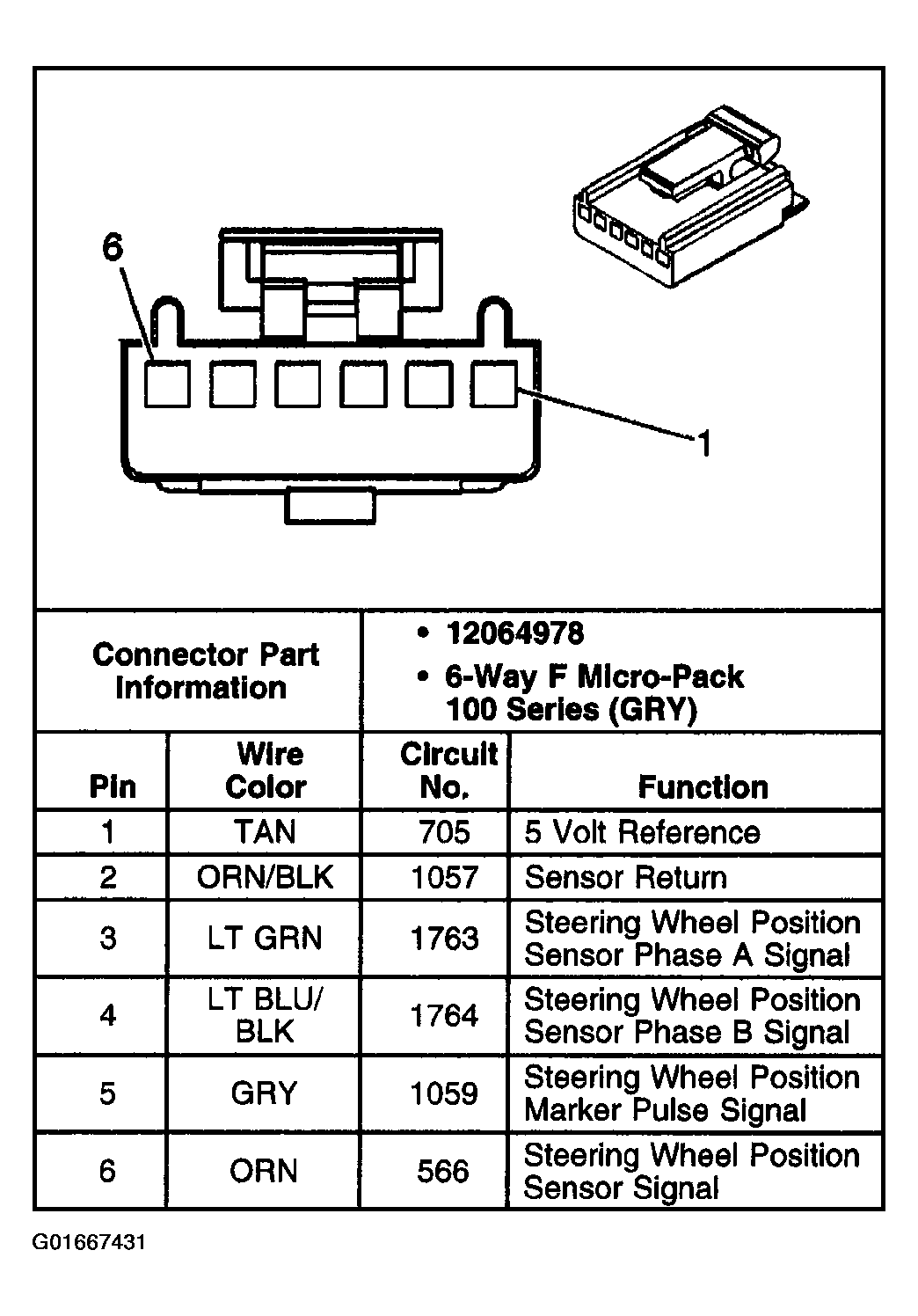

Fig 8: Identifying Steering Wheel Speed/Position Sensor Connector Terminals

G01667431

Courtesy of GENERAL MOTORS CORP.
