Rear Wheel Steering Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

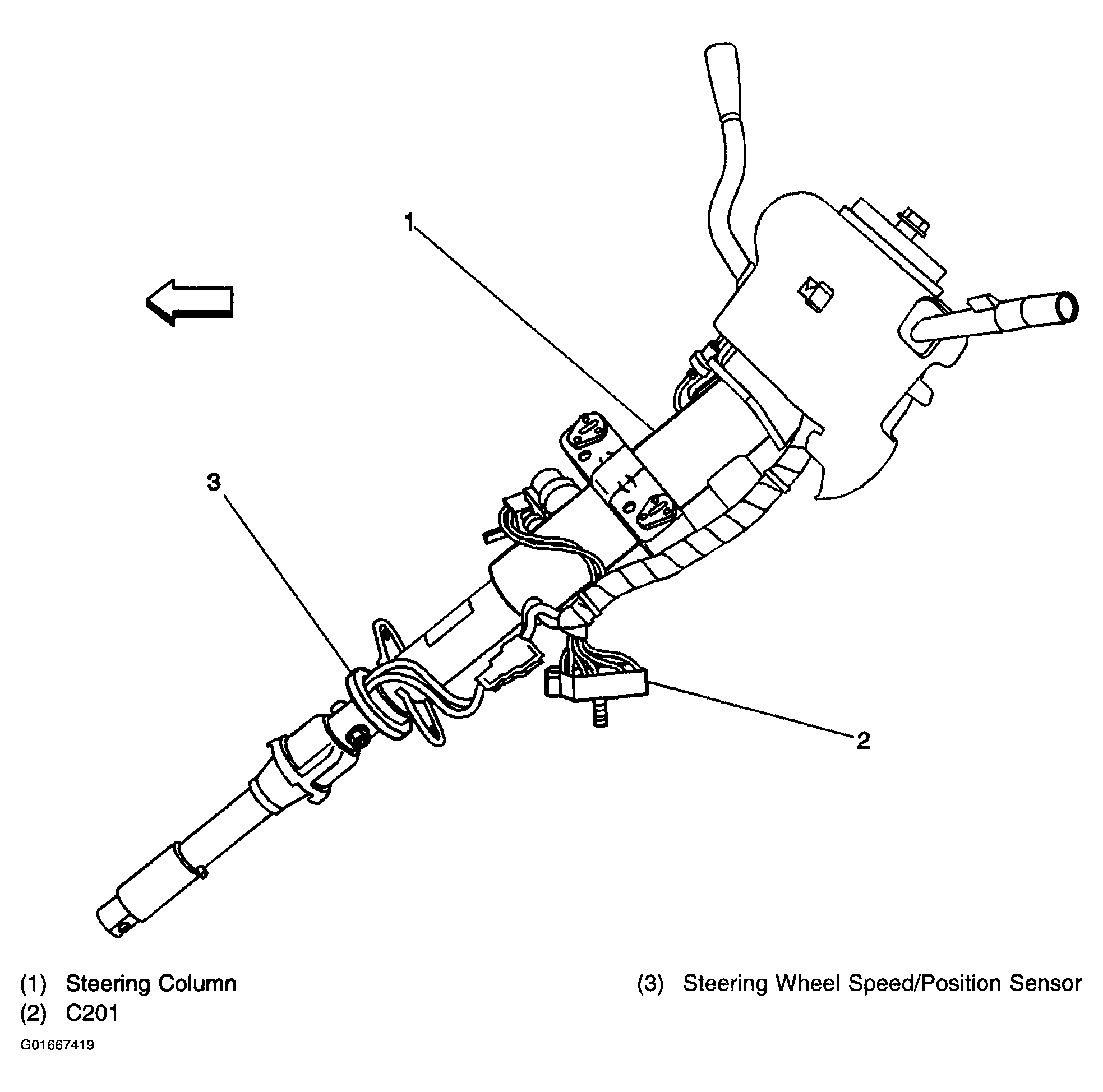

Fig 1: Locating Steering Wheel Speed/Position Sensor

Courtesy of GENERAL MOTORS CORP.

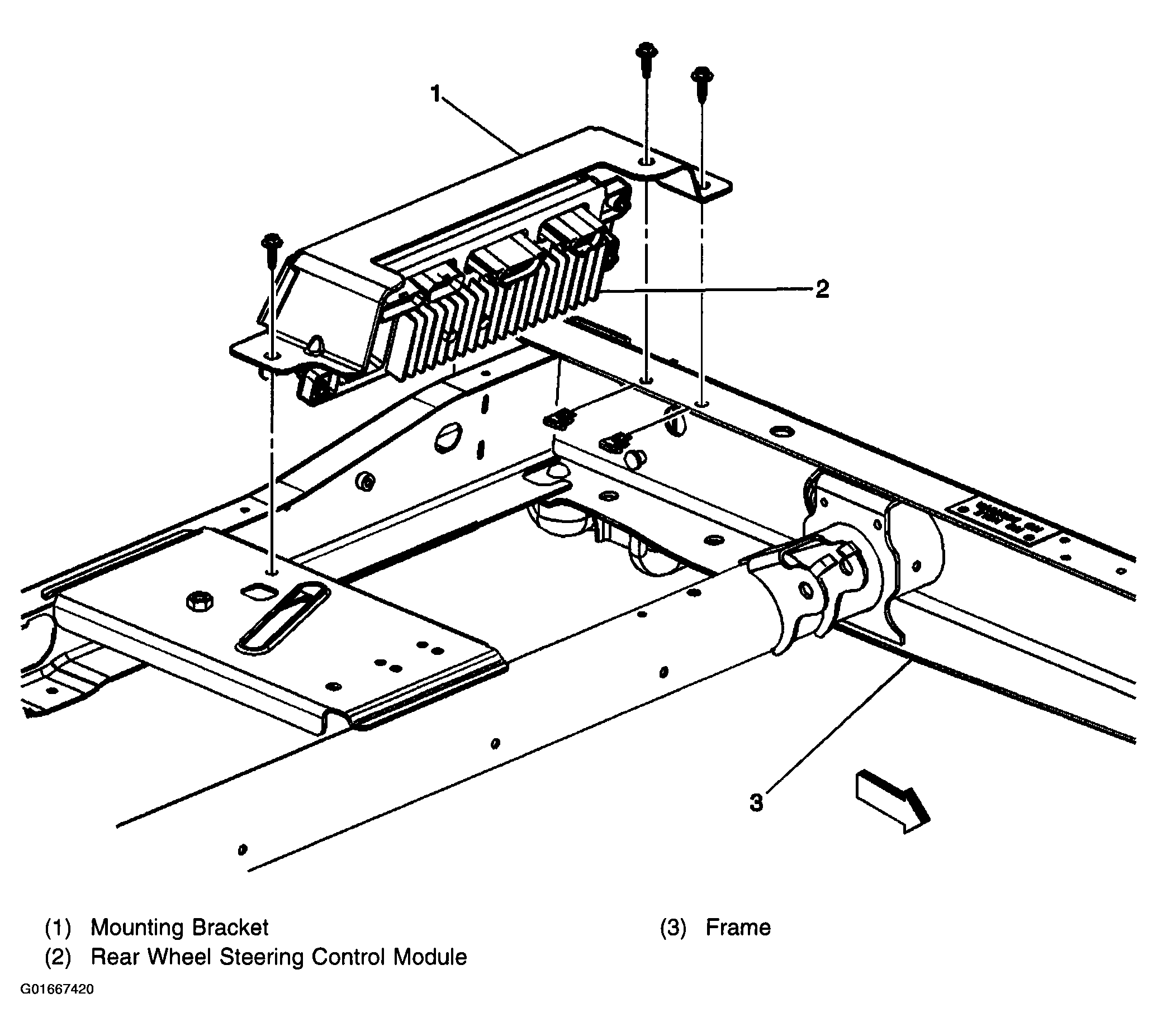

Fig 2: Locating Rear Wheel Steering Control Module

Courtesy of GENERAL MOTORS CORP.

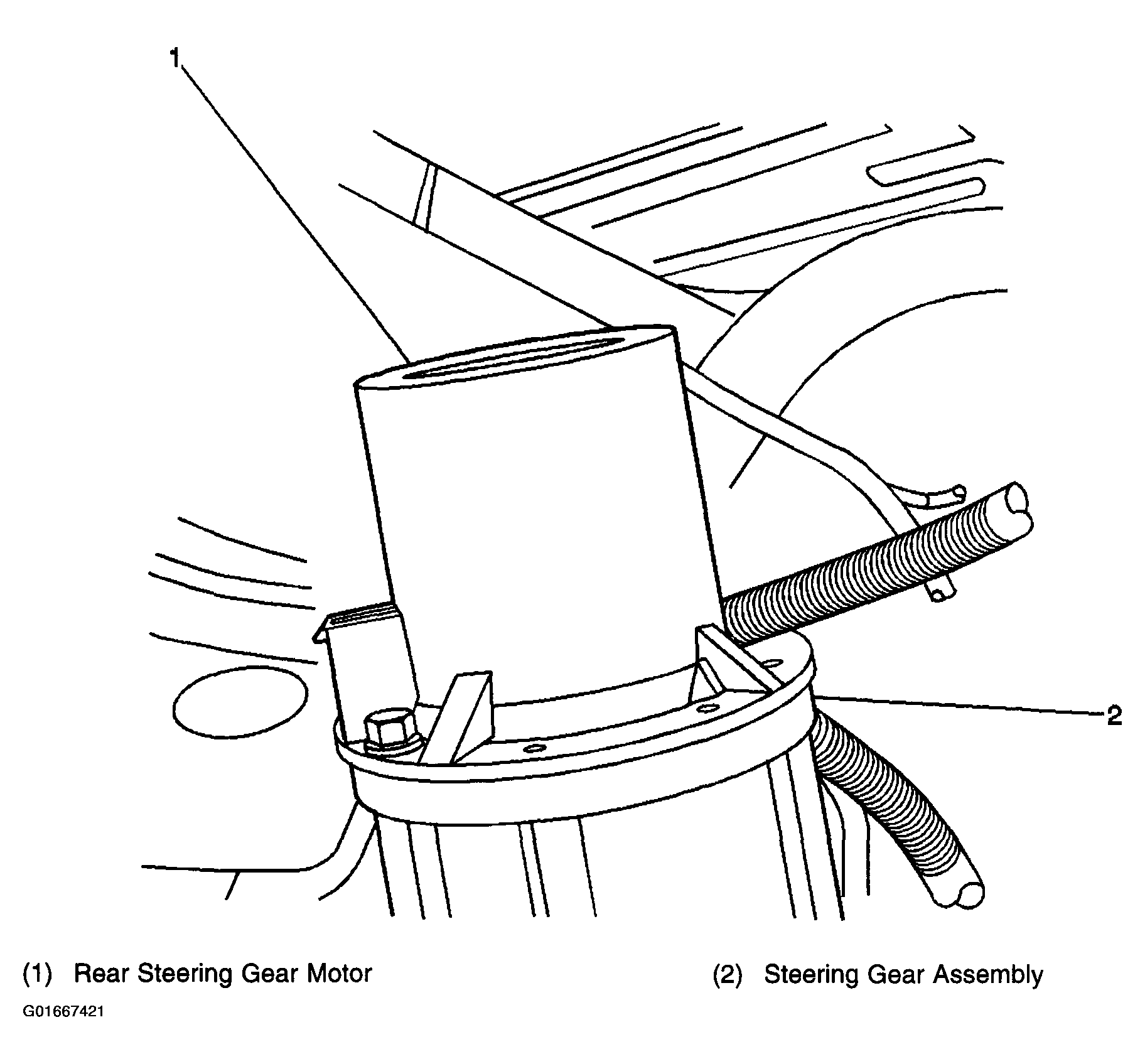

Fig 3: Locating Rear Steering Gear Motor

Courtesy of GENERAL MOTORS CORP.

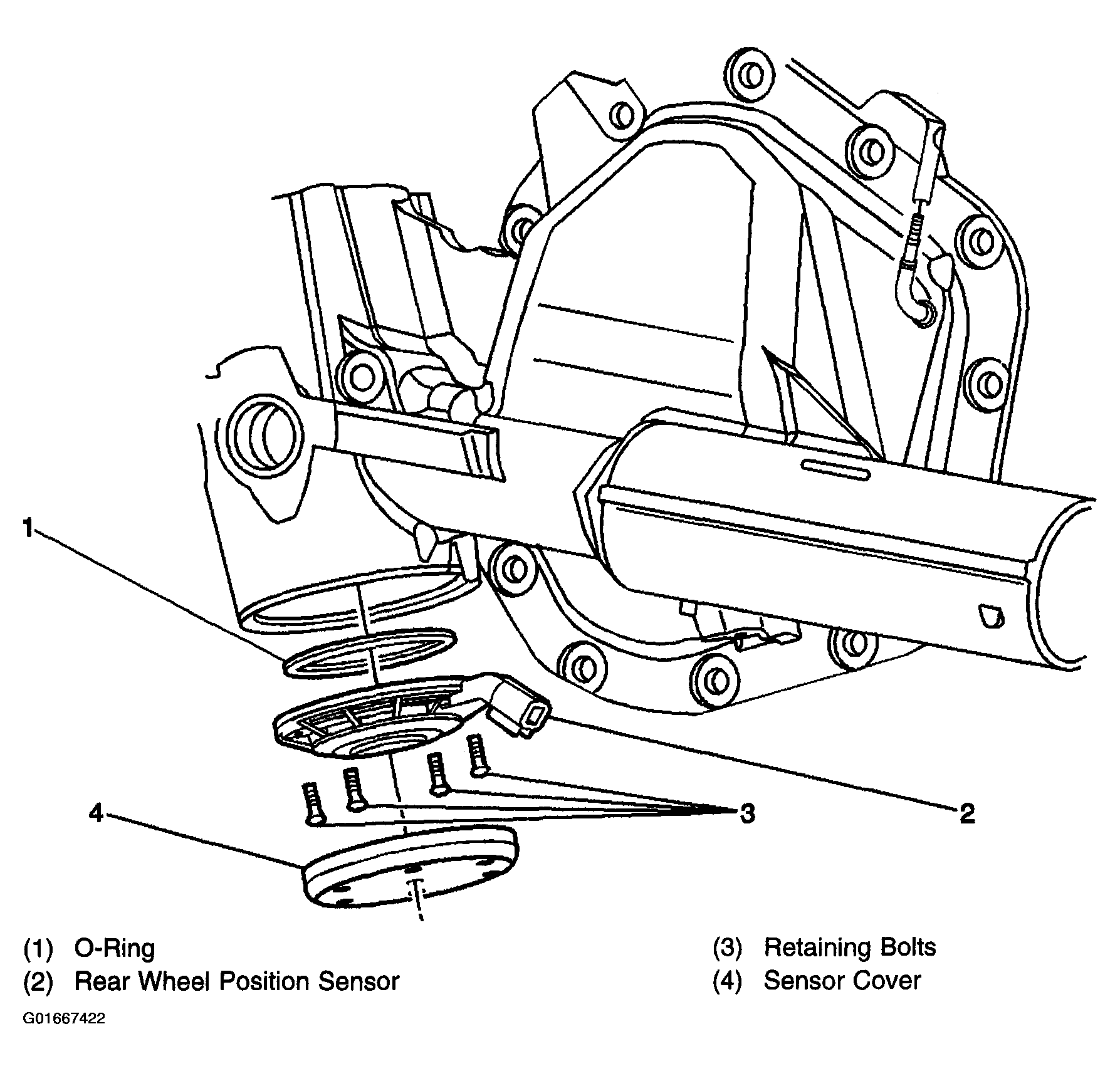

Fig 4: Locating Rear Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.

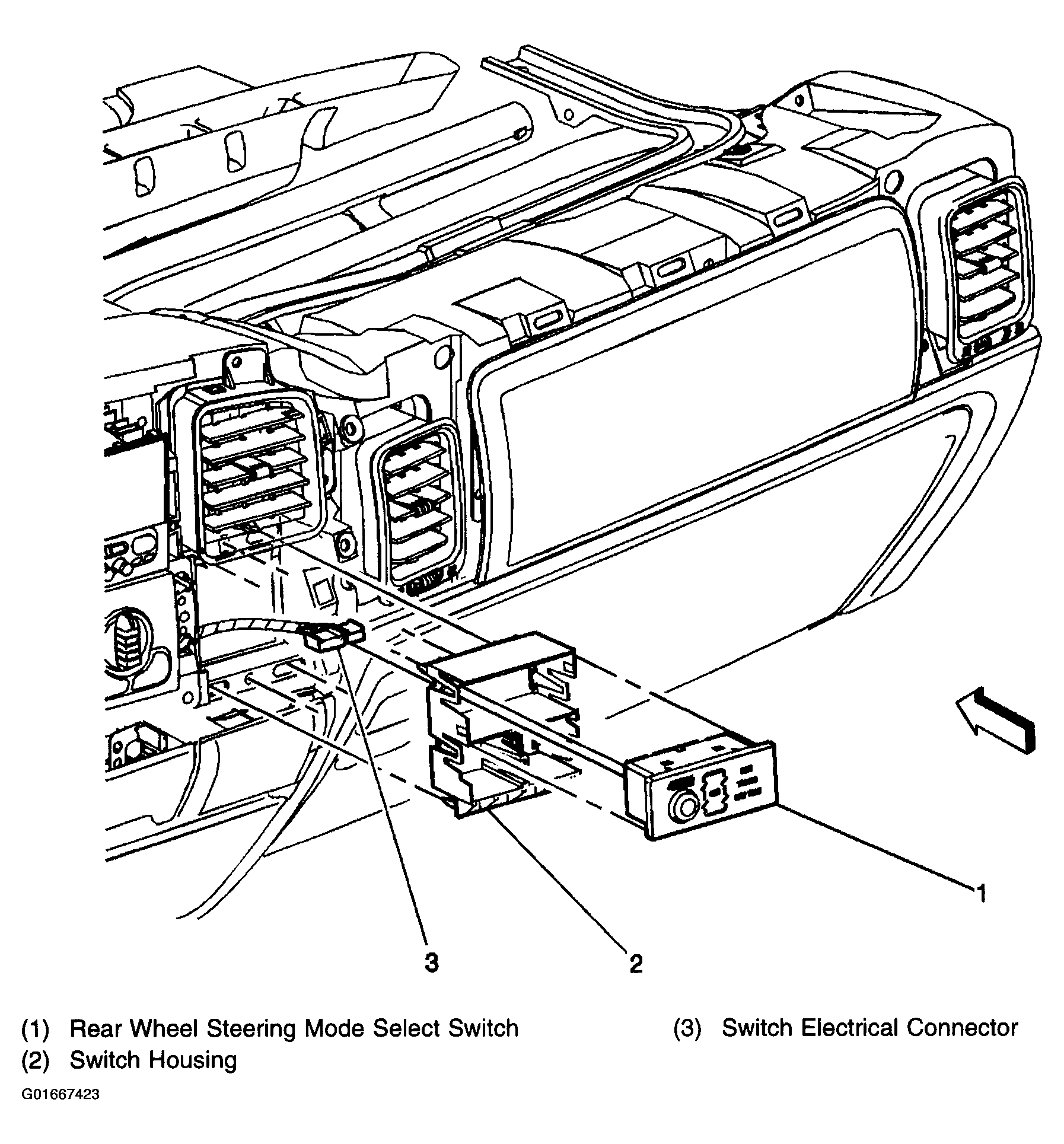

Fig 5: Locating Rear Wheel Steering Mode Select Switch

Courtesy of GENERAL MOTORS CORP.
