Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the tilt lever to tilt the column to the UP position.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Remove the tilt spring (1) in the following manner:
    1. 3.1. Pry the tilt spring up until a bulge occurs and most of the tilt spring tension is removed.
    2. 3.2. Secure the tilt spring with locking pliers and continue prying until the tilt spring disengages from the post of the steering column support assembly (3).

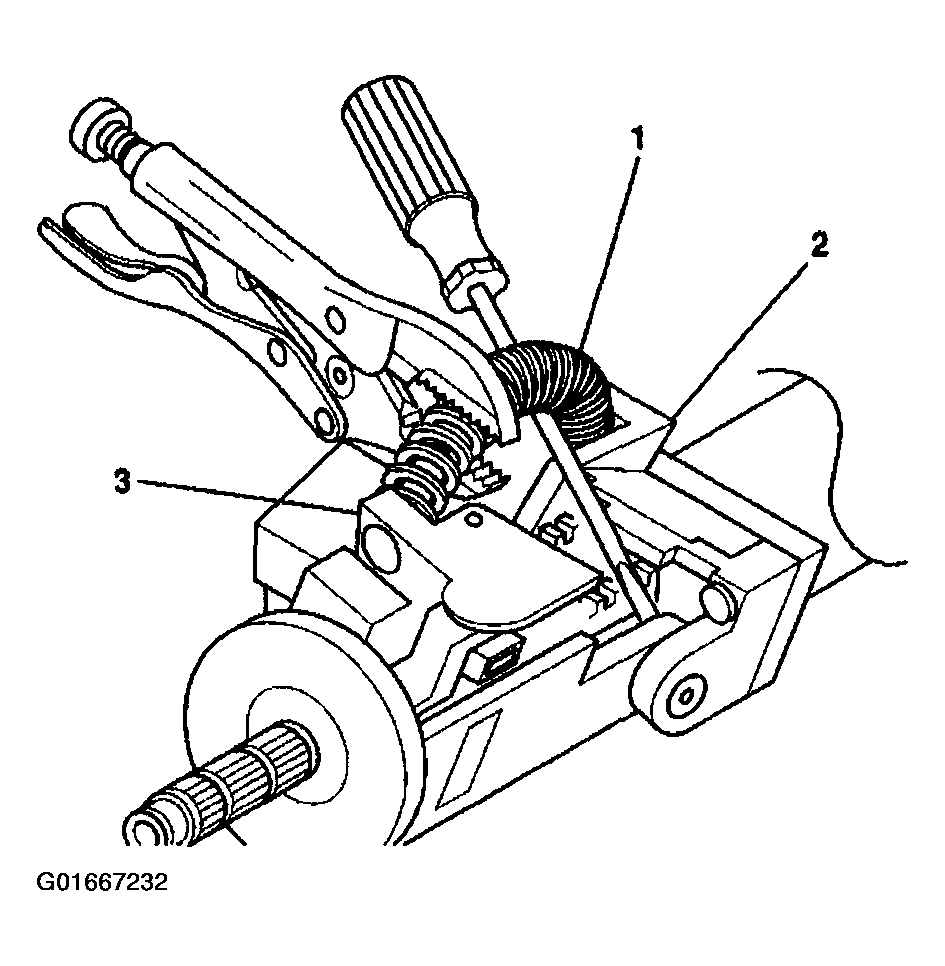

      Fig 1: Tilt Spring
      G01667232Courtesy of GENERAL MOTORS CORP.
  4. Remove the spring guide (1) from the tilt spring (2).
    Fig 2: Tilt Spring Guide
    G01667233Courtesy of GENERAL MOTORS CORP.
