Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. Refer to Steering Wheel Replacement .
  2. Remove the steering wheel rear trim cover mounting screws.

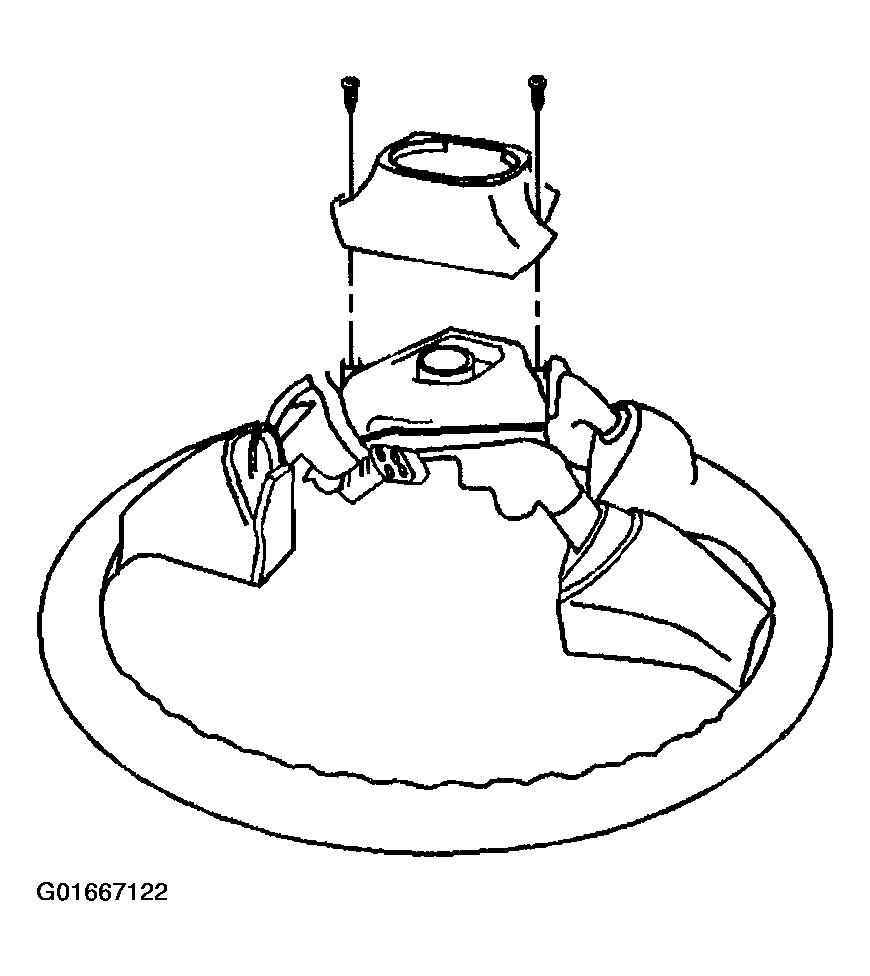

    3. Fig 1: Steering Wheel Rear Trim Cover
    G01667122Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering wheel rear trim cover.
