Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the inflator module. Refer to AIR BAG MODULES .
  3. Remove the horn switch. Refer to Horn Switch Replacement - On Vehicle .
  4. Make an alignment mark in order to note the relationship of the steering wheel to the steering shaft.
  5. Remove the steering wheel nut.
  6. Remove the steering wheel, using the J 1859-A  .

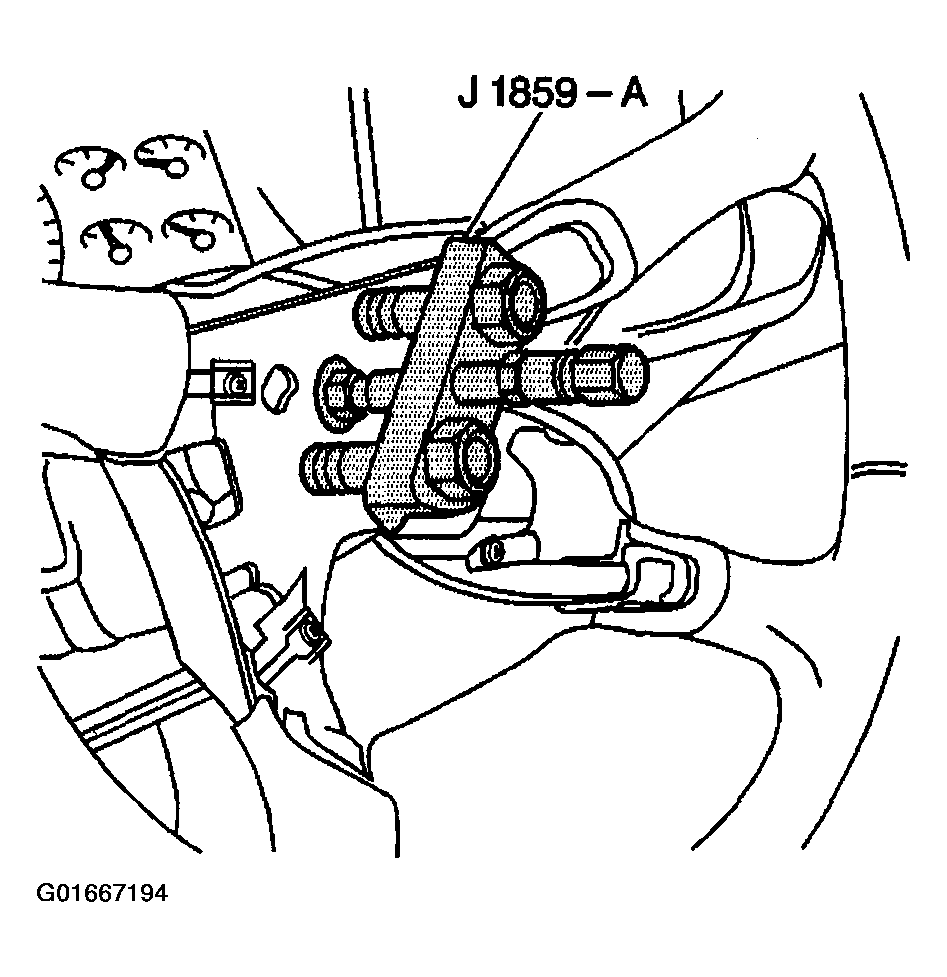

    Fig 1: Removing Steering Wheel
    G01667194Courtesy of GENERAL MOTORS CORP.
