Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the knee bolster.

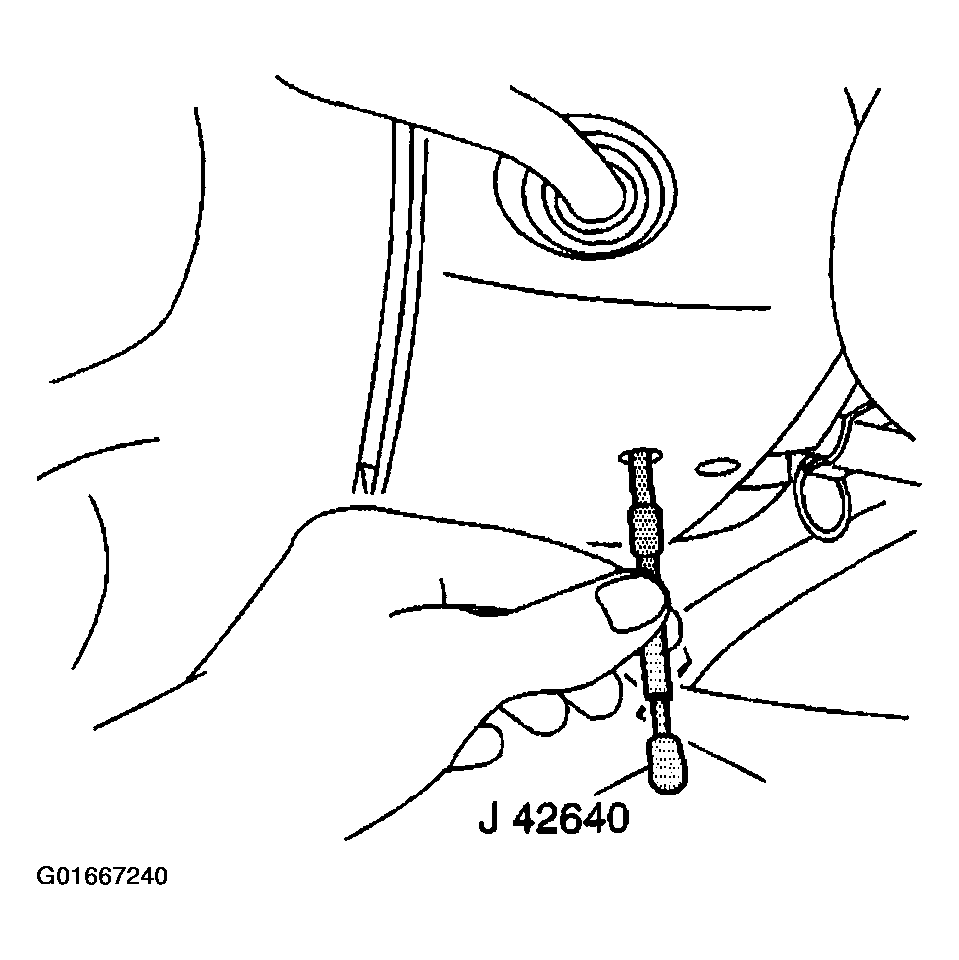

    Fig 1: Steering Column Anti-Rotation Pin
    G01667240Courtesy of GENERAL MOTORS CORP.
    NOTE: The front wheels of the vehicle must be maintained in the straight ahead position and the steering column must be in the LOCK position before disconnecting the steering column or intermediate shaft. Failure to follow these procedures will cause improper alignment of some components during installation and result in damage to the SIR coil assembly.
  3. Lock the steering column through the access hole in the lower steering column trim cover using the J 42640  .
  4. Remove the body control module bracket. Do not disconnect the harness from the body control module. Refer to Body Control Module Replacement in Body Control System.
  5. Disconnect the transmission shift cable (1) from the column.

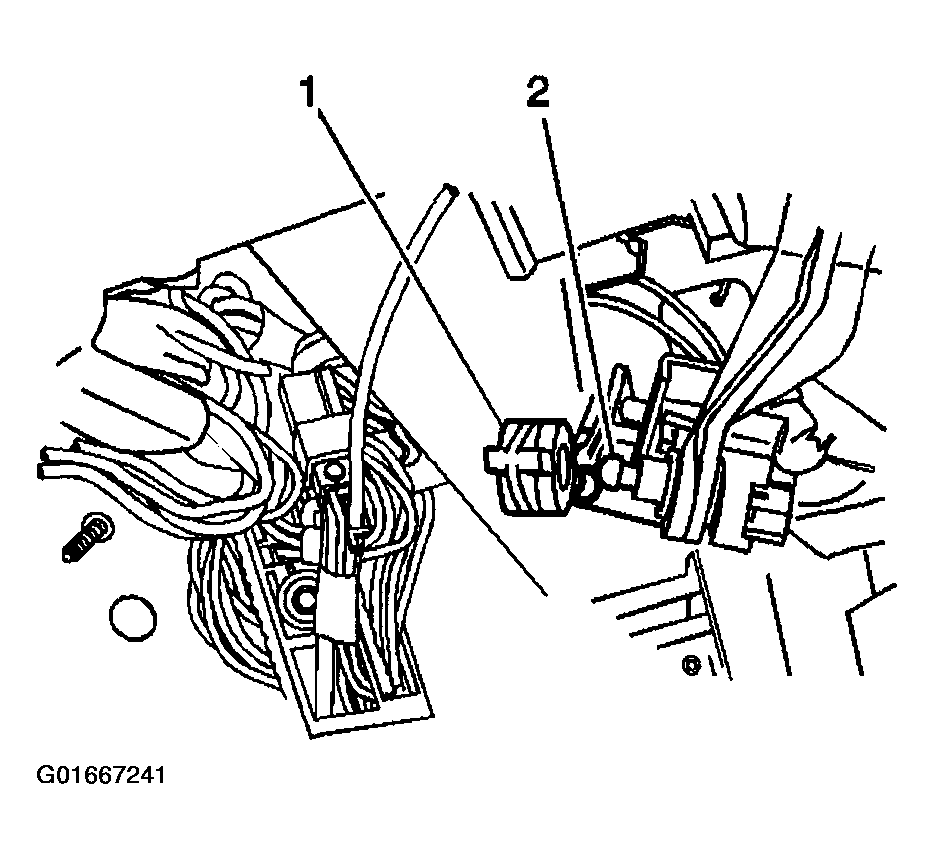

    Fig 2: Transmission Shift Cable
    G01667241Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the steering column electrical connectors.

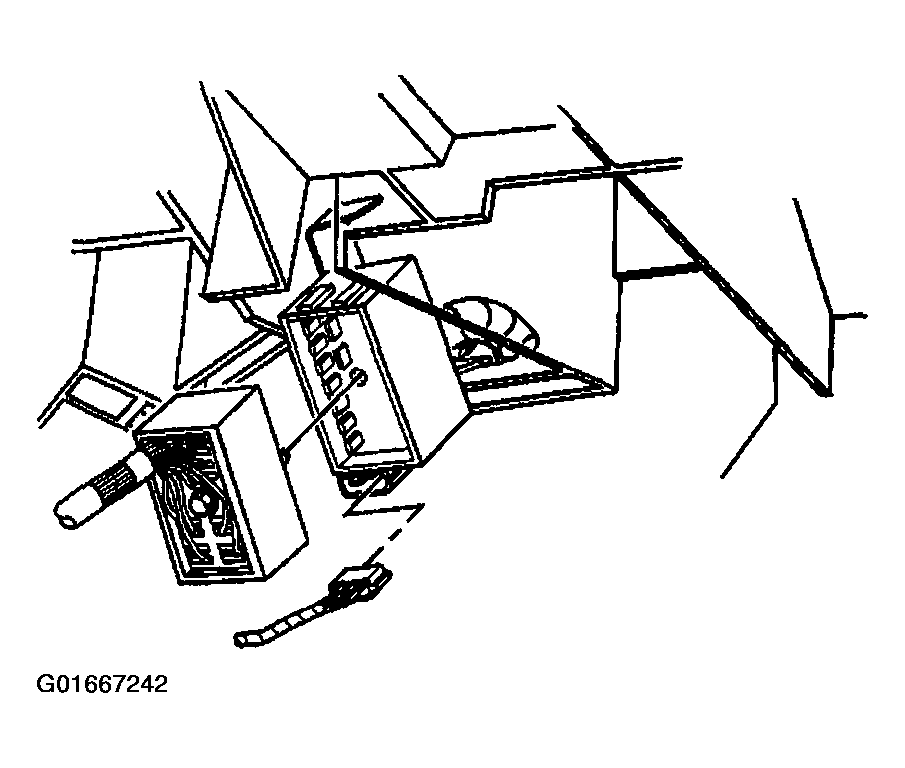

    Fig 3: Steering Column Electrical Connectors
    G01667242Courtesy of GENERAL MOTORS CORP.
    NOTE: During removal of the steering column the wire harness retaining clip must be removed and reinstalled after installing the steering column or damage may occur to the wire harness.
  7. Remove the wiring harness retaining pin (4) from the instrument panel.

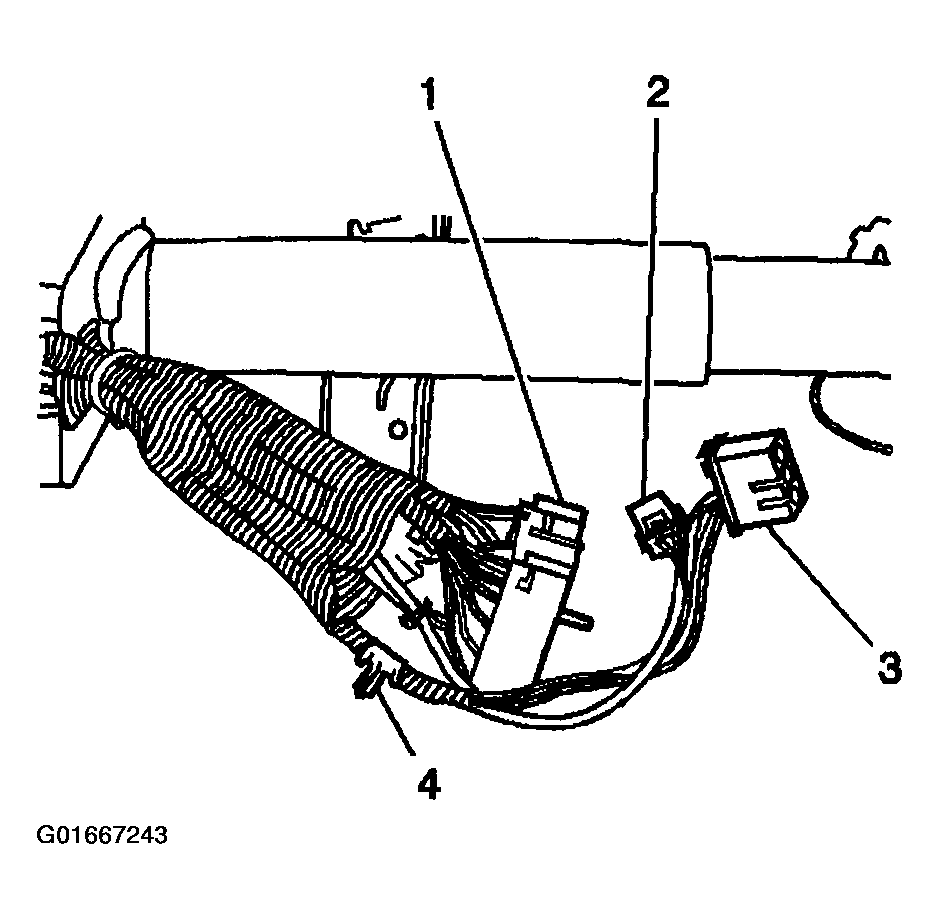

    Fig 4: Wiring Harness Retaining Pin To Instrument Panel
    G01667243Courtesy of GENERAL MOTORS CORP.
  8. Remove the upper intermediate shaft pinch bolt (1) from the steering column and remove the shaft from the steering column.

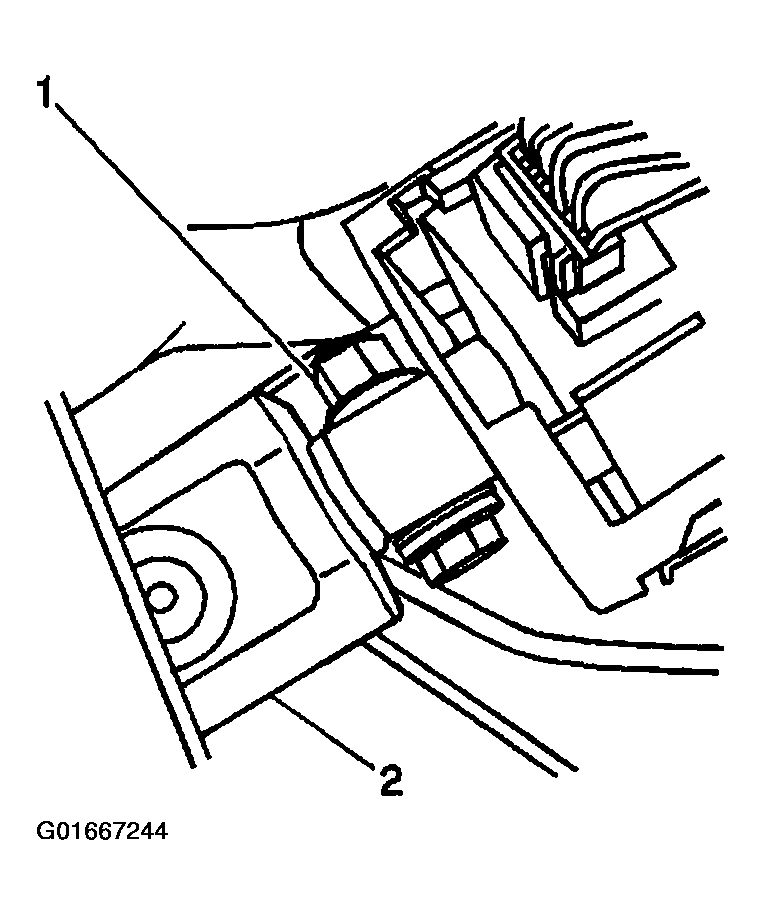

    Fig 5: Upper Intermediate Shaft Pinch Bolt
    G01667244Courtesy of GENERAL MOTORS CORP.
  9. Remove the nuts (1) from the knee bolster deflector.

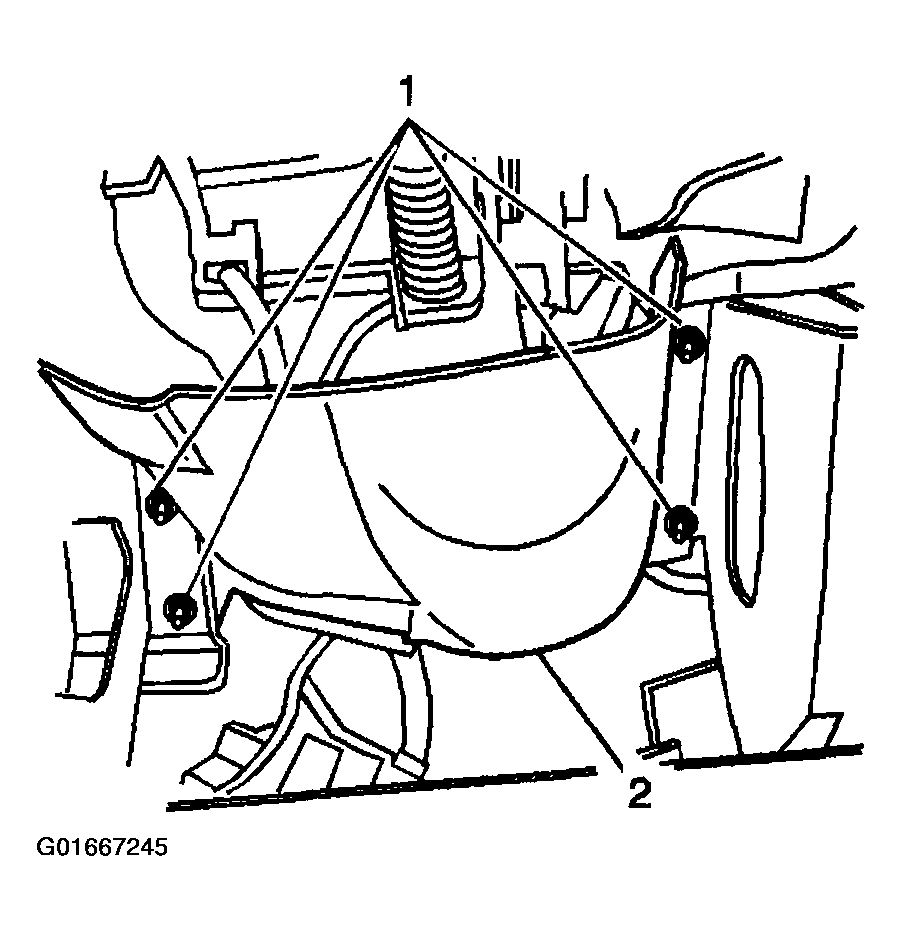

    Fig 6: Knee Bolster Deflector
    G01667245Courtesy of GENERAL MOTORS CORP.
  10. Remove the nuts from the upper support brackets.
    NOTE: Once the steering column is removed from the vehicle, the column is extremely susceptible to damage. Dropping the column assembly on the end could collapse the steering shaft or loosen the plastic injections, which maintain column rigidity. Leaning on the column assembly could cause the jacket to bend or deform. Any of the above damage could impair the columns collapsible design. Do NOT hammer on the end of the shaft, because hammering could loosen the plastic injections, which maintain column rigidity. If you need to remove the steering wheel, refer to the Steering Wheel Replacement procedure in this section.
  11. Remove the steering column from the vehicle.

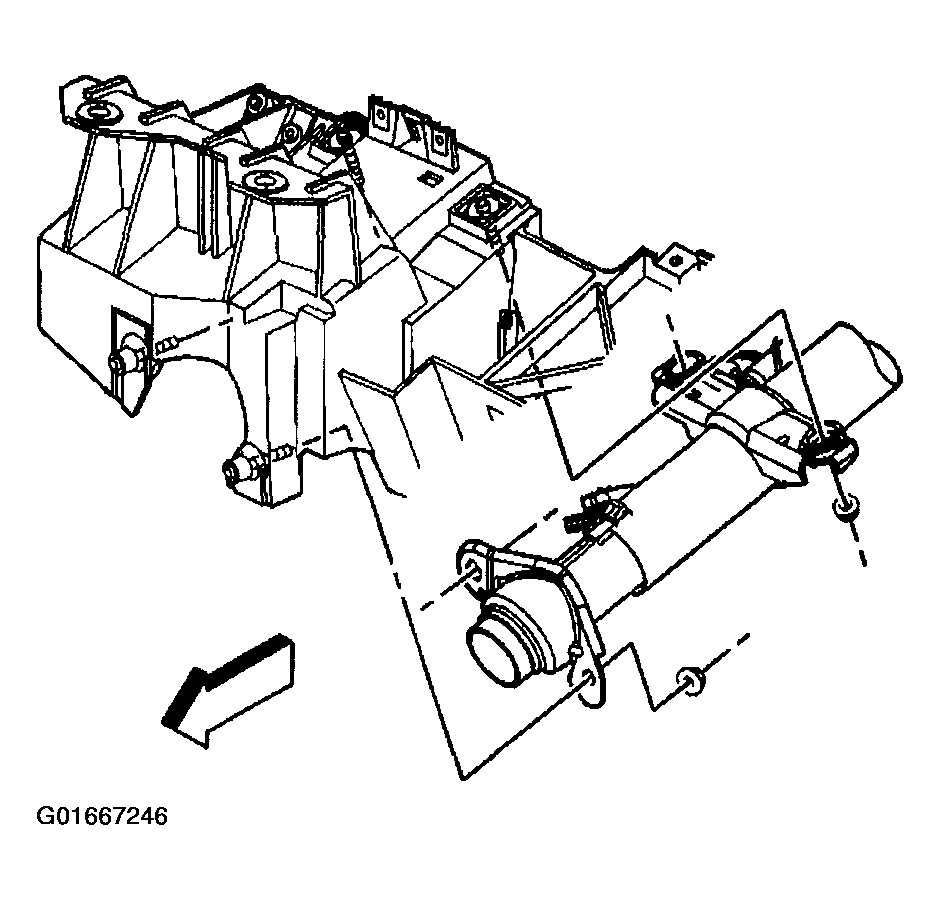

    Fig 7: Steering Column
    G01667246Courtesy of GENERAL MOTORS CORP.
