Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Roll back the seal until the TORX® head screw (2) is exposed.
  2. Remove the TORX® head screw (2).
  3. Remove the shift lever (1).

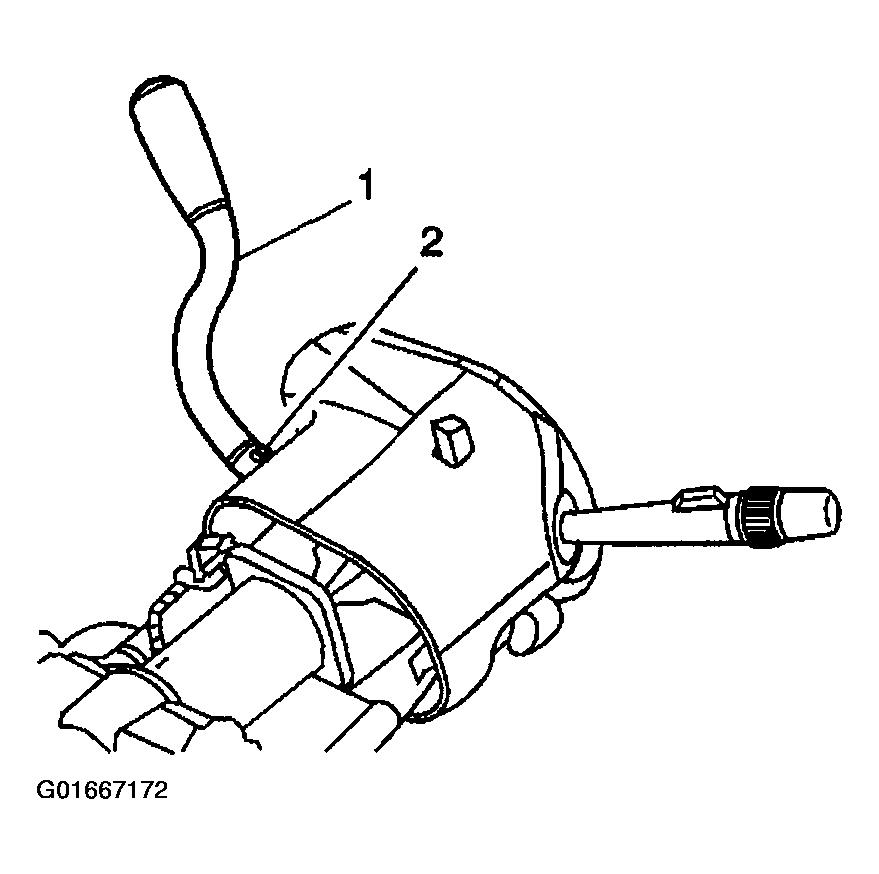

    Fig 1: Shift Lever
    G01667172Courtesy of GENERAL MOTORS CORP.
