Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper end of the intermediate shaft into the upper shaft.
  2. Install the lower end of the intermediate shaft coupler.
    1. 2.1. If you are reinstalling the same shaft, align the marks made during the removal procedure.
    2. 2.2. Install the lower end of the intermediate shaft coupler onto the steering gear worm shaft.
  3. Install the bolt to the lower shaft coupler.
  4. Install the bolt to the upper end of the shaft.
    • Tighten the upper bolt to 47 N.m (35 lb ft).
    • Tighten the coupler pinch bolt to 47 N.m (35 lb ft).

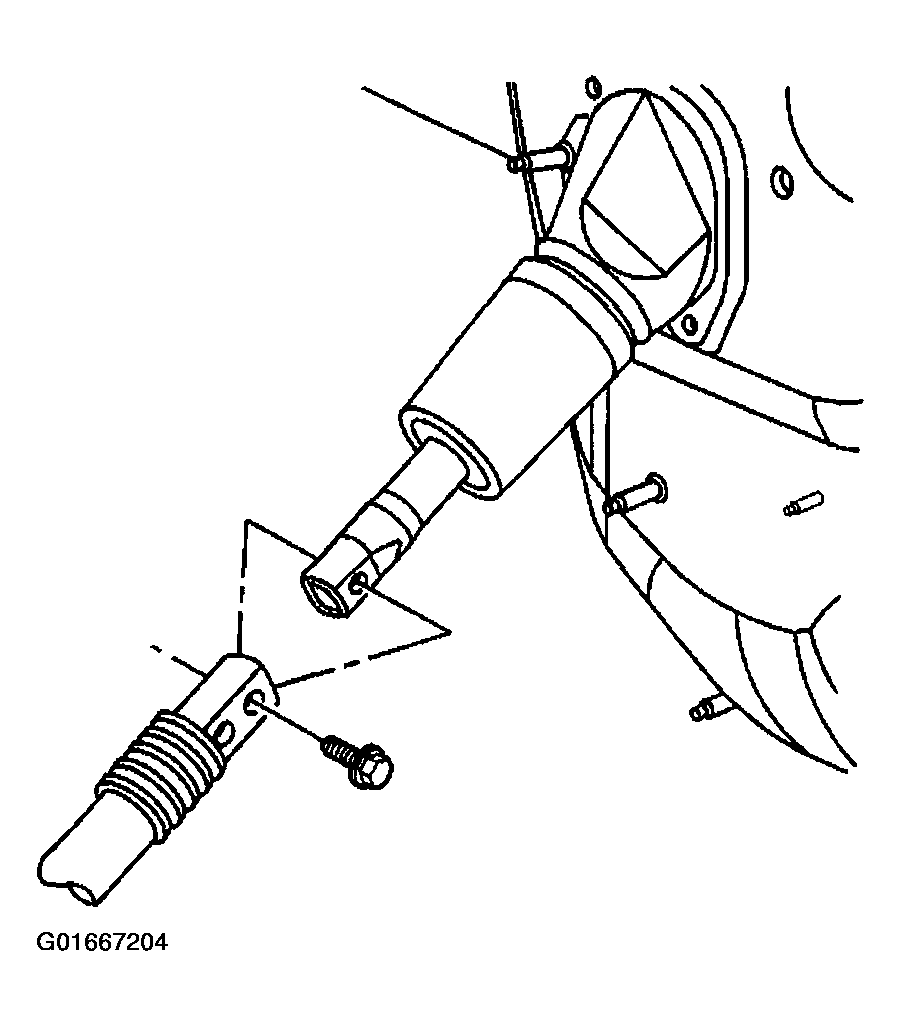

      Fig 1: Coupler Pinch Bolt
      G01667204Courtesy of GENERAL MOTORS CORP.
  5. Remove the J 42640  from the steering column lower access hole.
