Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the engine protection shield, if equipped.
  3. Remove the outer tie rod end. Refer to Tie Rod Replacement .
  4. Remove the inner tire rod end using the J 34028  (2).

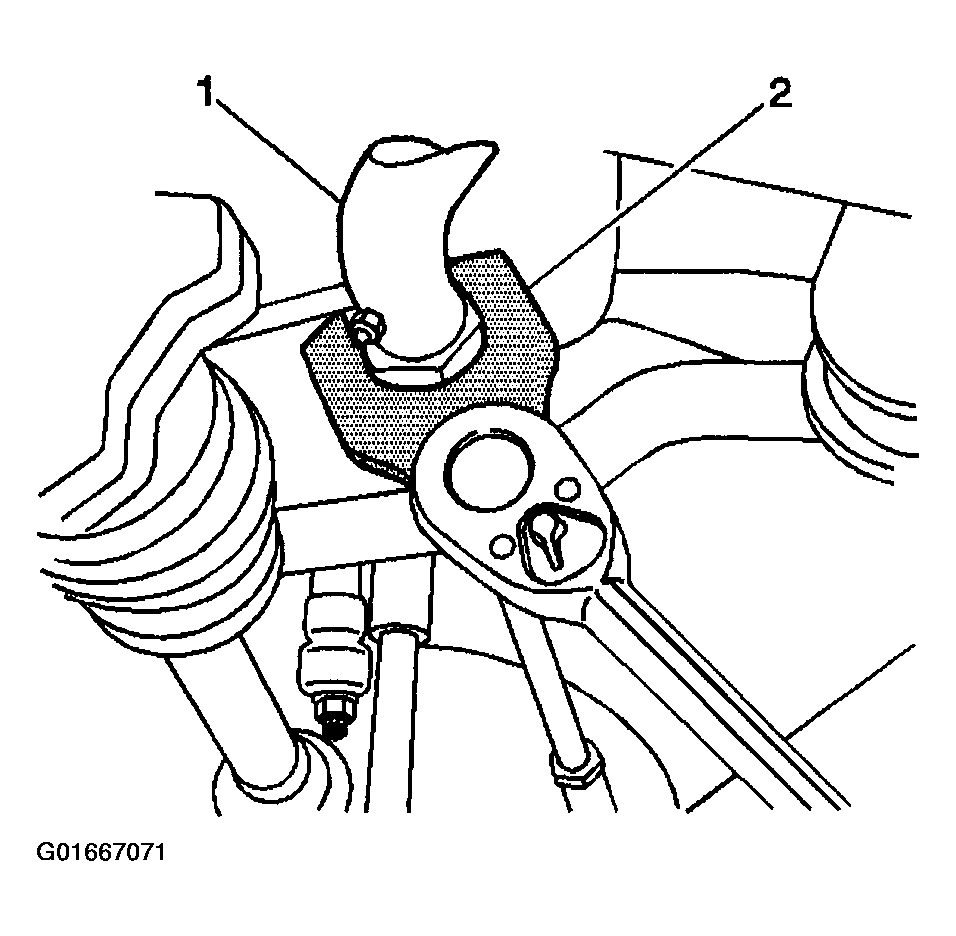

    5. Fig 1: Removing Inner Tire Rod End
    G01667071Courtesy of GENERAL MOTORS CORP.
