Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Perform the following procedure before installing the new tie rod ends:

Remove all traces of the oil, grease, or other contaminants.
Clean the threads of the tie rod with denatured alcohol or the equivalent and allow to dry.
Apply red LOCTITE Threadlocker, GM P/N 12345493 (Canadian P/N 10953488) to the threads of the inner tie rod.

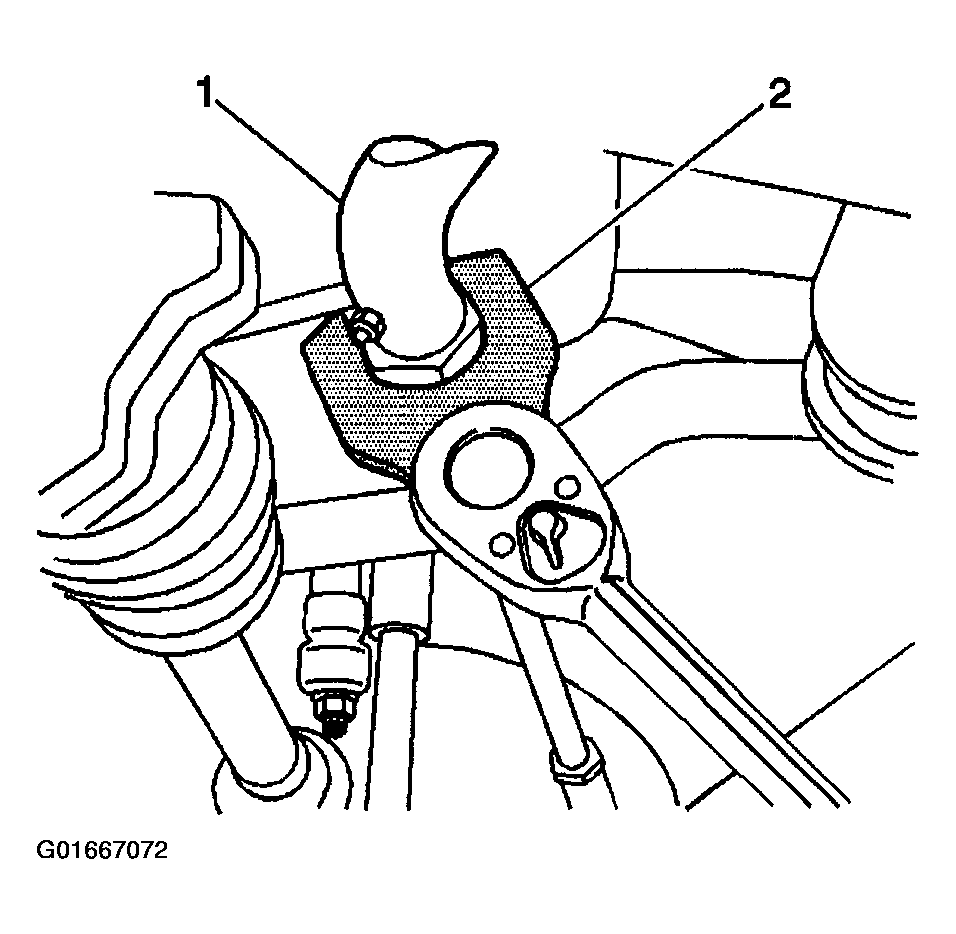

Install the inner tie rod to the relay rod. Using the J 34028 (2) tighten the tie rod to 100 N.m (74 ft lbs).

Fig 1: Tightening Tie Rod Using J 34028
Courtesy of GENERAL MOTORS CORP.
Install the outer tie rod end. Refer to Tie Rod Replacement .
Install the engine protection shield, if equipped.
Lower the vehicle.
Verify the wheel alignment. Refer to SPECIFICATIONS .
