Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with safety stands.
  2. Remove the engine protection shield, if equipped.

    Important:  Do not reuse the nut.

  3. Remove the steering damper (2) ball stud nut (1).

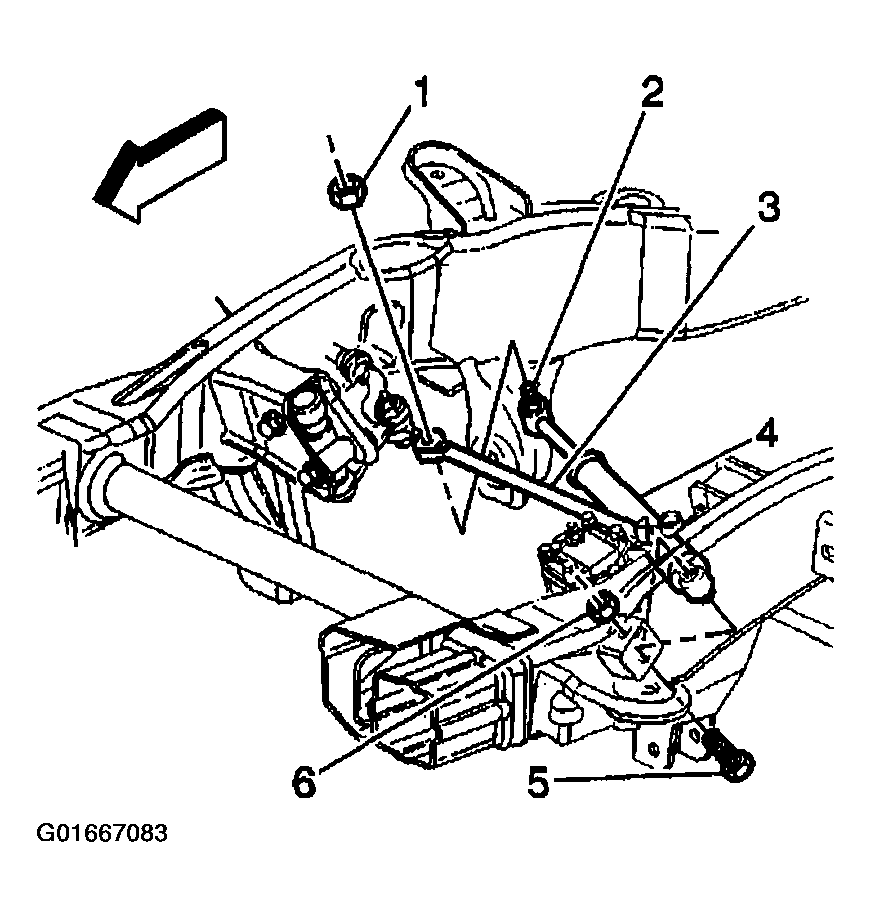

    Fig 1: Steering Damper Components
    G01667083Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering damper ball stud from the relay rod using the J 24319-B.

    Important:  Do not reuse the nut.

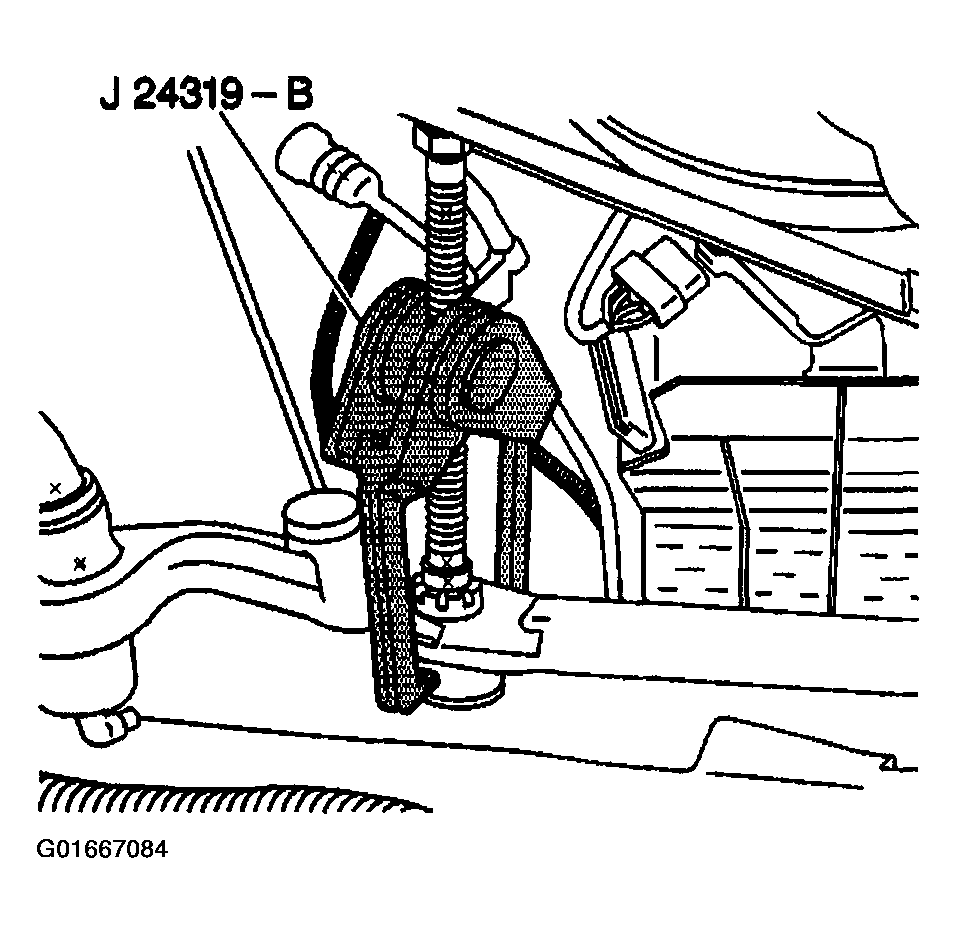

    5. Fig 2: Removing Steering Damper Ball Stud
    G01667084Courtesy of GENERAL MOTORS CORP.
  5. Remove the steering damper mounting bolt (5) and the nut (6).
  6. Remove the steering damper (4) from the vehicle.
  7. Inspect the following parts:
    • The steering damper for leaks and damage.
    • The mounting bolts and the nuts for damage or corrosion.
