Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pitman arm on the pitman shaft.
  2. Align the marks made at removal.
  3. Install the pitman arm washer and the pitman arm nut (8). Tighten the pitman arm nut to 250 N.m (184 ft lbs).
  4. Install the relay rod (9) to the pitman arm ball stud. Ensure the seal is on the pitman arm ball stud.
  5. Install the J 29193  . Tighten the J 29193  to 54 N.m (40 ft lbs) in order to seat the tapers.

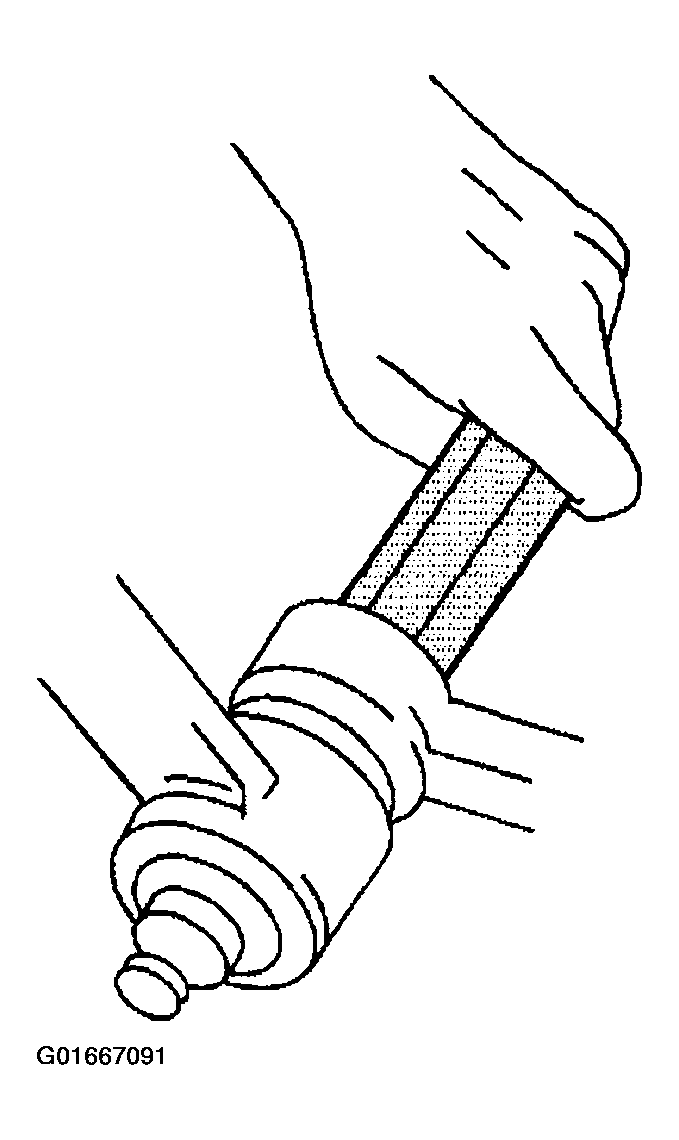

    6. Fig 1: Installing Relay Rod
    G01667091Courtesy of GENERAL MOTORS CORP.
  6. Remove the J 29193  .
  7. Install the new prevailing torque nut. Tighten the new prevailing torque not to 62 N.m (46 ft lbs).
  8. Install the engine protection shield, if equipped.
  9. Lower the vehicle.
