Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not attempt to free the ball stud by using a pickle fork or wedge type tool, because seal or bushing damage could result. Use the proper tool to separate all ball joints.
  1. Raise the vehicle.
  2. Remove the engine protection shield, if equipped.
  3. Remove the idler arm ball stud nut (10). Do not reuse the idler arm ball stud nut.

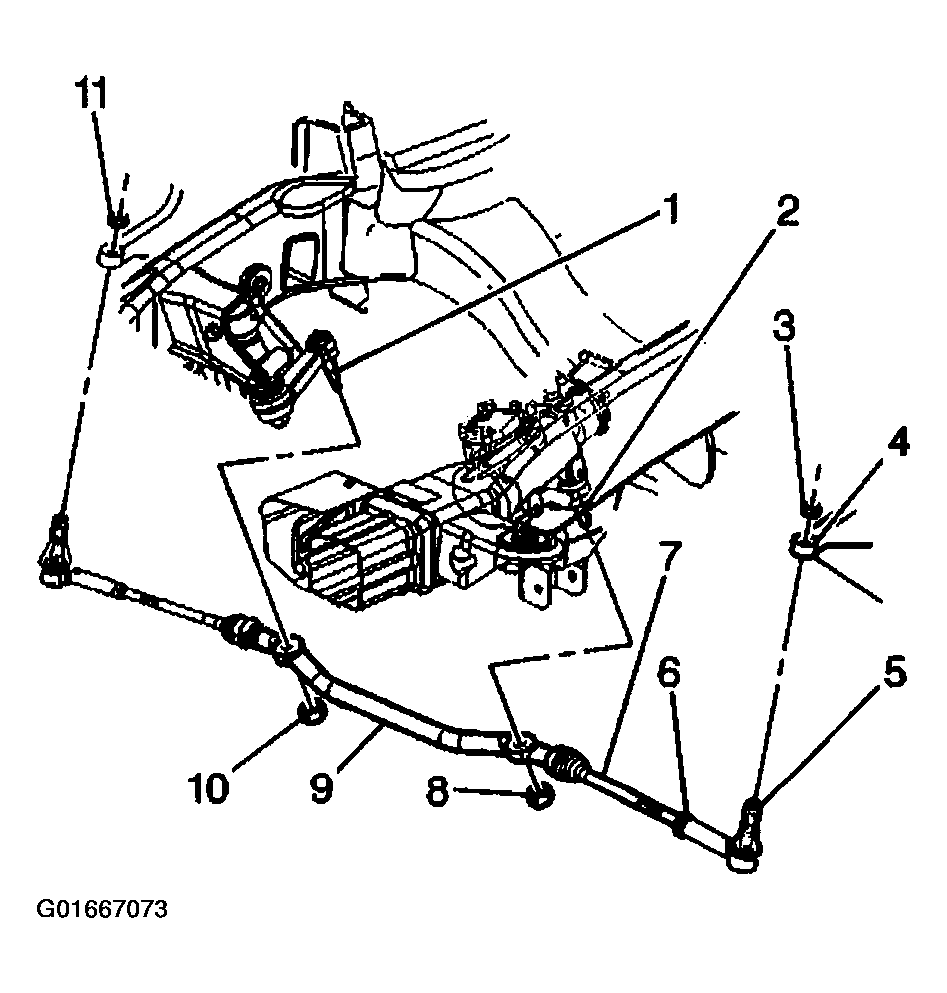

    4. Fig 1: Steering Linkage Components
    G01667073Courtesy of GENERAL MOTORS CORP.
  4. Remove the idler arm from the relay rod using the J 24319-B  .

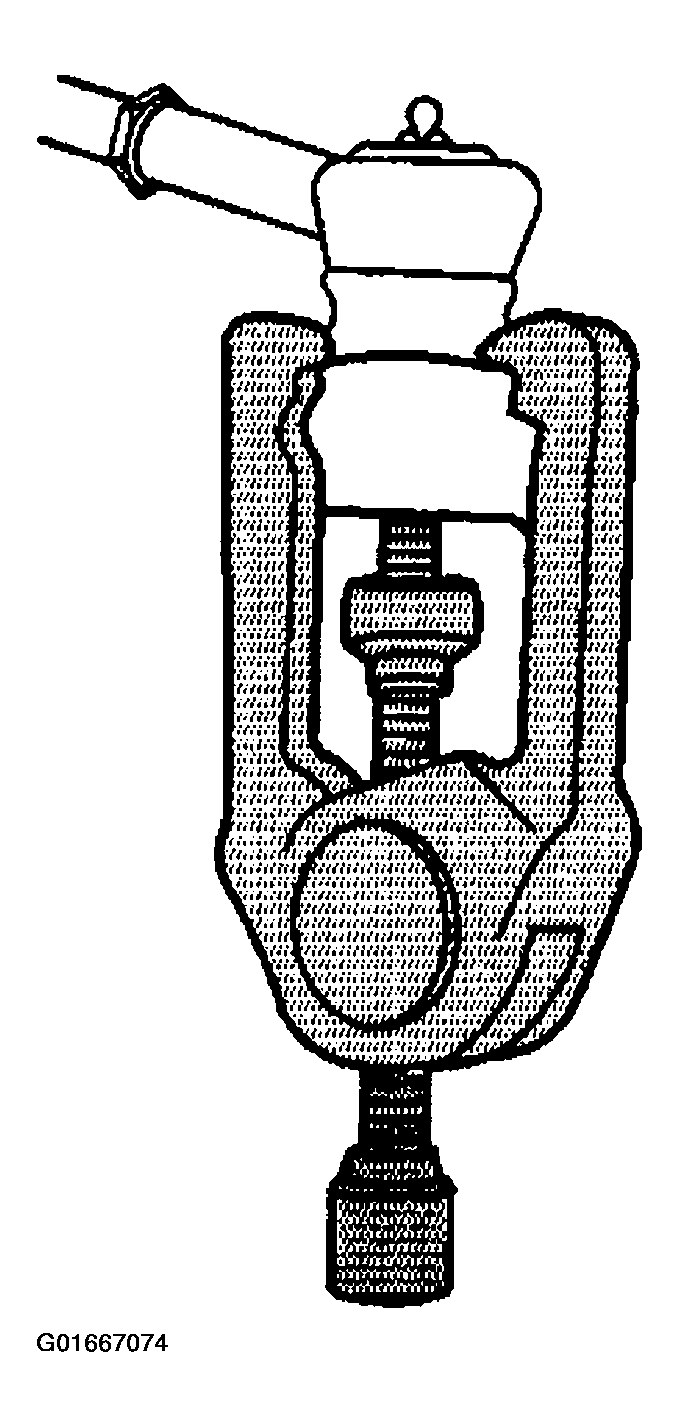

    Fig 2: Removing Idler Arm From Relay Rod
    G01667074Courtesy of GENERAL MOTORS CORP.
  5. Remove the idler arm frame bolts (3) and the nuts (1).
  6. Remove the idler arm (2) from the vehicle.

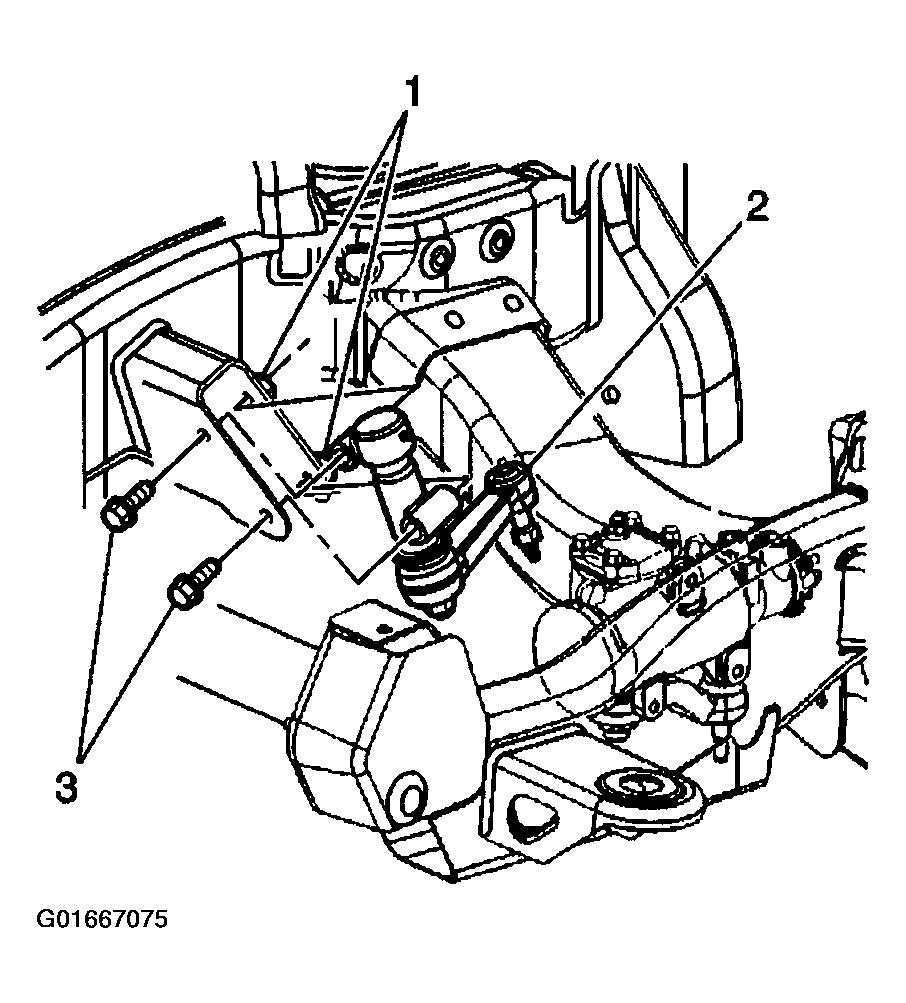

    Fig 3: Idler Arm Frame Bolts & Nuts
    G01667075Courtesy of GENERAL MOTORS CORP.
