Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands.
  2. Remove the tire and wheel assembly.
  3. Remove the torque prevailing nut from outer tie rod stud.

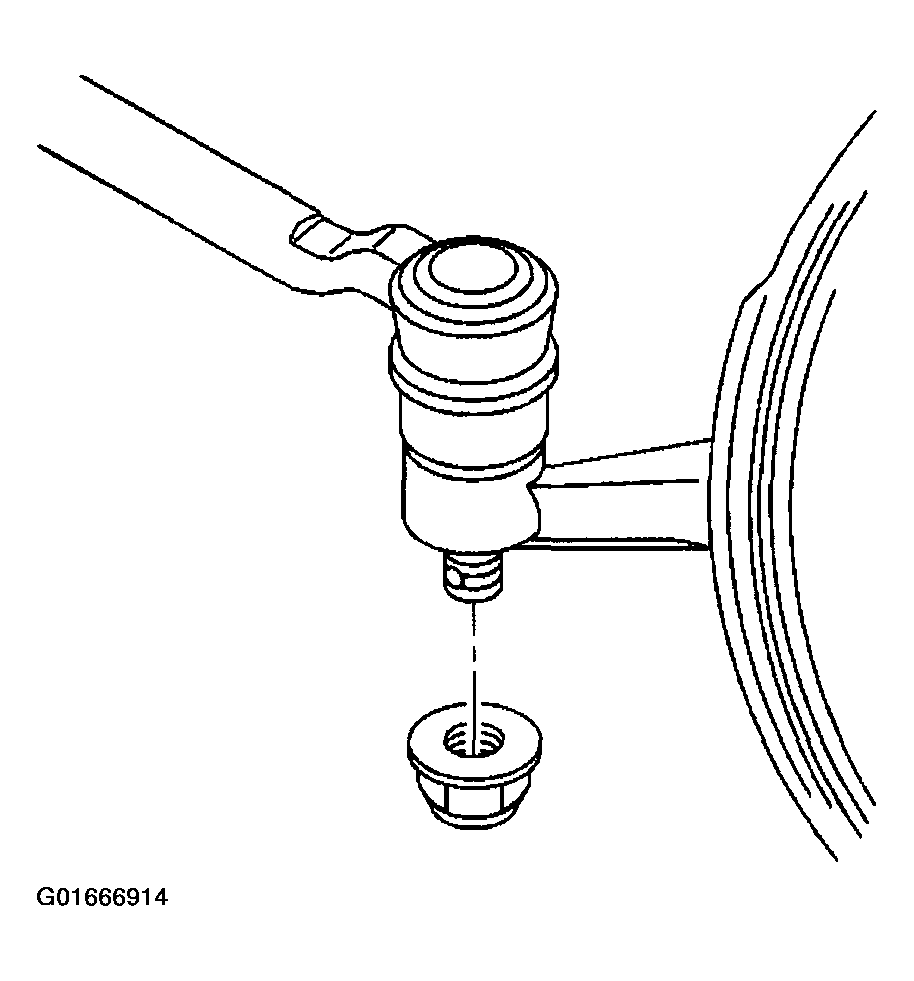

    Fig 1: Outer Tie Rod
    G01666914Courtesy of GENERAL MOTORS CORP.
  4. Loosen the jam nut (2) on the inner tie rod assembly (1).
    Fig 2: Inner Tie Rod Assembly Jam Nut
    G01666915Courtesy of GENERAL MOTORS CORP.
  5. Remove the outer tie rod assembly (2) from the steering knuckle (1) using J 24319-01  .

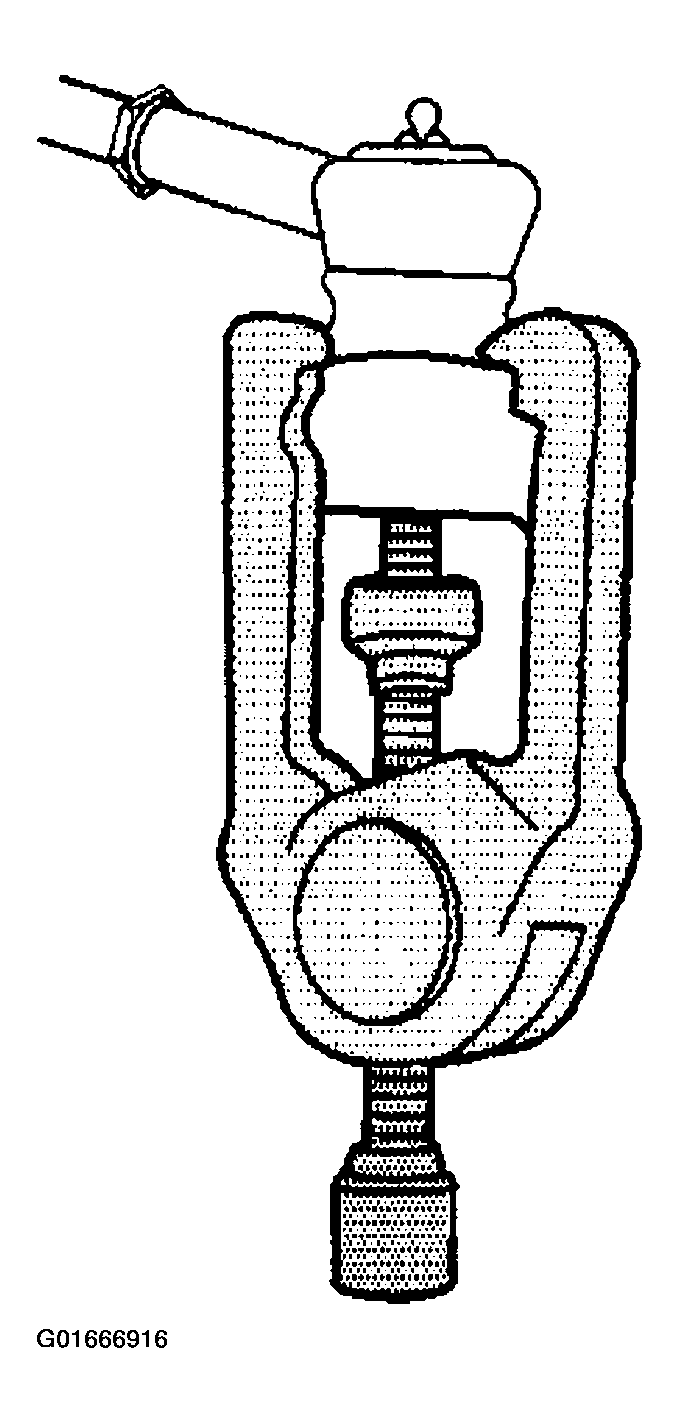

    Fig 3: Removing Outer Tie Rod Assembly From Steering Knuckle
    G01666916Courtesy of GENERAL MOTORS CORP.
  6. Remove the outer tie rod assembly (3) from the inner tie rod assembly (1).
    Fig 4: Removing Outer Tie Rod Assembly From Inner Tie Rod Assembly
    G01666917Courtesy of GENERAL MOTORS CORP.
