Disassembly Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Replace the housing if the stub shaft housing, seal or bearing are damaged.

Remove the stub shaft housing bolts (4) from the stub shaft housing (3).

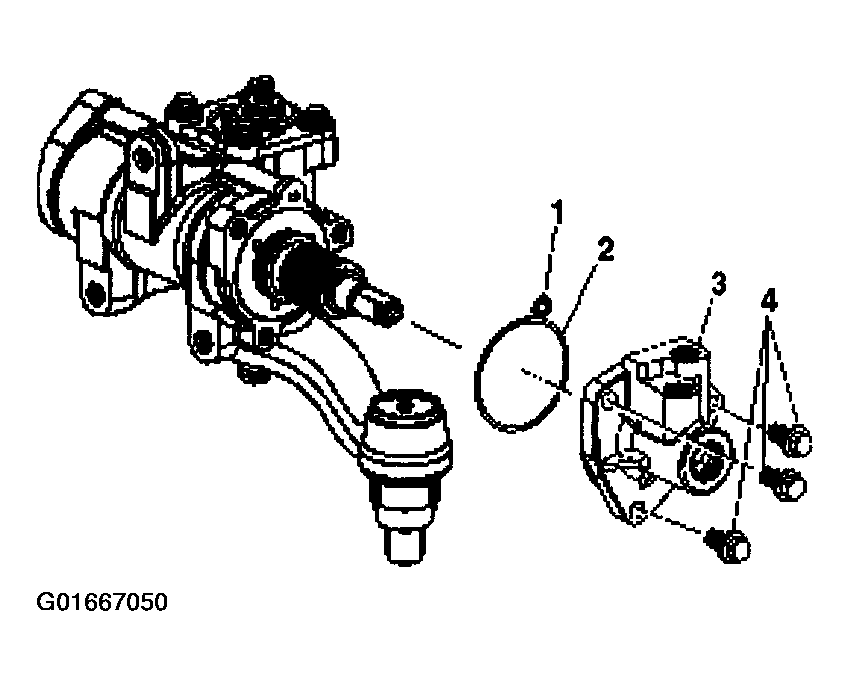

Fig 1: Stub Shaft Housing & Components

Courtesy of GENERAL MOTORS CORP.

Remove the stub shaft housing (3) from the steering gear.
Remove the stub shaft housing O-rings (1) (2) from the steering gear.
