Disassembly Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the stub shaft back and forth to drain the fluid.
  2. Insert a punch into the housing access hole to unseat the retaining ring (1)
  3. Remove the plug (2).
  4. Remove the O-ring seal (3).

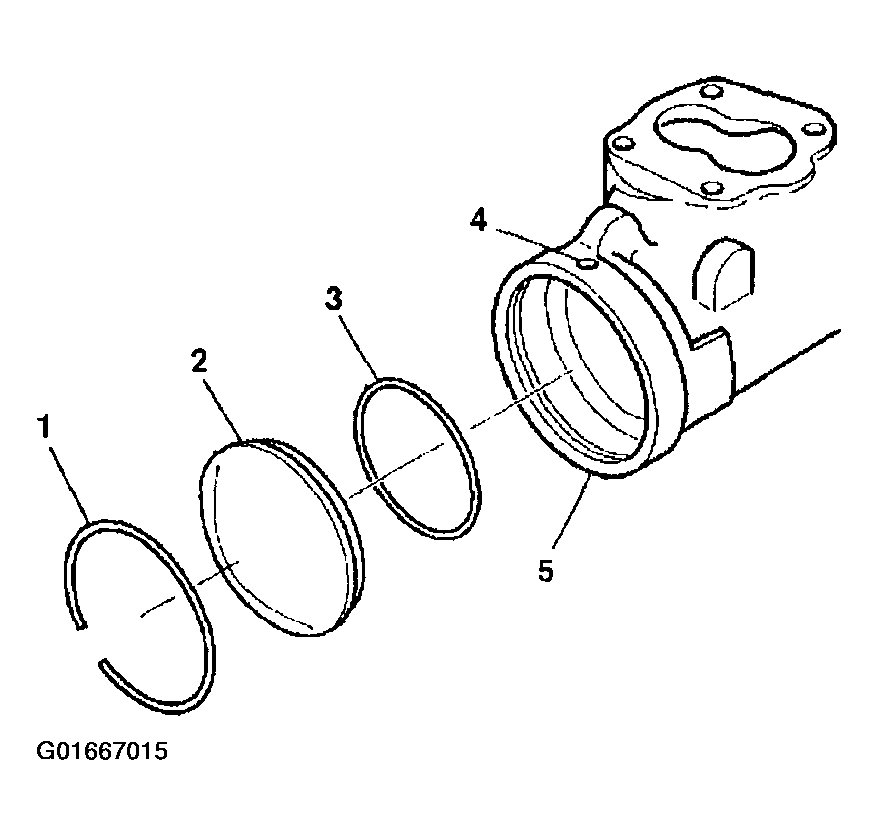

    Fig 1: Steering Gear Housing Retaining Ring, Plug & O-Ring Seal
    G01667015Courtesy of GENERAL MOTORS CORP.
