Assembly Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

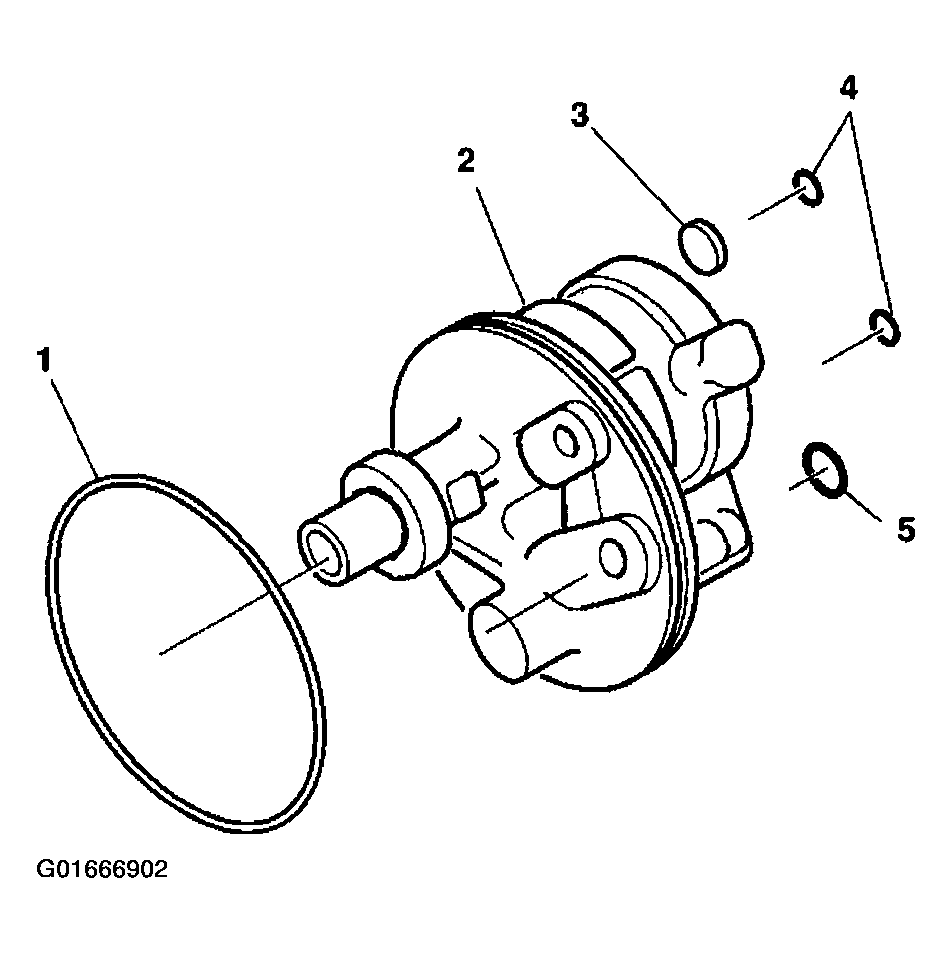

Important: Use new O-ring seals when assembling the power steering pump assembly.

Lubricate the O-ring seals (1) (4) with power steering fluid.
To install the control valve assembly and flow control spring to the pump housing assembly (2). Refer to Power Steering Pump Flow Control Valve Replacement - Off Vehicle (Regular) .
Install the O-ring seals (1) (4) to the pump housing assembly (2).
Install the magnet (3) to the pump housing assembly (2).

Fig 1: Power Steering Pump Components
Courtesy of GENERAL MOTORS CORP.
Connect the reservoir assembly (1) to the pump housing assembly (2).
Install the O-ring seal.
Install the connector and fitting assembly (5). To install the variable assist steering actuator (3) and retaining ring (4). Refer to Power Steering Pump Flow Control Valve Actuator Replacement - On Vehicle .
Install the pump mounting studs (2) to the pump housing (1). Tighten the pump mounting studs (2) to 58 N.m (43 ft lbs). Tighten the connector and fitting assembly (5) to 75 N.m (55 ft lbs).
