Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  3. Remove the bolt retaining the battery junction block from the power steering bracket.

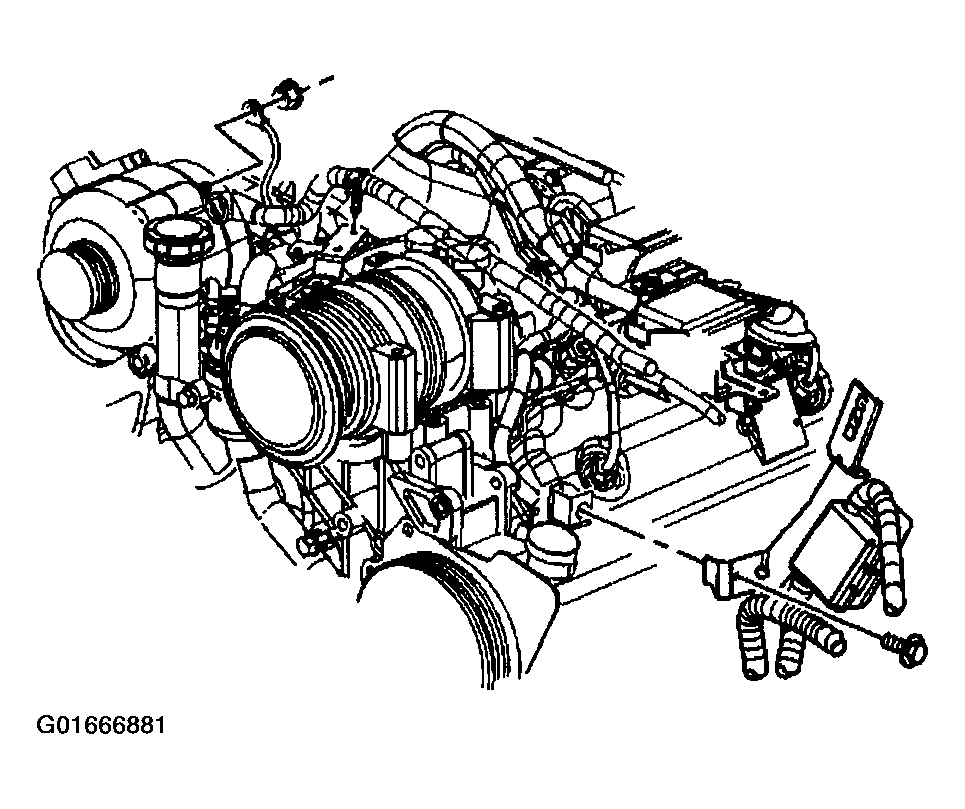

    Fig 1: Battery Junction Block At Power Steering Bracket
    G01666881Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (1) from the rear of the pump.

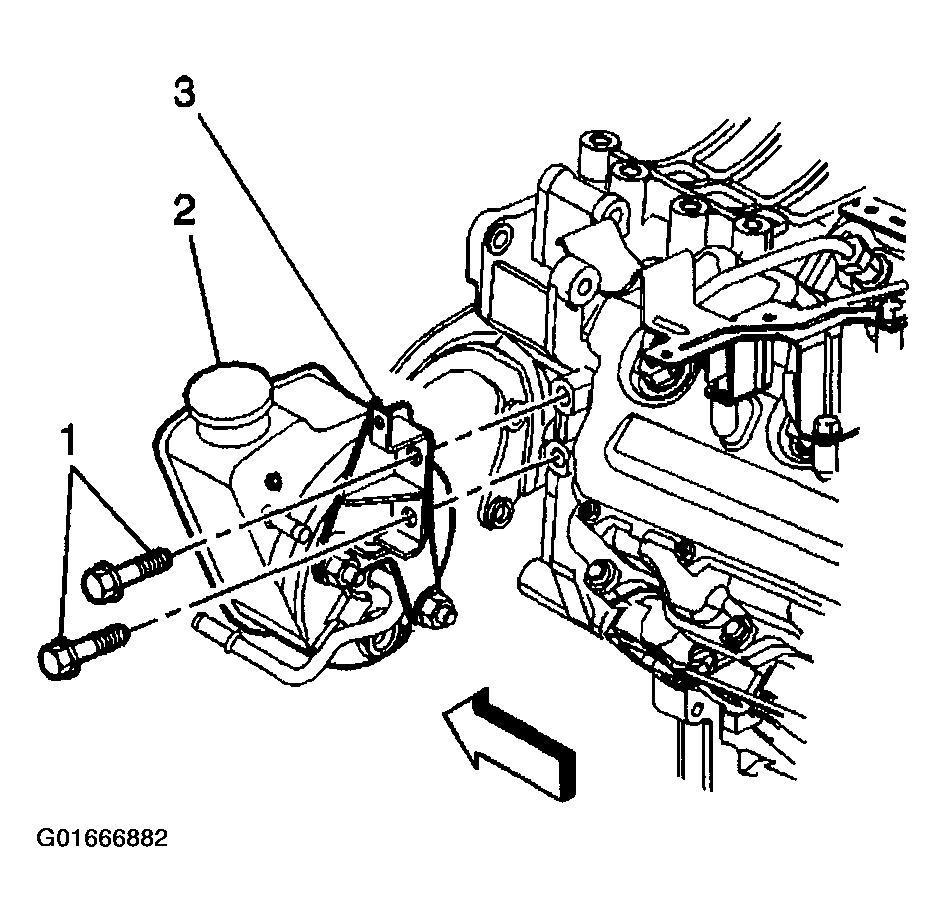

    Fig 2: Bolts At Rear Of Power Steering Pump
    G01666882Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts (2) from the front of the pump.
  6. Remove the power steering pump mounting bracket retaining bolts to gain access to the power steering hoses.
  7. Remove the power steering hoses from the pump.
  8. Remove the pump (1) from the vehicle.
  9. Remove the rear bracket from the power steering pump.

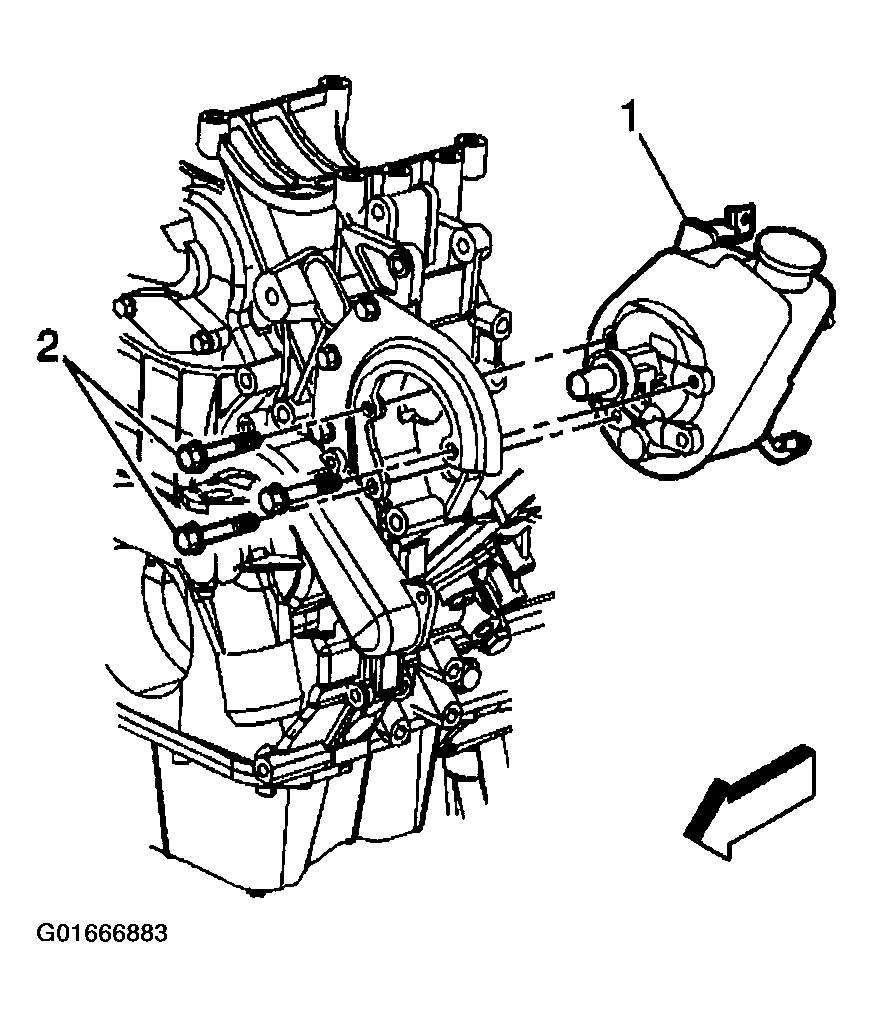

    Fig 3: Rear Bracket
    G01666883Courtesy of GENERAL MOTORS CORP.
