Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bracket (3) to the rear of the pump (1). Tighten the rear bracket retaining nuts to 50 N.m (37 ft lbs).
  2. Install the pump.
  3. Install the hose guide bracket bolt to the pump.
  4. Install the bolt retaining the rear bracket to the engine.
  5. Install the bolts to the front of the pump. Tighten the bolts to 50 N.m (37 ft lbs).
  6. For vehicles with variable effort steering, connect the electrical connector.
  7. Install the hoses to the pump. Tighten the nut to 28 N.m (20 ft lbs).

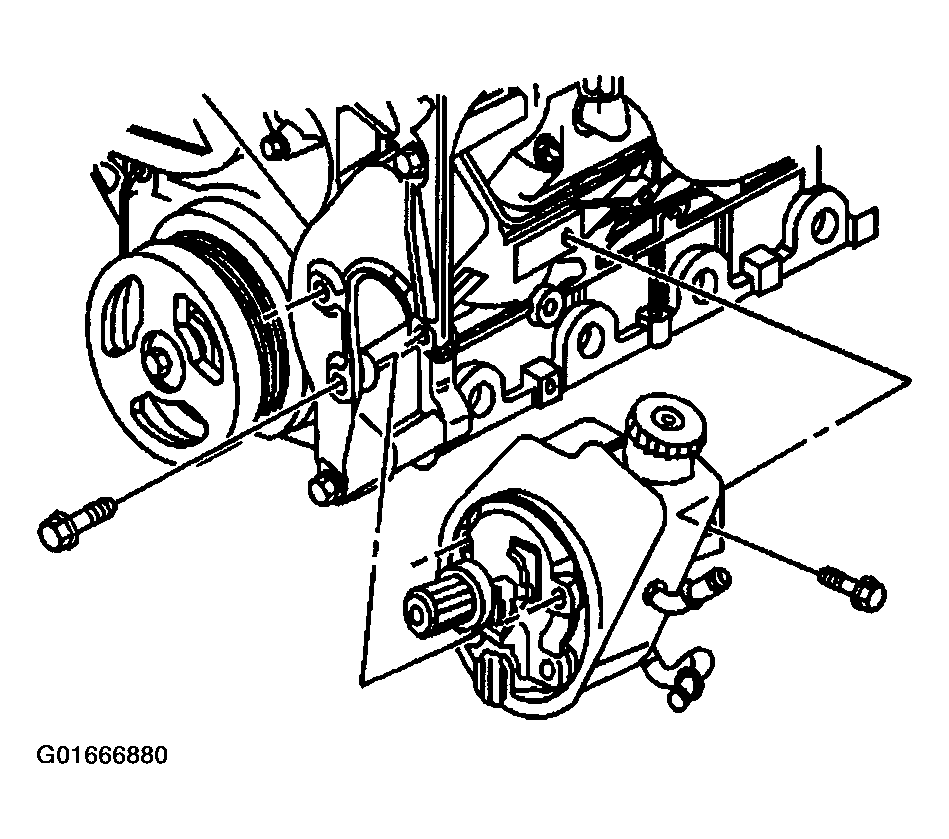

    Fig 1: Power Steering Pump Assembly
    G01666880Courtesy of GENERAL MOTORS CORP.
  8. Install the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER .
  9. Install the power steering pulley. Refer to Power Steering Pulley Replacement .
  10. Fill and bleed the power steering system. Refer to Bleeding Power Steering System .
