Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the pump.
  2. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  3. Remove the pressure and return hoses from the pump.
  4. Remove the nut from the rear of the pump.

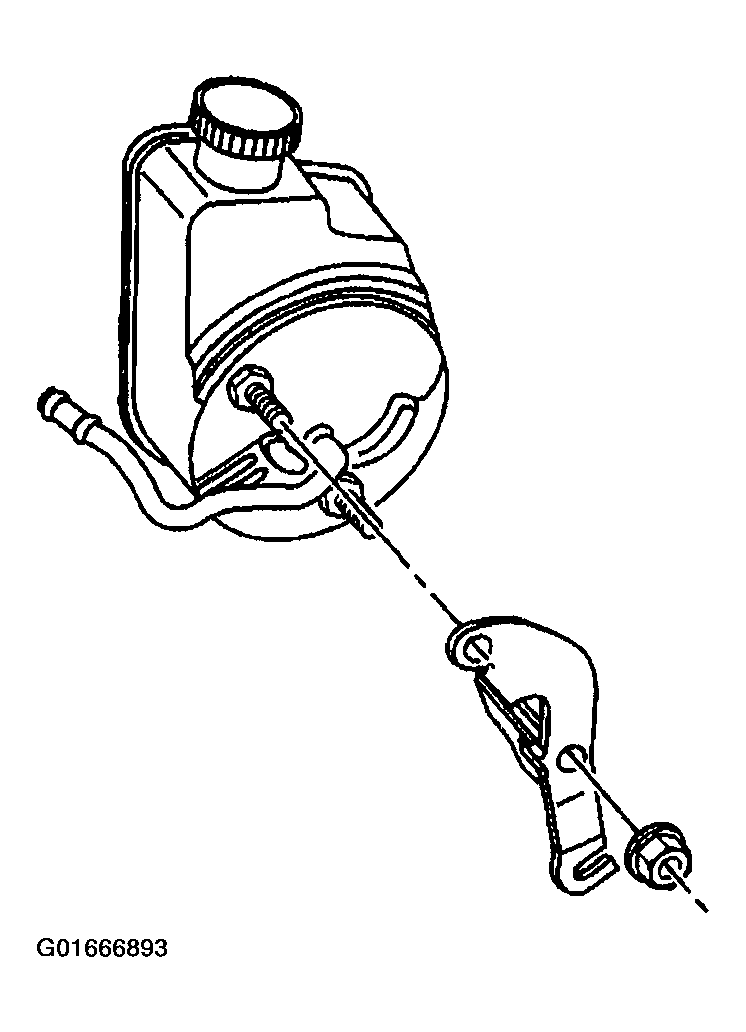

    Fig 1: Power Steering Pump Rear Bracket
    G01666893Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining bolts from the front of the pump.

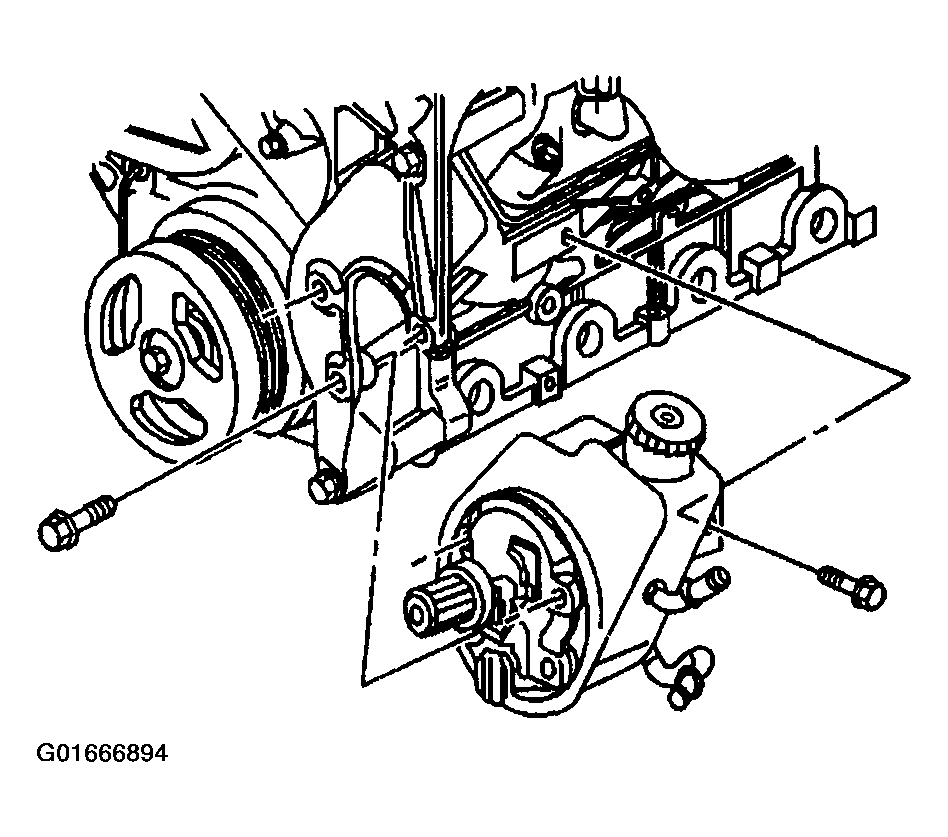

    Fig 2: Power Steering Pump Assembly
    G01666894Courtesy of GENERAL MOTORS CORP.
  6. Remove the accessory mounting bracket mounting bolts and nut.
  7. Pull the accessory mounting bracket forward.
  8. Remove the pump from the vehicle.
