Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud.
  2. Remove the drive belt.
  3. Remove the power steering pump pulley using the J 25034-C  .

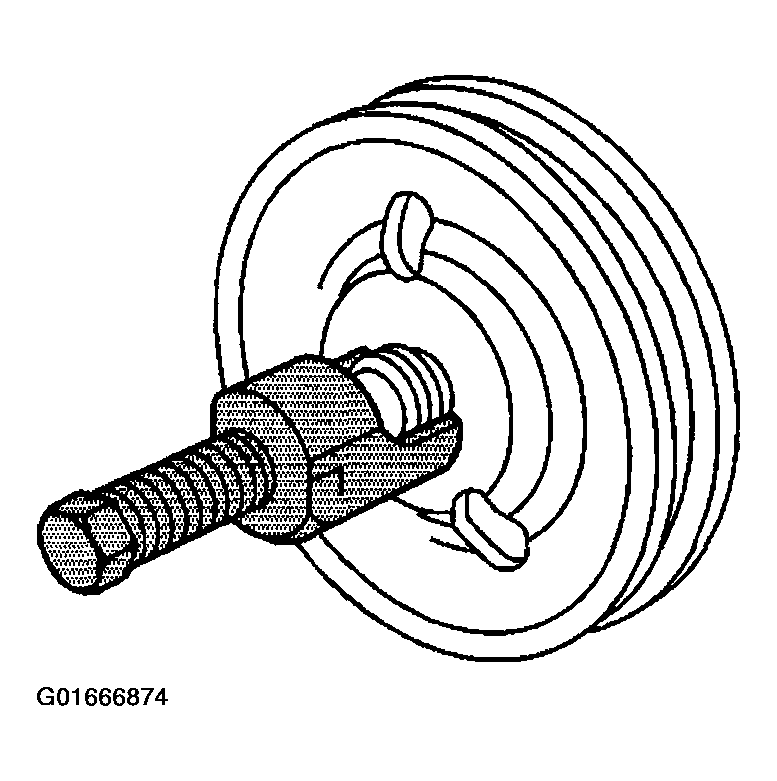

    4. Fig 1: Power Steering Pump Pulley
    G01666874Courtesy of GENERAL MOTORS CORP.
