Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear outlet hose (3) from the steering gear (2).

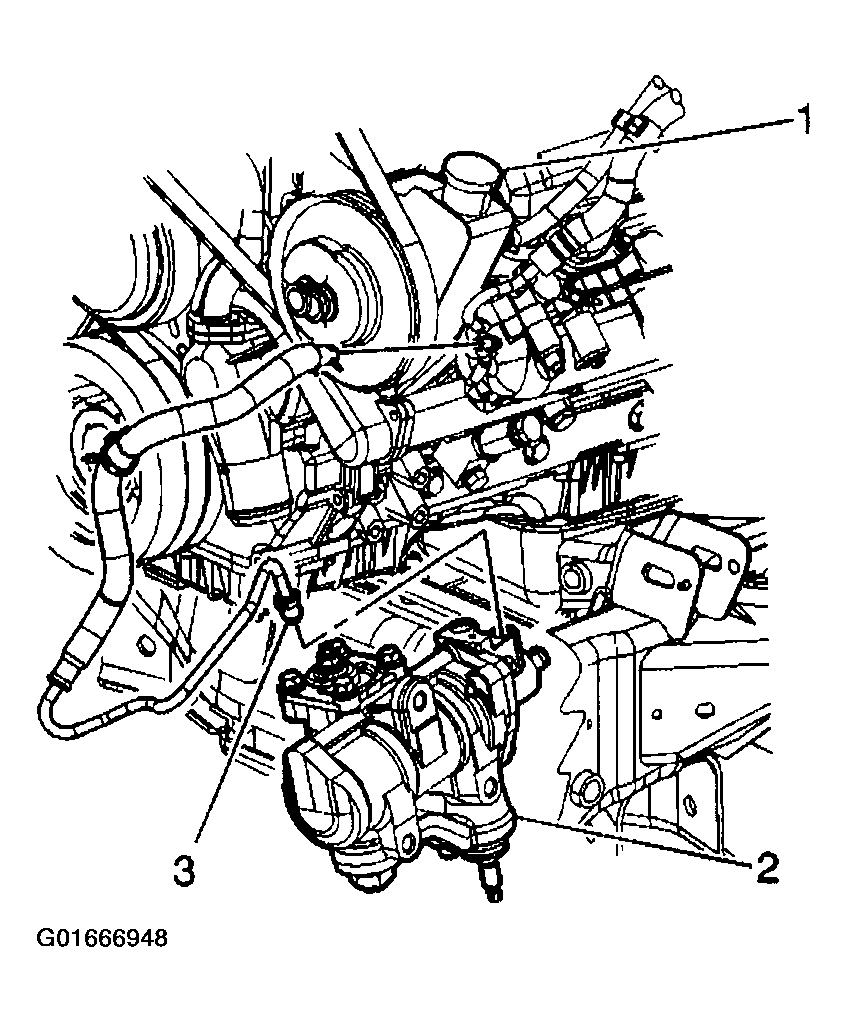

    3. Fig 1: Power Steering Gear Outlet Hose At Steering Gear
    G01666948Courtesy of GENERAL MOTORS CORP.
  3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1). Remove the power steering gear outlet hose from the power steering pump.
  4. Remove the power steering gear outlet hose from the vehicle.
