Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear inlet hose (1) from the brake booster.

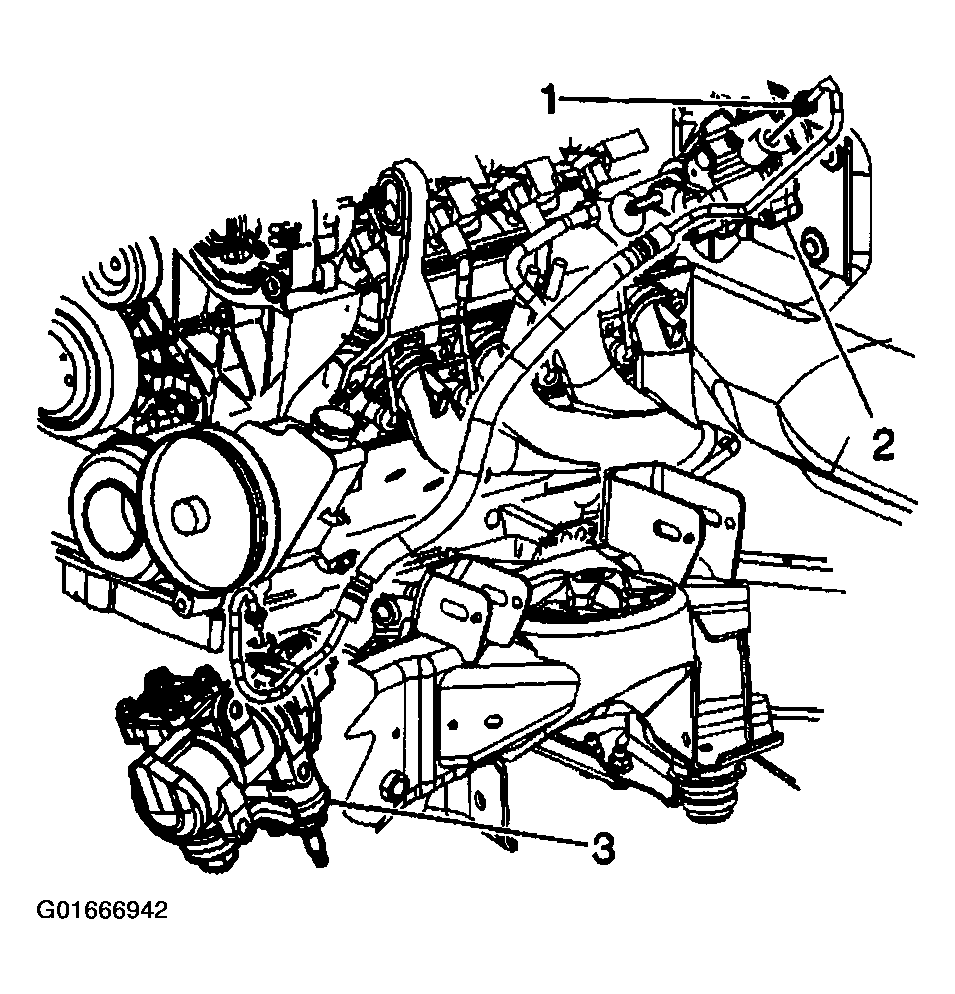

    3. Fig 1: Power Steering Gear Inlet Hose From Brake Booster
    G01666942Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering gear inlet hose from the power steering gear.
  4. Remove the power steering gear inlet hose from the vehicle.
