Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering inlet hose (2) from the power steering pump (1).
  2. Remove the power steering inlet hose (2) from the power steering gear (3).

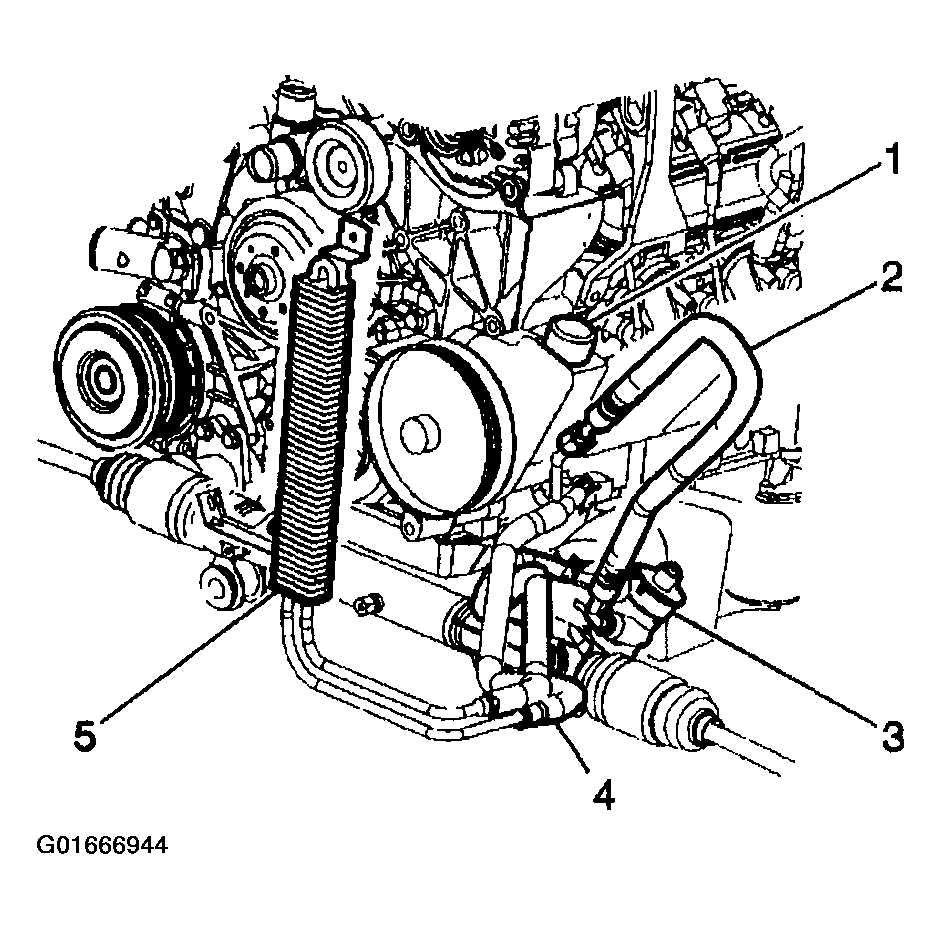

    Fig 1: Power Steering Inlet Hose
    G01666944Courtesy of GENERAL MOTORS CORP.
