Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille.
  2. Remove the clamp retaining the power steering outlet hose (3) from the power steering gear (4).
  3. Remove the clamp retaining the power steering inlet hose from the power steering pump (5).

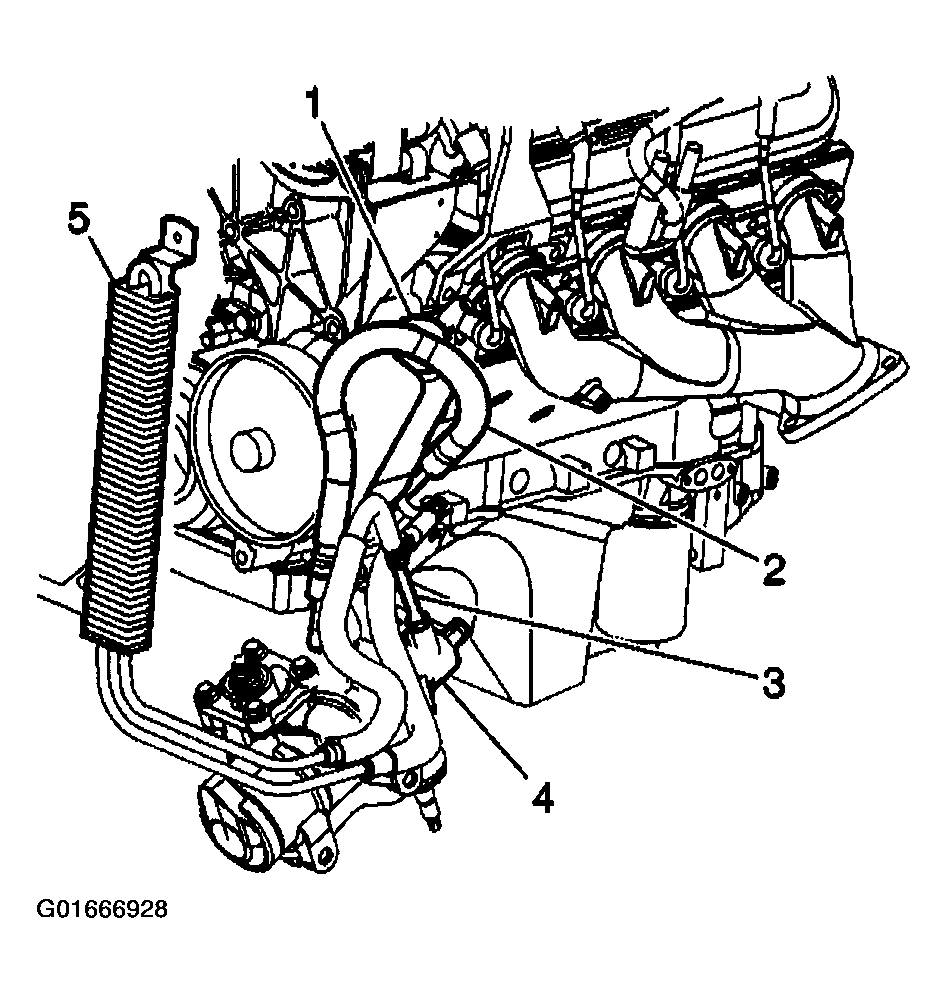

    Fig 1: Power Steering Inlet & Outlet Hoses
    G01666928Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (2) retaining the power steering cooler from the radiator support.
  5. Remove the power steering cooler from the vehicle.

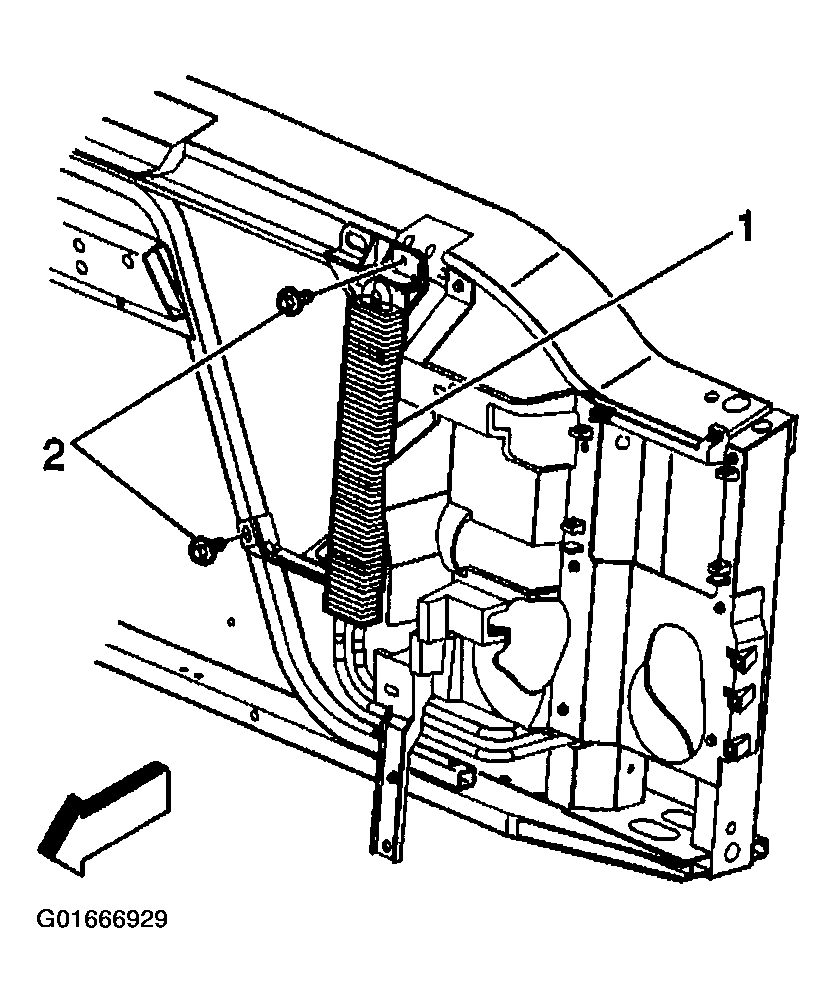

    Fig 2: Power Steering Cooler
    G01666929Courtesy of GENERAL MOTORS CORP.
