Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper grille baffle.

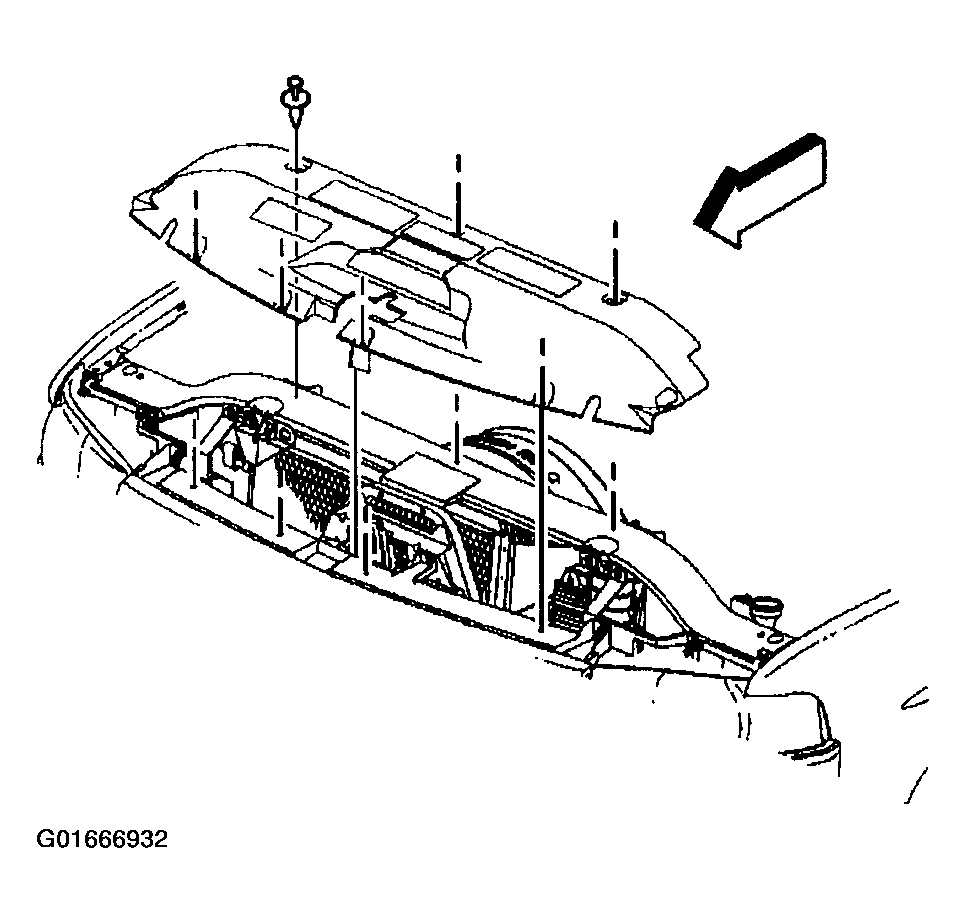

    2. Fig 1: Upper Grille Baffle
    G01666932Courtesy of GENERAL MOTORS CORP.
  2. Remove the front grille.
  3. Remove the power steering outlet hose (4) from the power steering gear (3).
  4. Remove the power steering inlet hose from the power steering pump (1).

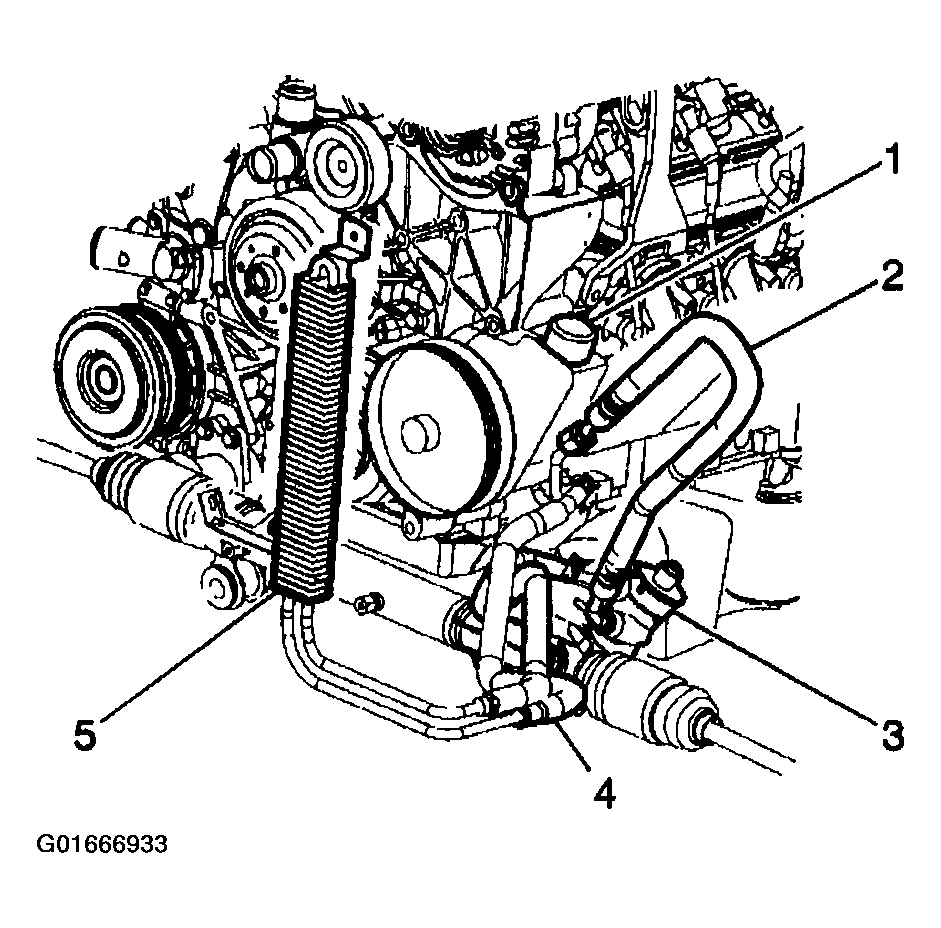

    Fig 2: Identifying Power Steering Components
    G01666933Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts (2) retaining the cooler to the radiator support.
  6. Remove the power steering cooler from the vehicle.

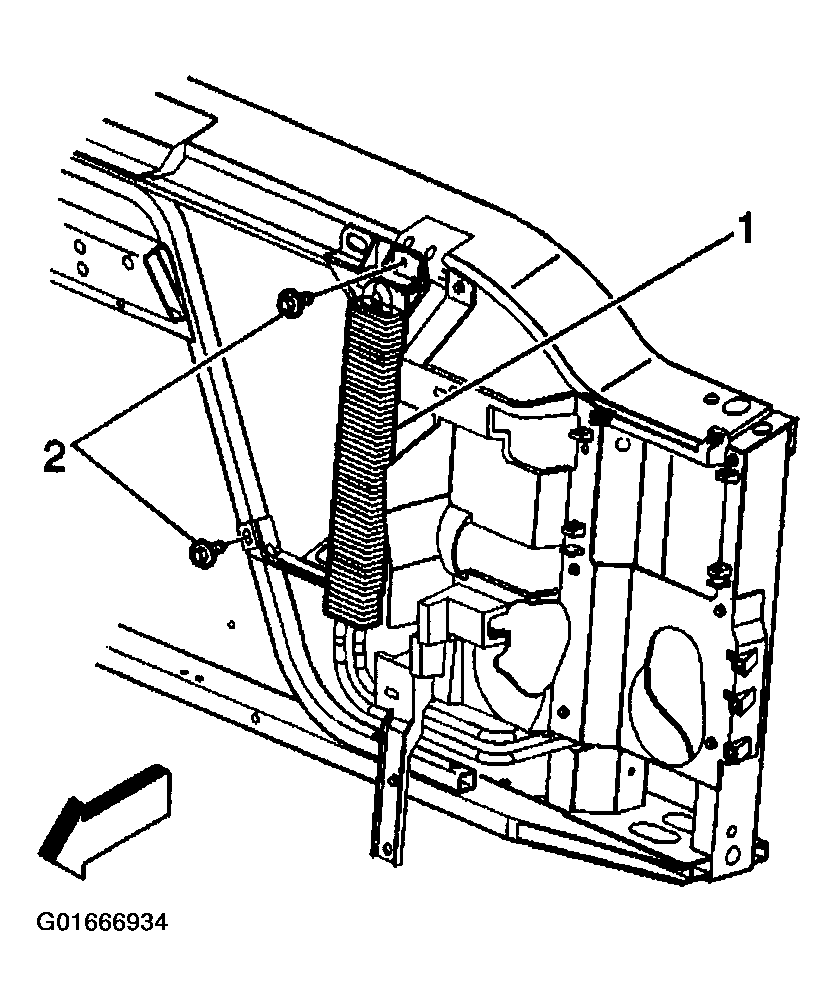

    Fig 3: Power Steering Cooler
    G01666934Courtesy of GENERAL MOTORS CORP.
