Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a drain pan under the vehicle.
  2. Remove the brake booster outlet hose (1) from the brake booster (2).

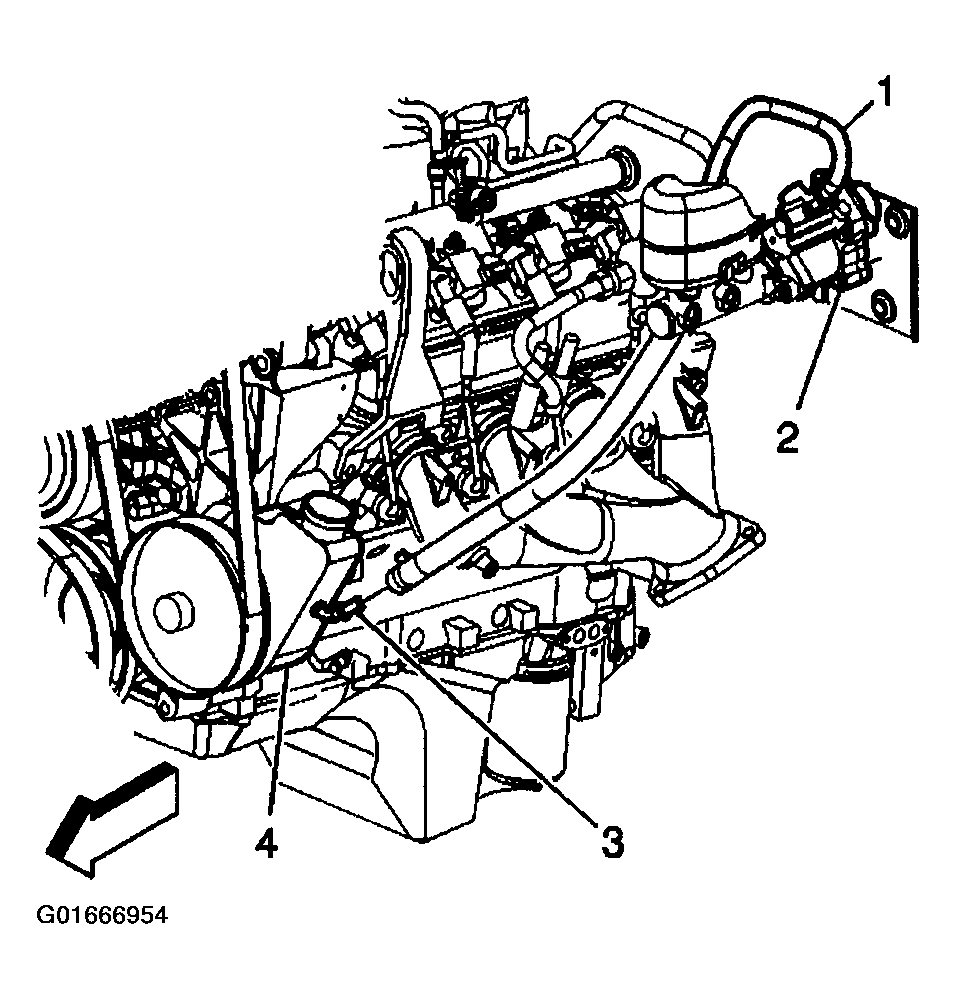

    3. Fig 1: Brake Booster Outlet Hose
    G01666954Courtesy of GENERAL MOTORS CORP.
  3. Remove the clamp retaining the brake booster outlet hose to the power steering pump.
  4. Remove the brake booster outlet hose from the vehicle.
