Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 1.  This step tests for a shorted stoplamp switch.
  2. 2.  This step tests for an open stoplamp switch.

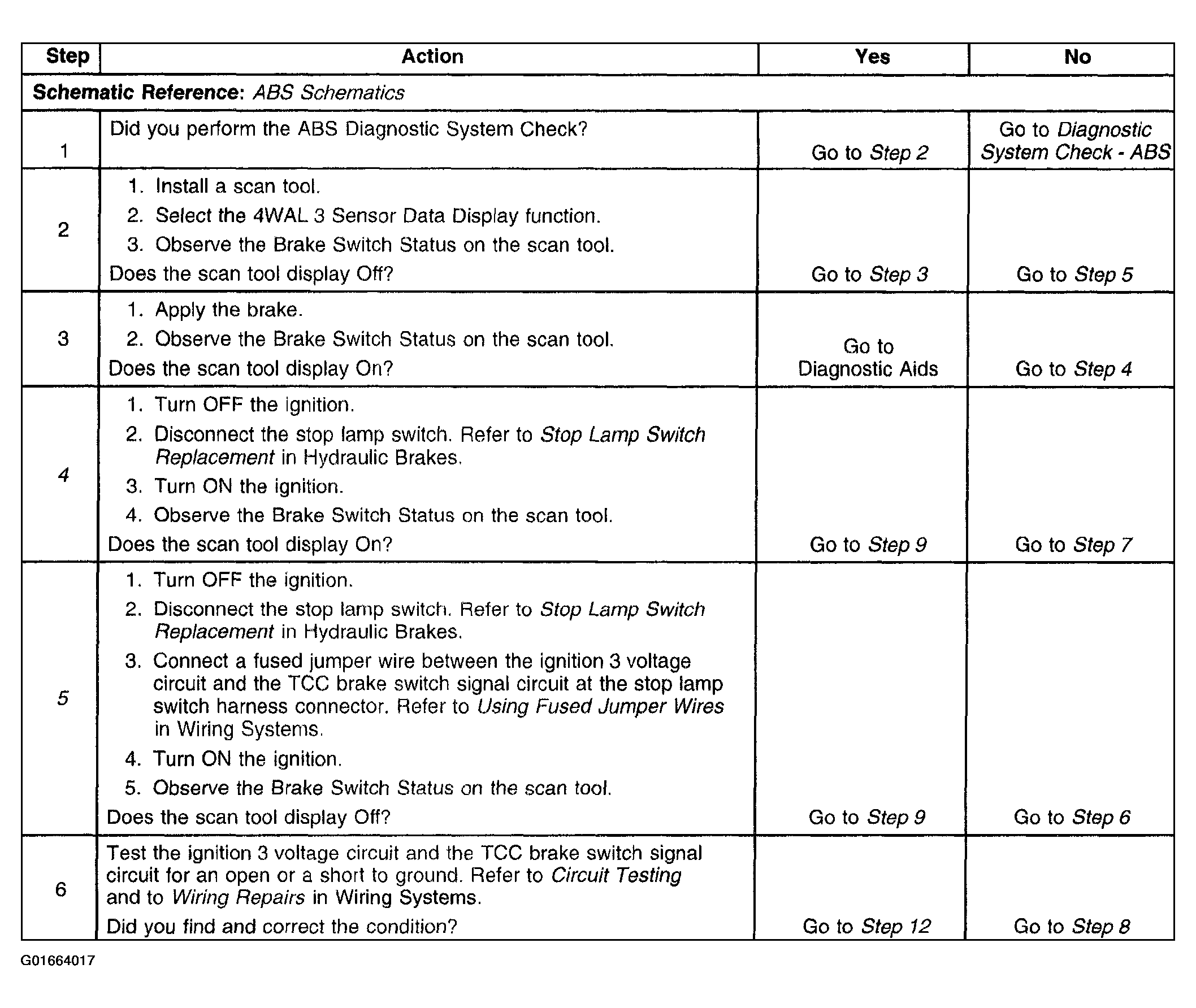

Fig 1: DTC C0281 (1 Of 2)
G01664017Courtesy of GENERAL MOTORS CORP.

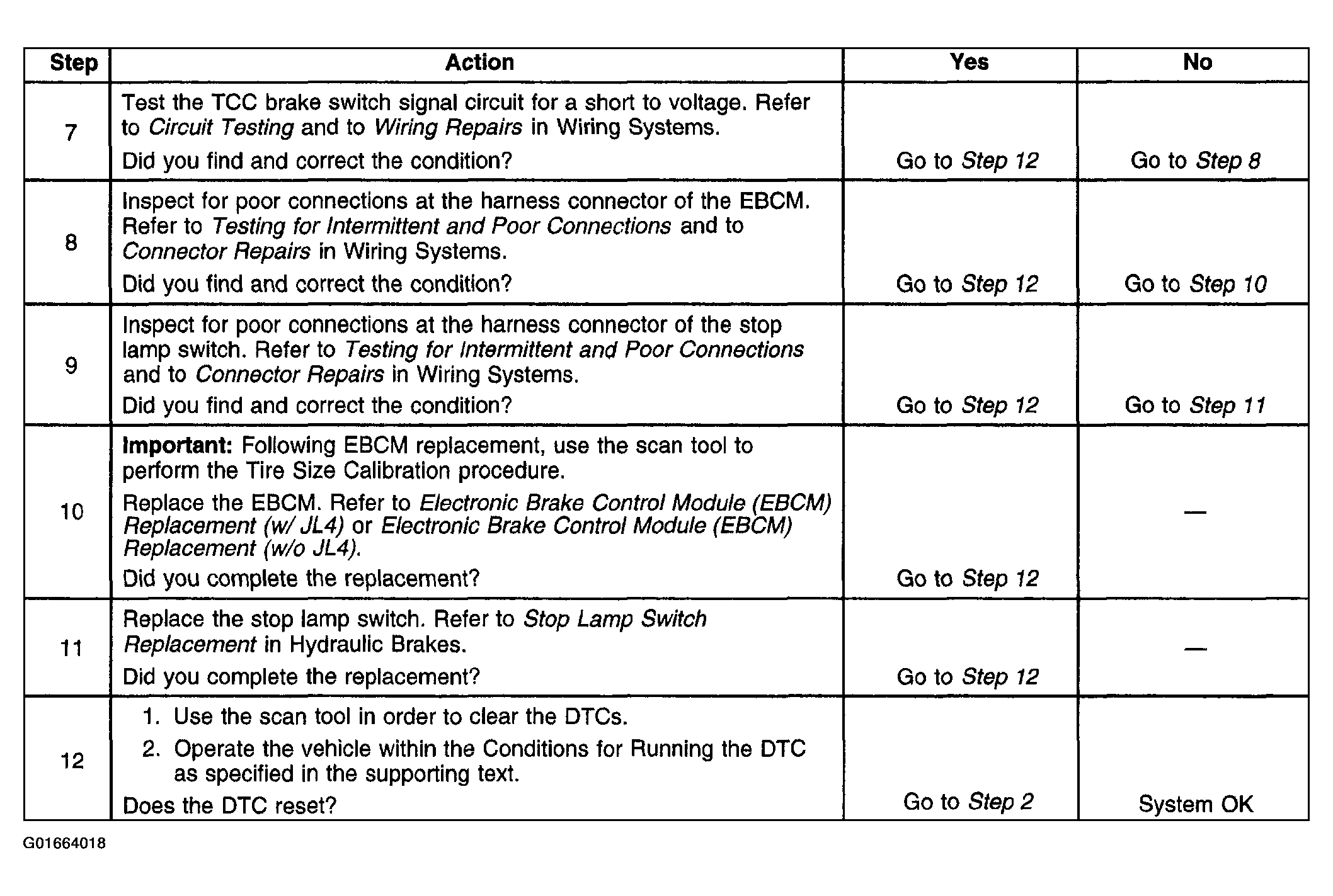

Fig 2: DTC C0281 (2 Of 2)
G01664018Courtesy of GENERAL MOTORS CORP.
