Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2.  Performing solenoid tests determines if there is a mechanical malfunction inside the BPMV. Perform dump valve solenoid tests for DTC C0269 or isolation valve solenoid tests for DTC C0274.

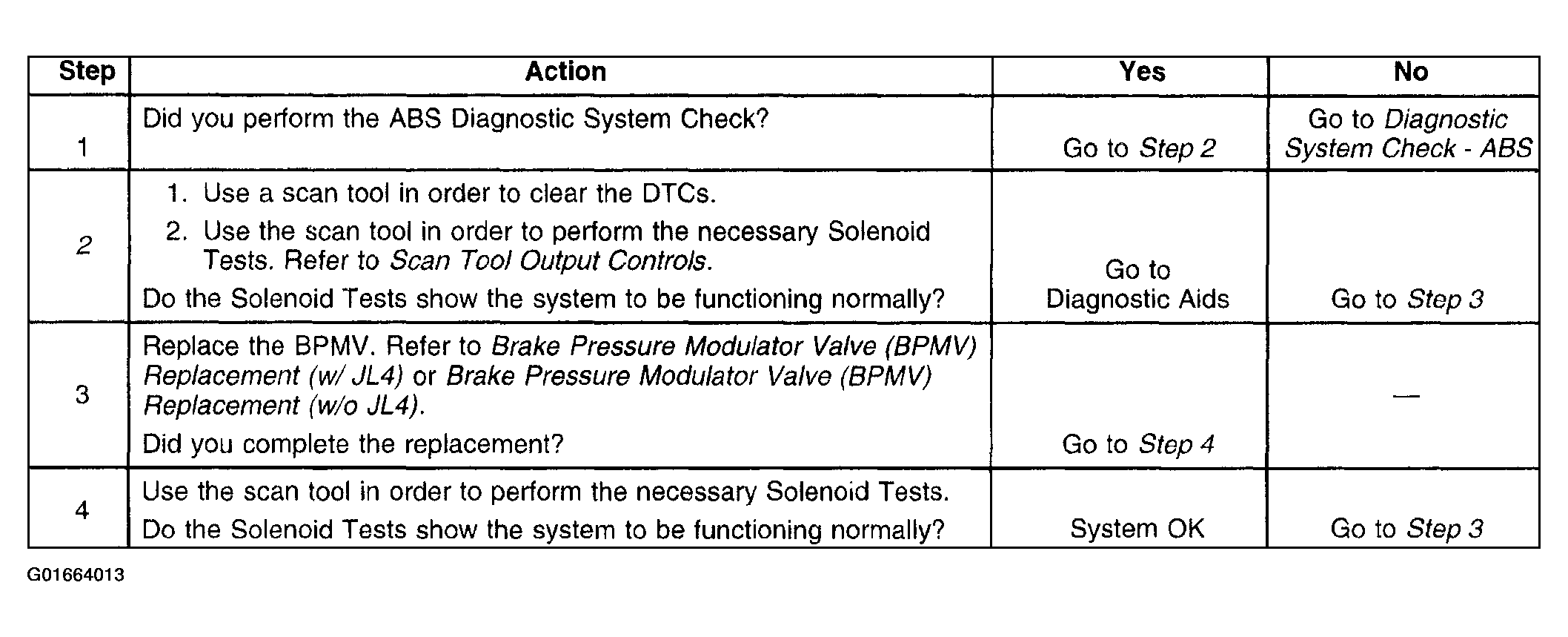

Fig 1: DTC C0269 Or C0274
G01664013Courtesy of GENERAL MOTORS CORP.
