Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

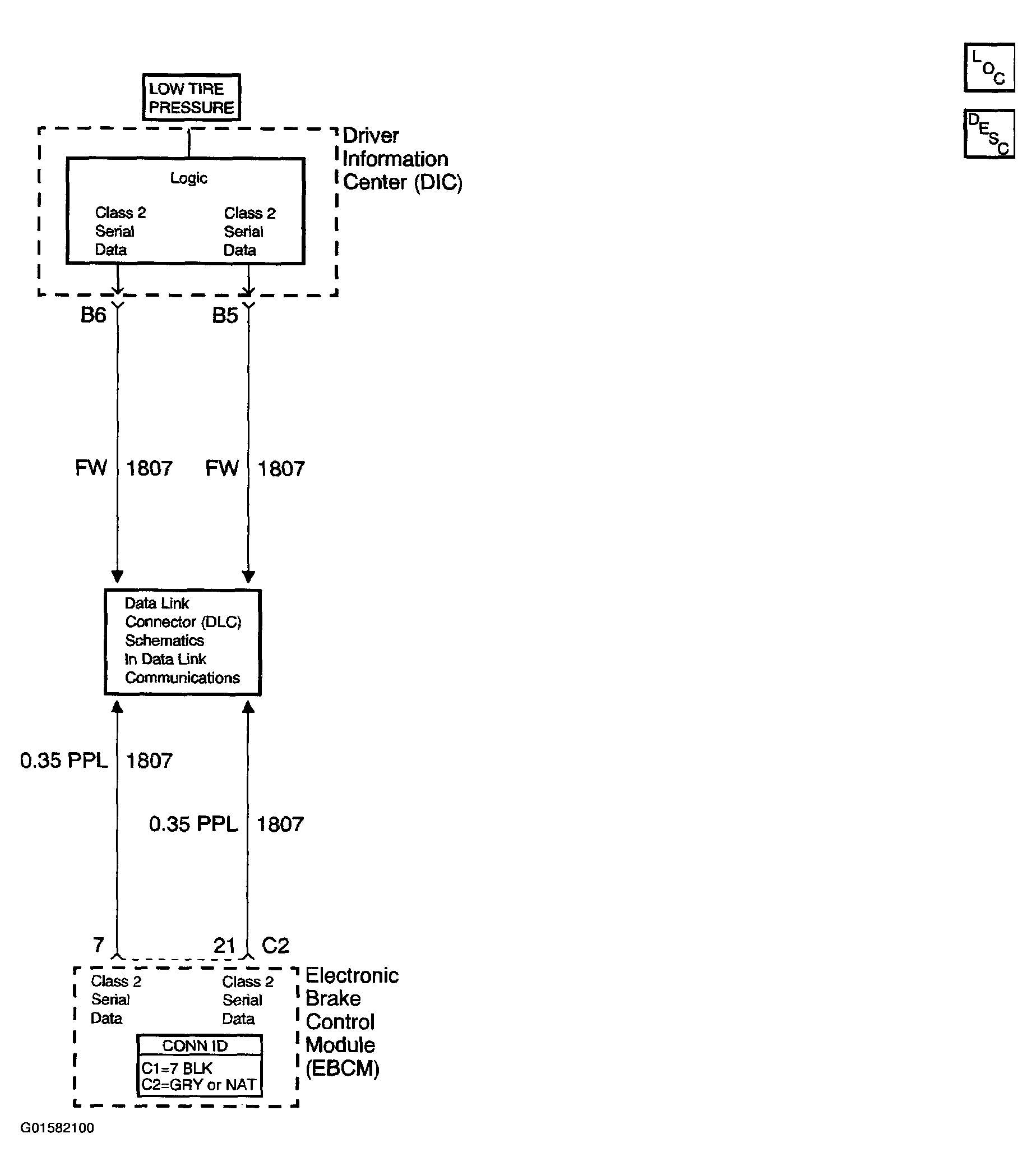

Fig 1: Tire Pressure Monitoring System Schematics

Courtesy of GENERAL MOTORS CORP.
