Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove both rear wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the air tube from the air dryer.
  4. Remove the bolt and the harness tie from the air compressor bracket.

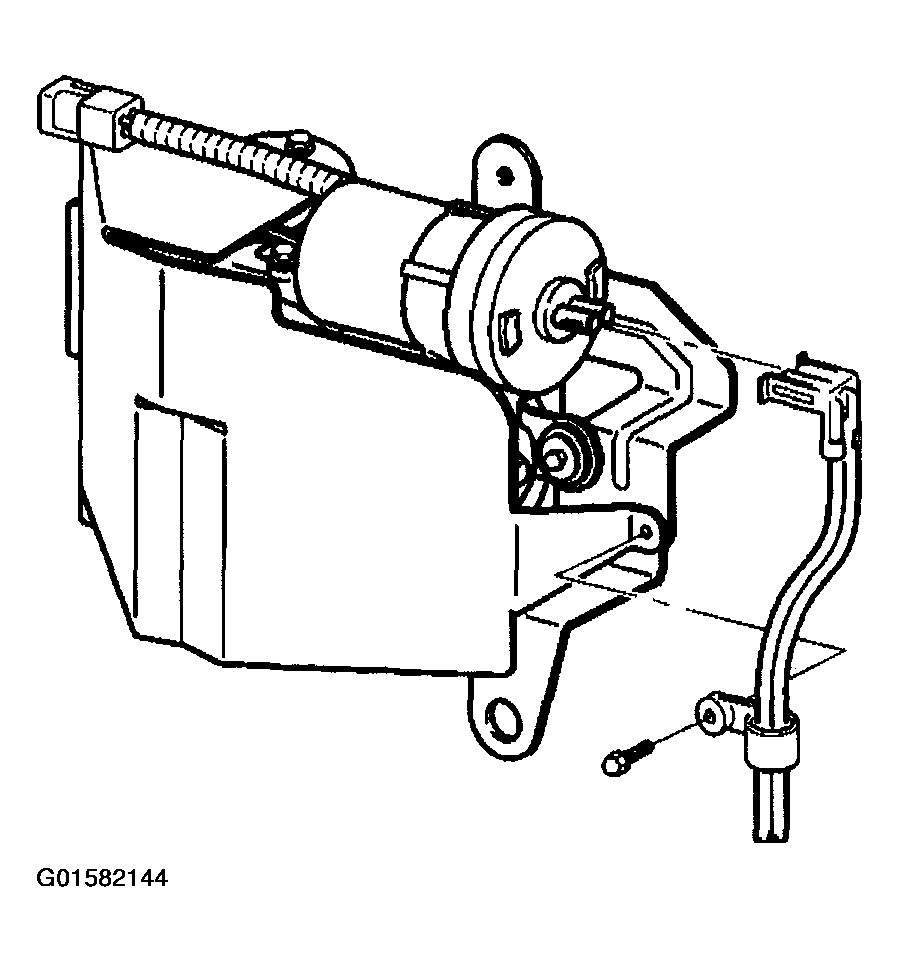

    Fig 1: Removing Harness Tie & Bolt
    G01582144Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the air tube from the left and right rear shock absorbers.
  6. Remove the 2 metal clips from the air tube and the vehicle.
  7. Remove the air tube with the 3 clips from the vehicle.

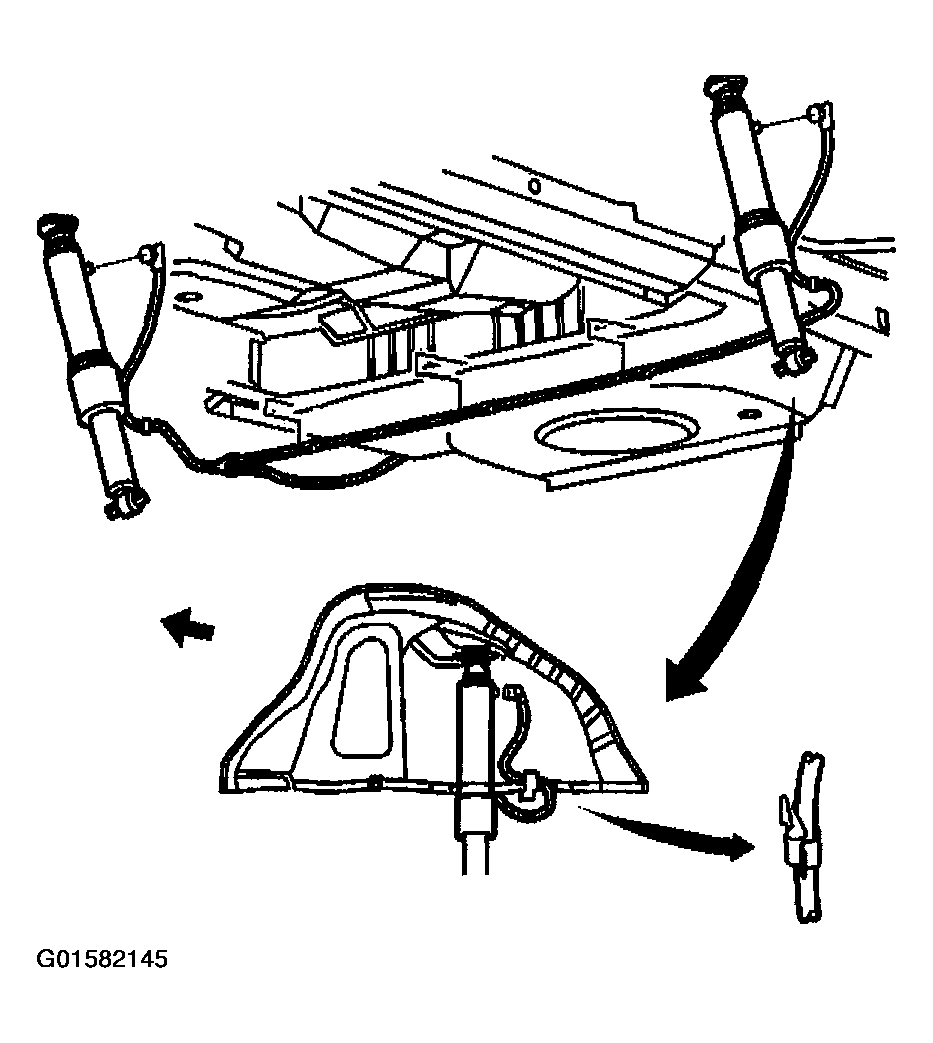

    Fig 2: Disconnecting Air Tube From Rear Shock Absorbers
    G01582145Courtesy of GENERAL MOTORS CORP.
