Rear Of Vehicle High

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

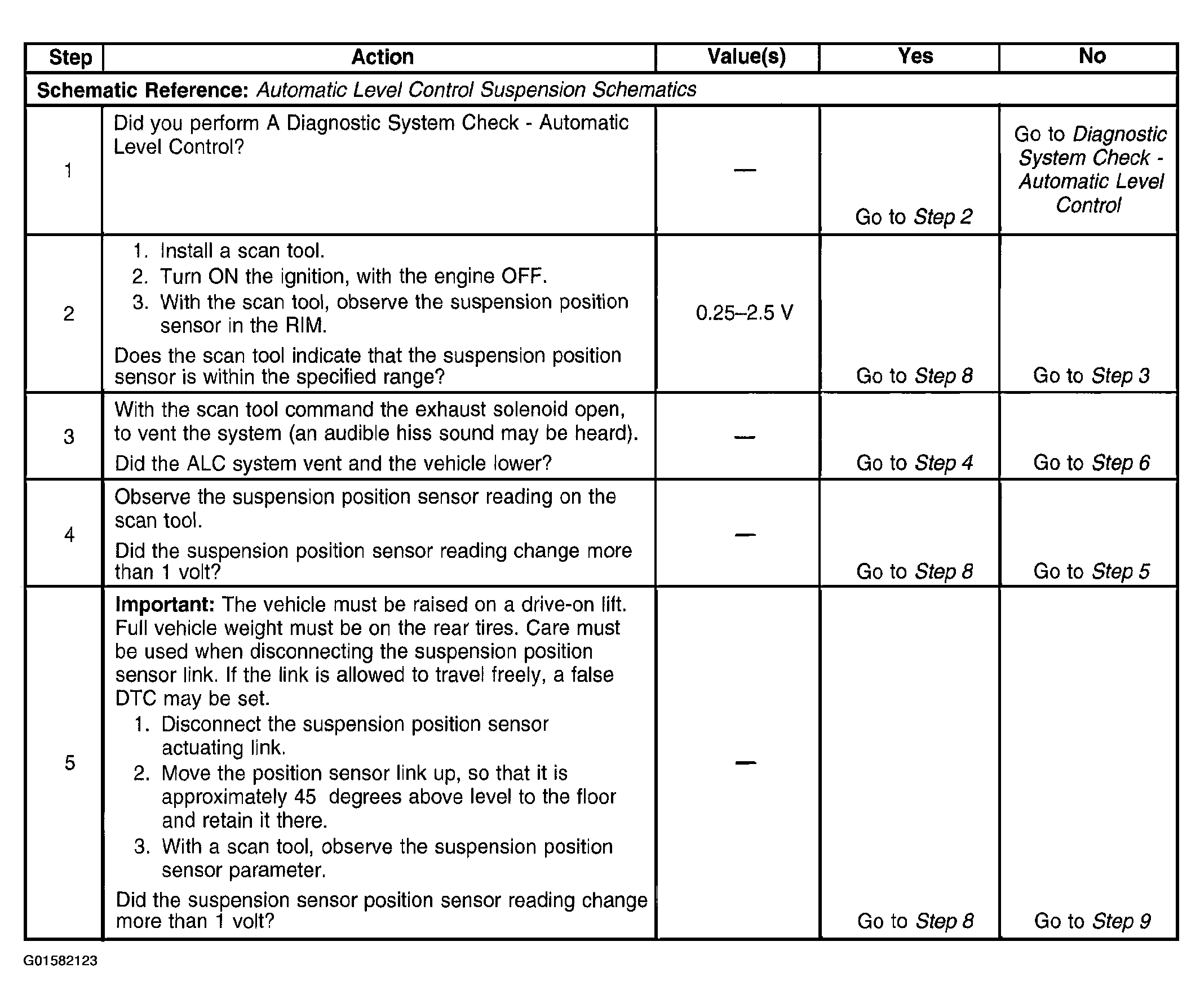

Fig 1: Rear of Vehicle High (1 Of 2)
G01582123Courtesy of GENERAL MOTORS CORP.

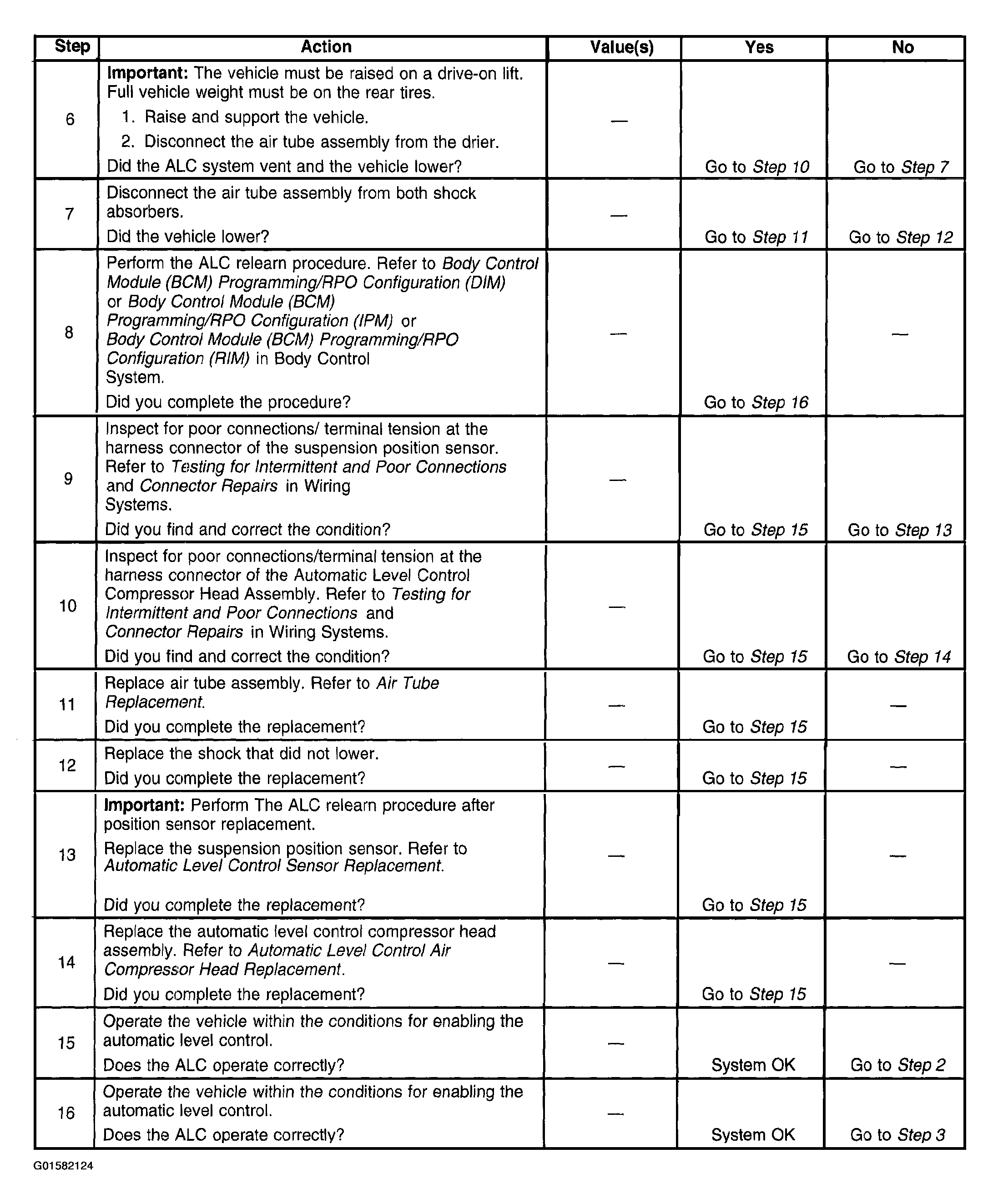

Fig 2: Rear of Vehicle High (2 Of 2)
G01582124Courtesy of GENERAL MOTORS CORP.
