Knee Bolster Trim Panel: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster lower filler panel. See INSTRUMENT PANEL CLUSTER LOWER FILLER PANEL  . Remove the instrument panel cluster trim plate. See INSTRUMENT PANEL CLUSTER BEZEL TRIM PLATE  .
  2. Remove the instrument panel lower extension trim plate. See INSTRUMENT PANEL EXTENSION TRIM PLATE  . Remove the bolts at the lower edge of the instrument panel driver knee bolster panel. Pull on the instrument panel driver knee bolster panel in order to disengage the retainers.

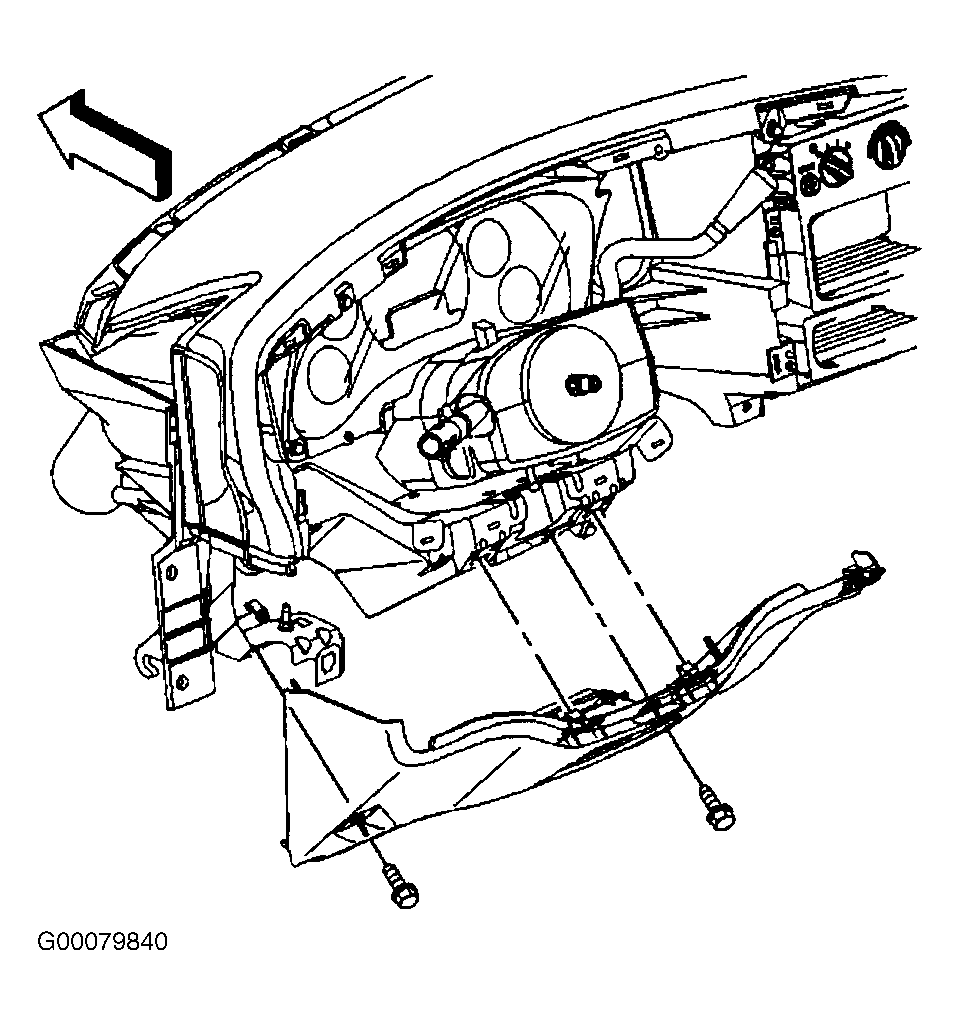

  3. Remove the instrument panel driver knee bolster panel from the vehicle. See Figure . Inspect the instrument panel driver knee bolster panel for broken or missing retainers. Replace the retainers as needed.
