Instrument Panel Extension Trim Plate: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

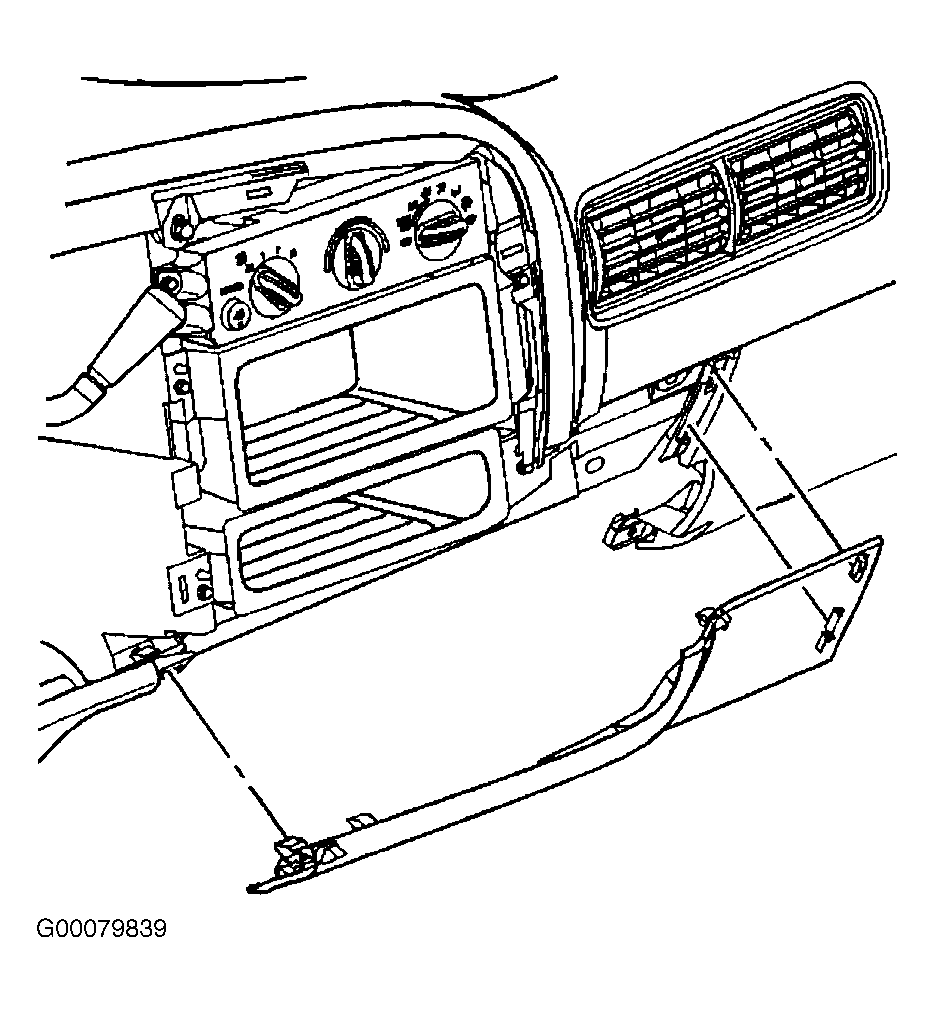

Remove the instrument panel lower extension upper trim panel by pulling out in order to disengage the retainers. Remove the instrument panel lower extension upper trim panel from the vehicle. Inspect the instrument panel lower extension upper trim panel for broken or missing retainers. See Fig 1 . Replace the retainers as needed.
