Instrument Panel Cluster Bezel Trim Plate: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the parking brake. Block the wheels. Remove the instrument panel cluster lower trim panel from the instrument panel cluster trim plate. See INSTRUMENT PANEL CLUSTER LOWER FILLER PANEL  .
  2. Pull on the instrument panel cluster trim plate in order to disengage the retainers. Remove the instrument panel cluster trim plate from the instrument panel.
  3. Pull in the following sequence to disengage the retainers. Pull at the left corner. Pull at the right corner. Pull at the top.
  4. Disconnect the electrical connectors from the switches in the instrument panel cluster trim plate. Move the shift lever to the first gear position.
  5. Rotate the instrument panel cluster trim plate counterclockwise. Lift the trim plate over the steering column. Disconnect the headlight switch and the rear heater control switch (if equipped) from the instrument panel cluster trim plate by releasing the outboard tabs.

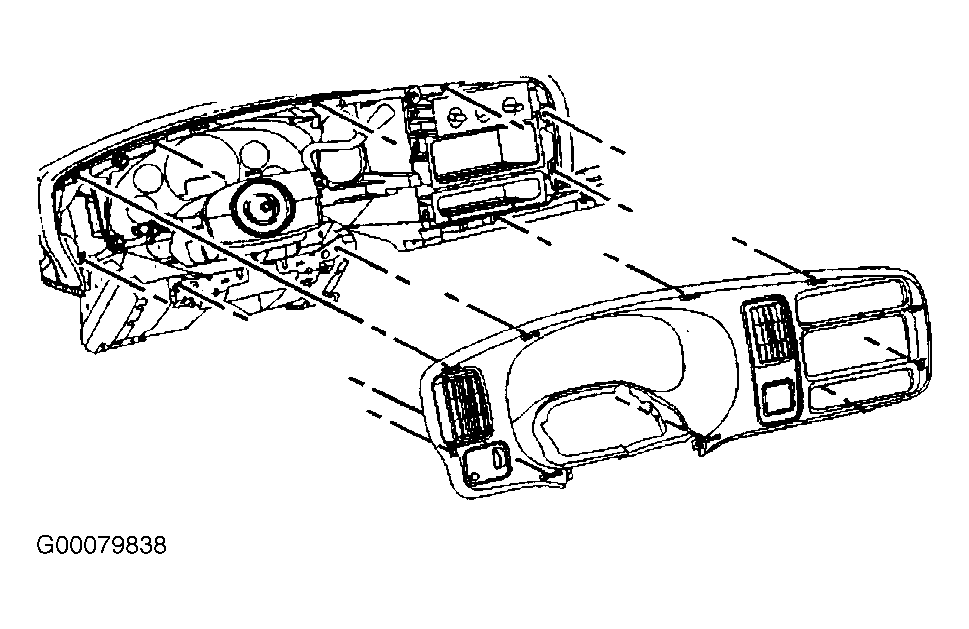

  6. Remove the instrument panel cluster trim plate from the vehicle. See Figure . Inspect the instrument panel cluster trim plate for broken or missing retainers. Replace the retainers as necessary.
