Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the fuel injector site shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT in Engine Mechanical-3.5L.
  3. Remove the power steering pump pulley from the power steering pump. Refer to Power Steering Pulley Replacement (LX5)  or Power Steering Pulley Replacement (L47)  .
  4. Remove the power steering pump pressure hose (1) from the power steering pump.

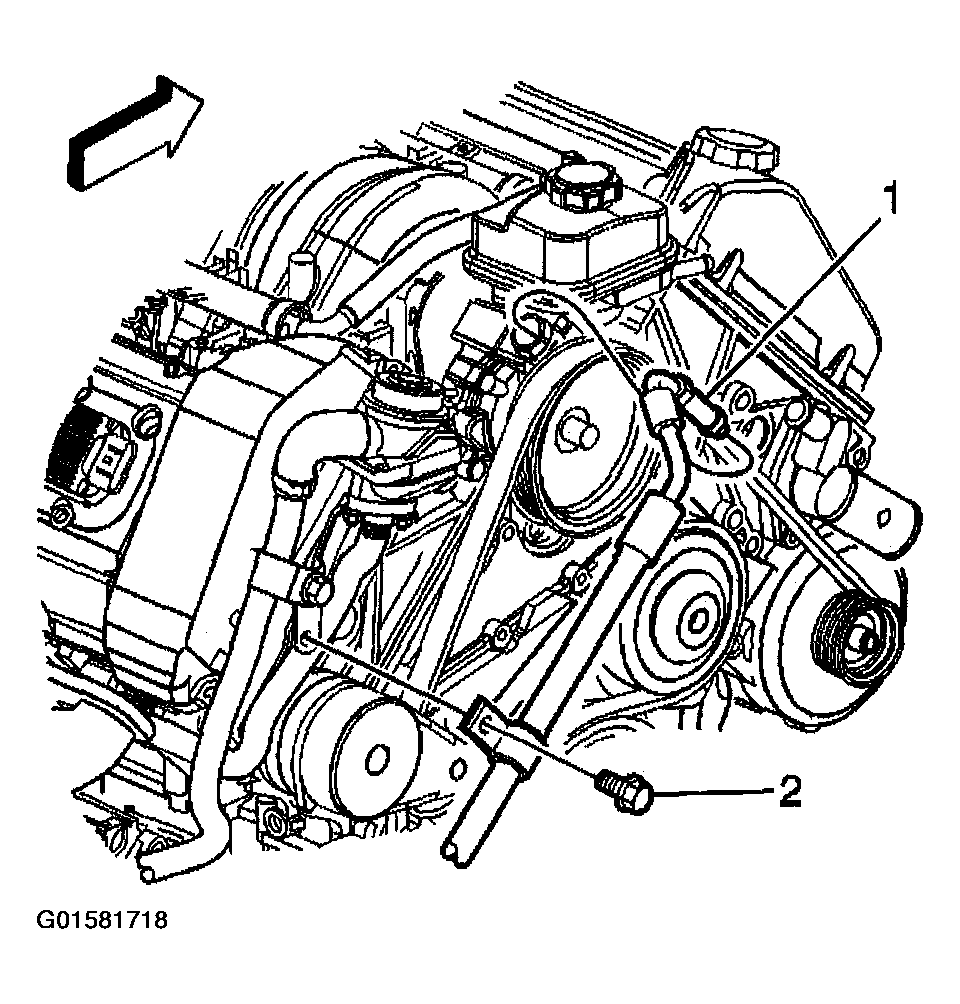

    Fig 1: Removing Power Steering Pump Pressure Hose
    G01581718Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump return hose from the power steering pump.

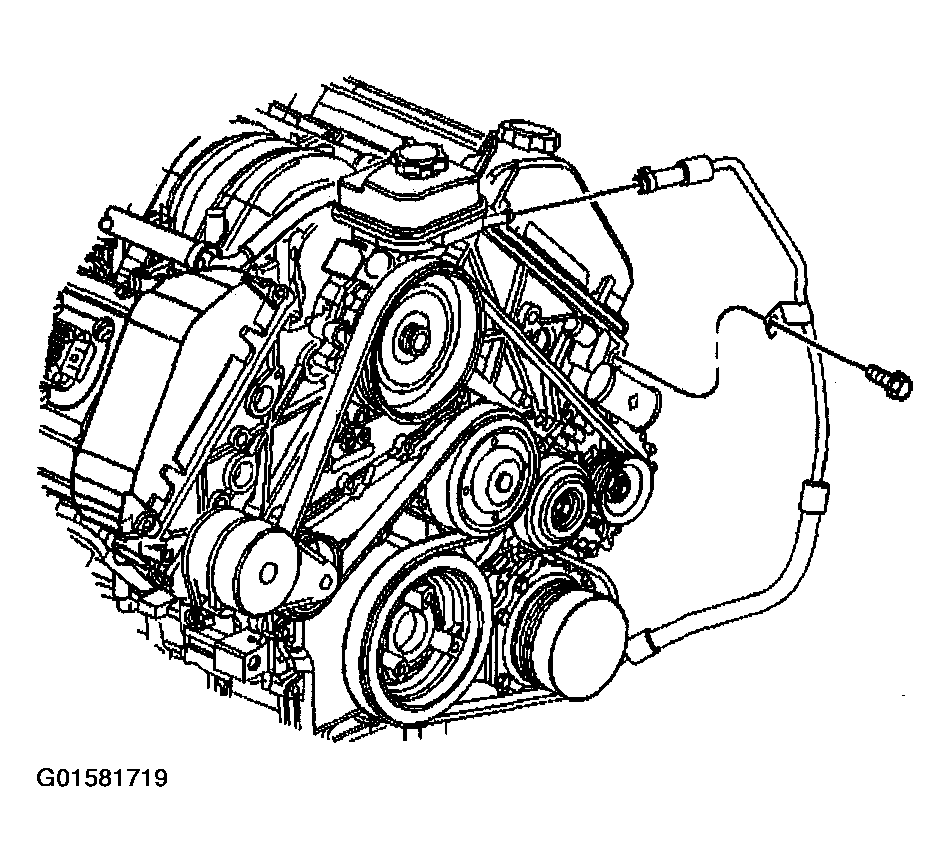

    Fig 2: Removing Power Steering Pump Return Hose
    G01581719Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering pump mounting bolts.
  7. Remove the power steering pump.
  8. Remove the power steering pump reservoir from the power steering pump. Refer to Power Steering Reservoir Replacement - Off Vehicle .

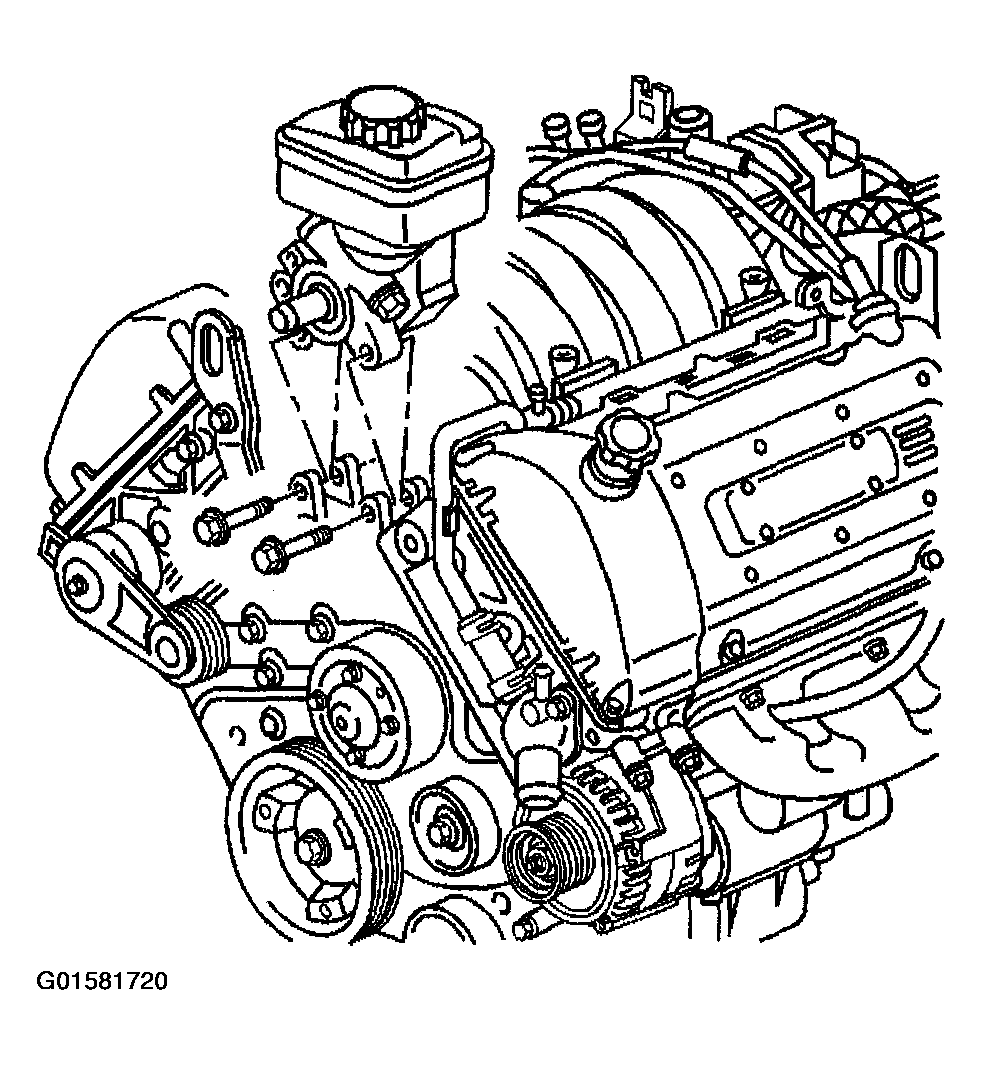

    Fig 3: Removing Power Steering Pump
    G01581720Courtesy of GENERAL MOTORS CORP.
