Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the power steering pump reservoir to the power steering pump. Refer to Power Steering Reservoir Replacement - Off Vehicle .
Install the power steering pump to the vehicle.
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the power steering pump mounting bolts.
Tighten

Tighten the power steering pump mounting bolts to 25 N.m (18 ft lbs).

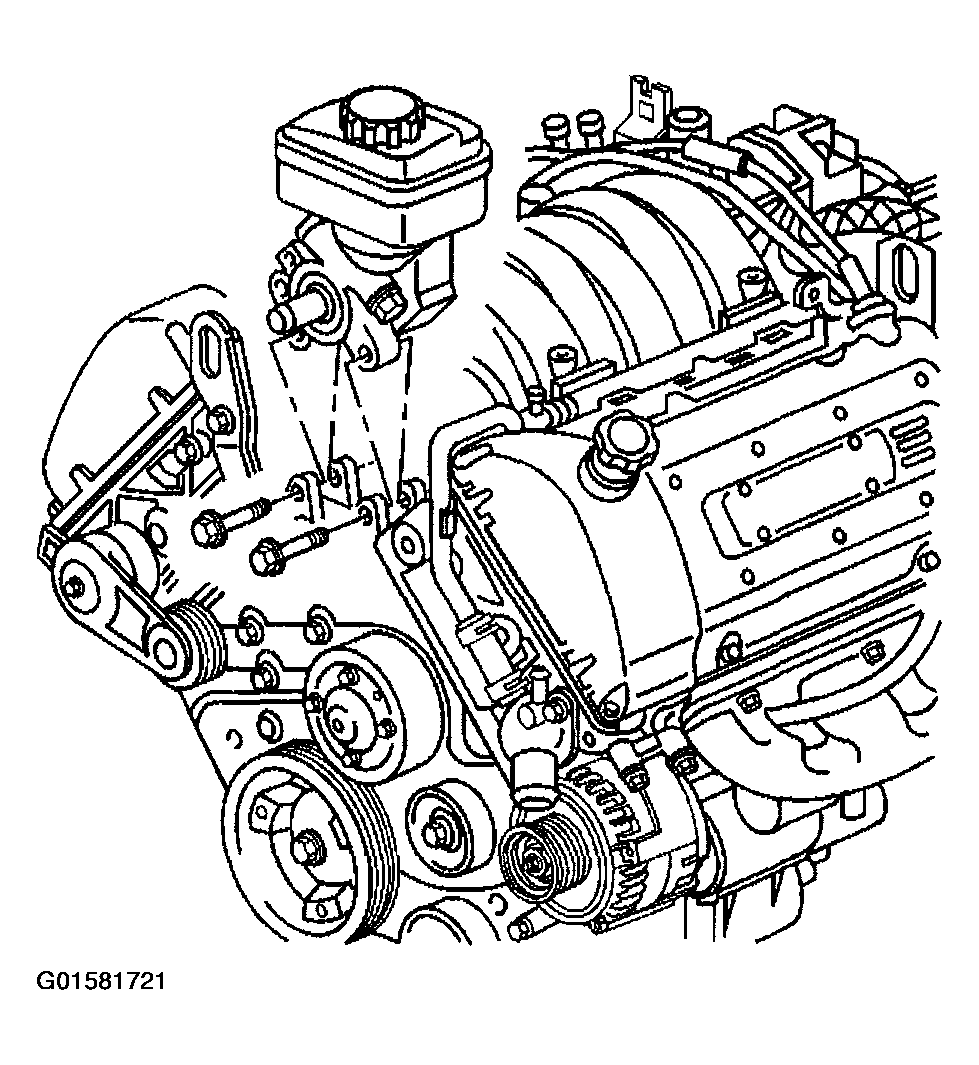

Fig 1: Installing Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Install the power steering pump return hose to the power steering pump.

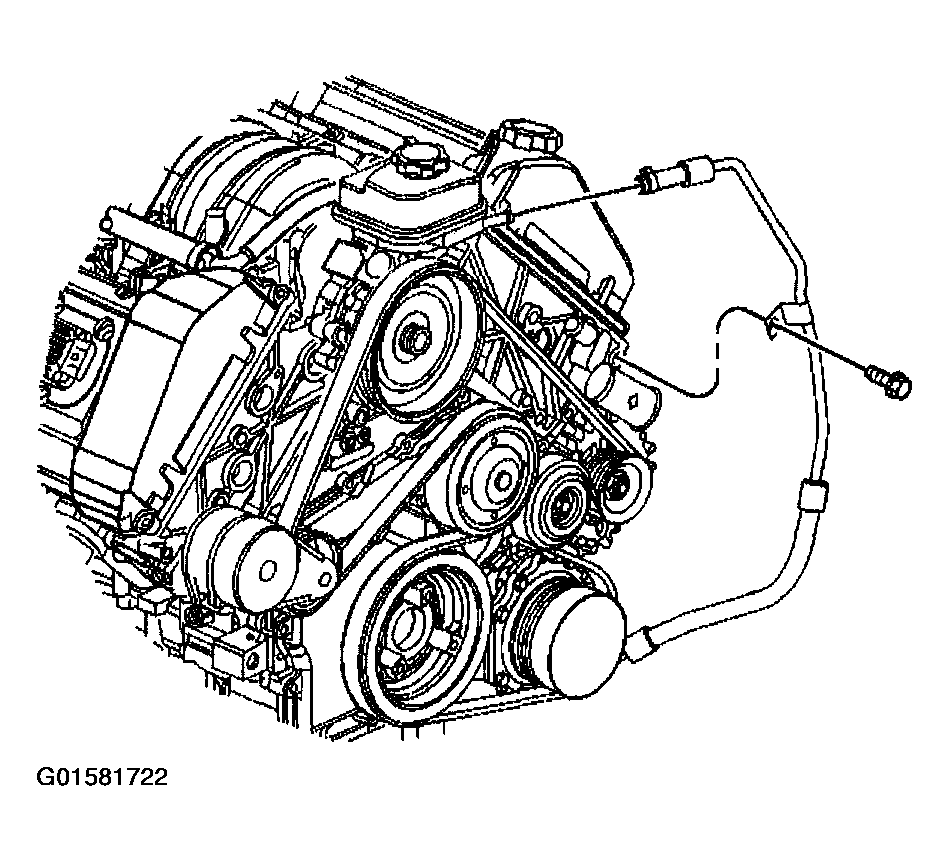

Fig 2: Installing Power Steering Pump Return Hose
Courtesy of GENERAL MOTORS CORP.
Install the power steering pump pressure hose (1) to the power steering pump.
Tighten

Tighten the power steering pump pressure hose to 30 N.m (22 ft lbs).

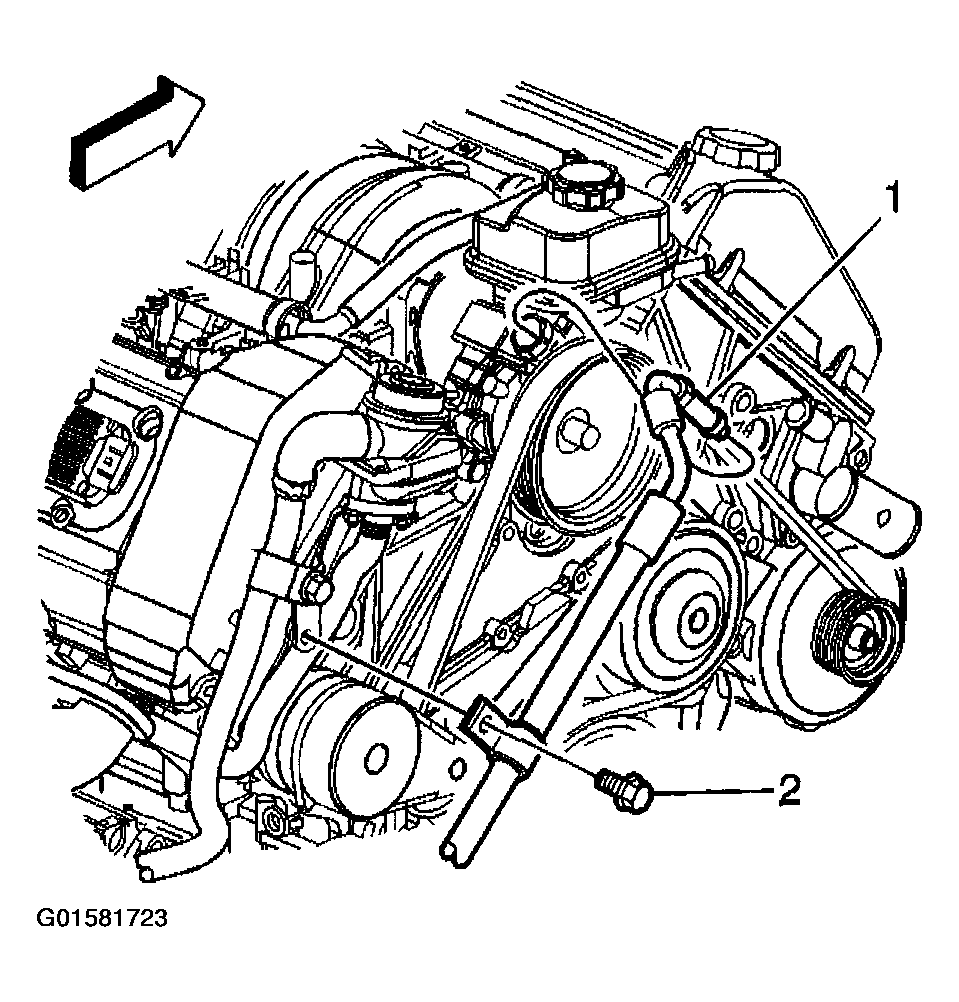

Fig 3: Installing Power Steering Pump Pressure Hose

Courtesy of GENERAL MOTORS CORP.

Install the power steering pump pulley to the power steering pump. Refer to Power Steering Pulley Replacement (LX5) or Power Steering Pulley Replacement (L47) .
Install the fuel injector site shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT in Engine Mechanical-3.5L.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
Inspect the power steering system for leaks.
