Disassembly Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not attempt to disassemble the hydraulic pump (1).

  1. Inspect the hydraulic pump (1) for leaks.
  2. If pump (1) needs replacement, remove the reservoir assembly. Refer to Power Steering Reservoir Replacement - Off Vehicle .

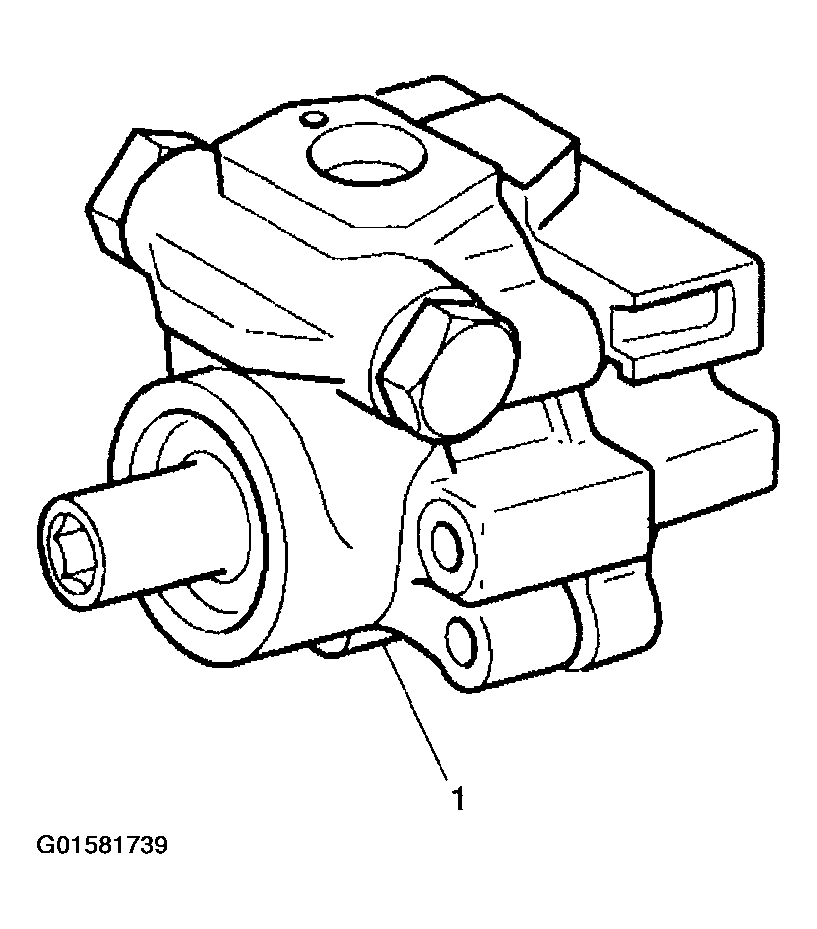

    Fig 1: Identifying Hydraulic Pump
    G01581739Courtesy of GENERAL MOTORS CORP.
