Assembly Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. After replacing the damaged pump assembly (1) with the new pump assembly (1), assemble the pump reservoir.
  2. Refer to Power Steering Reservoir Replacement - Off Vehicle .

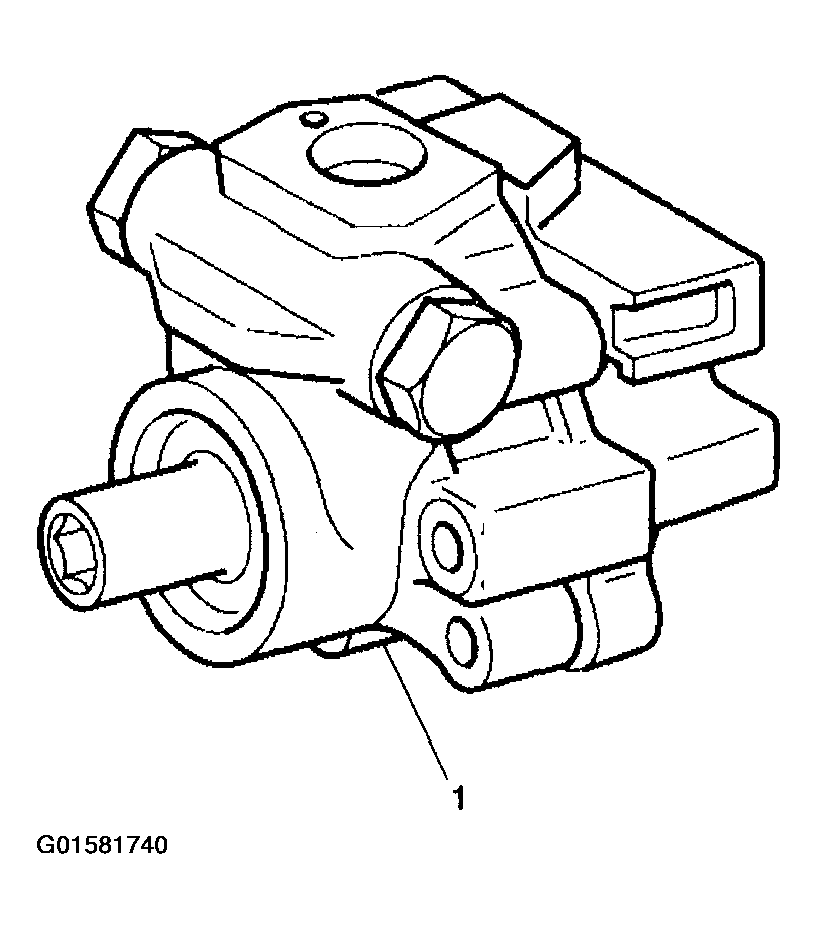

    Fig 1: Identifying Hydraulic Pump
    G01581740Courtesy of GENERAL MOTORS CORP.
