Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a drain pan under the vehicle
  2. Remove the power steering pressure hose (1) from the power steering pump.
  3. Remove the power steering pressure hose retaining bolt (2) from the engine.
  4. Raise and support the vehicle.
  5. Remove the power steering gear heat shield.

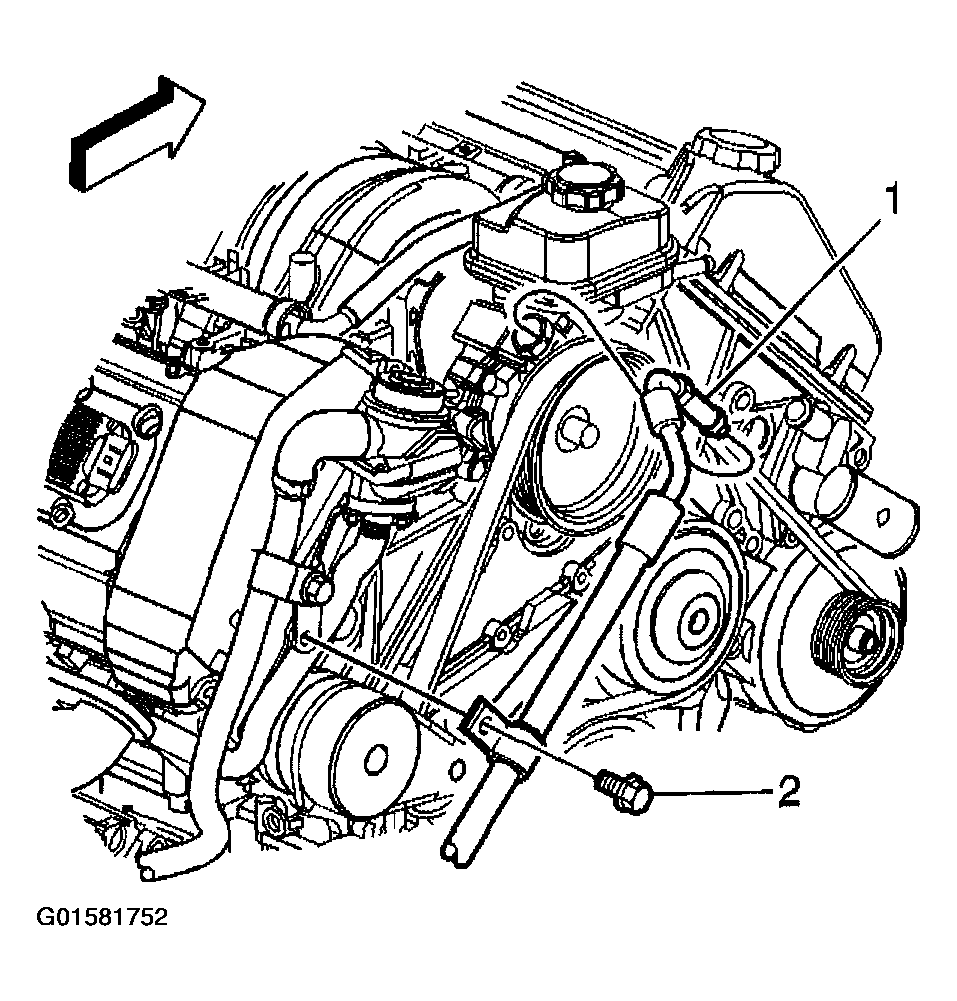

    Fig 1: Removing Power Steering Pressure Hose From Power Steering Pump & Retaining Bolt
    G01581752Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering pressure hose retainer (2) from the frame.
  7. Remove the power steering pressure hose (1) from the power steering gear.
  8. Remove the power steering pressure hose from the vehicle.

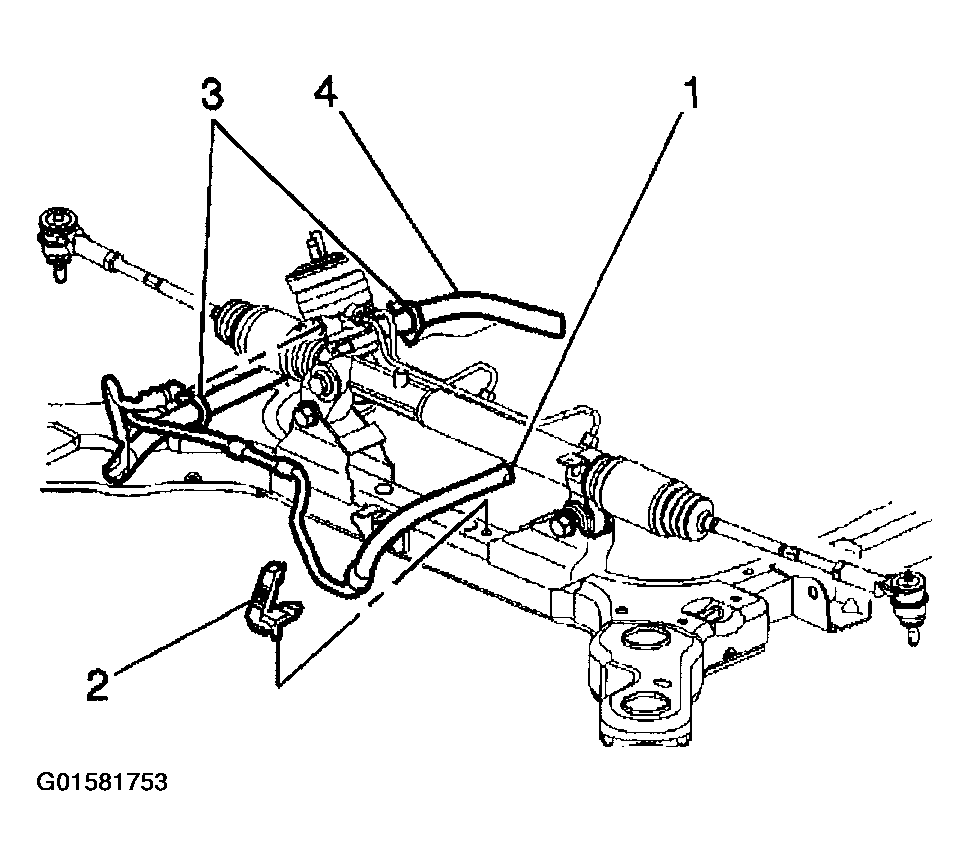

    Fig 2: Removing Power Steering Pressure Hose From Power Steering Gear
    G01581753Courtesy of GENERAL MOTORS CORP.
