Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the power steering gear heat shield. Refer to Power Steering Gear Heat Shield Replacement .
  3. Remove the power steering pressure hose retainer (2) from the engine frame at gear.
  4. Remove the power steering pressure hose from the power steering gear.

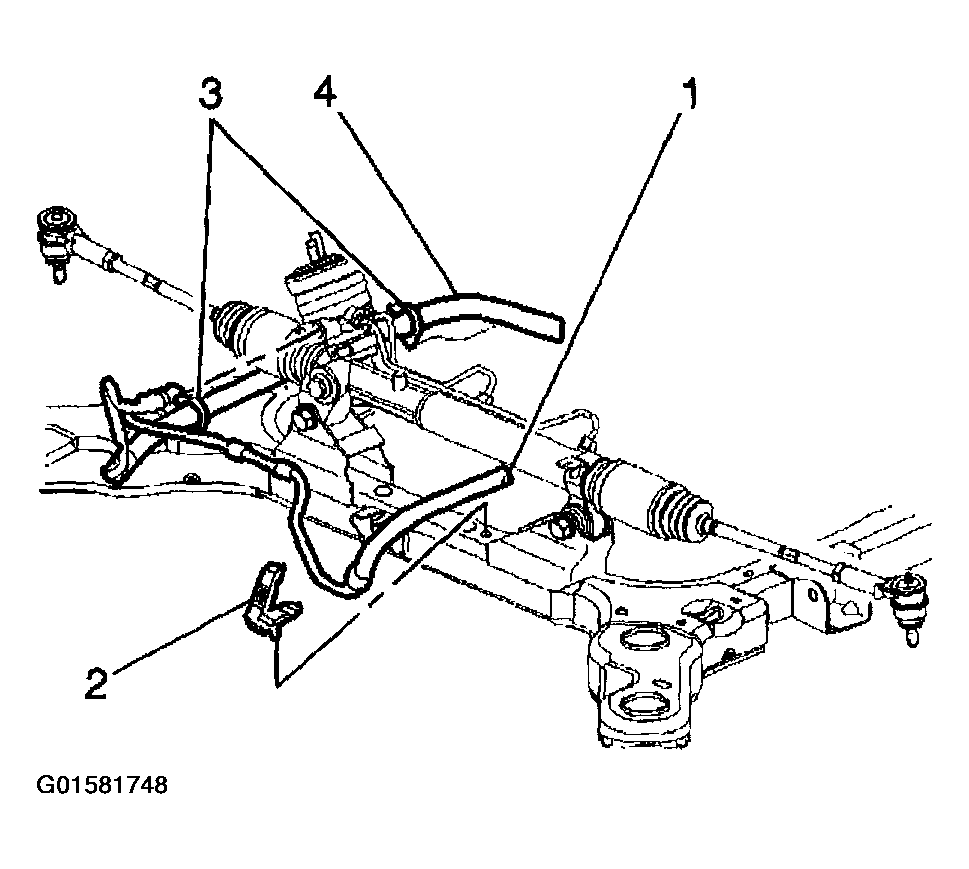

    Fig 1: Removing Power Steering Pressure Hose From Engine Frame & Power Steering Gear
    G01581748Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pressure hose retaining nut from the cylinder head.
  6. Lower the vehicle.
  7. Disconnect the power steering pressure hose at the power steering pump.
  8. Remove the power steering pressure hose from the vehicle.

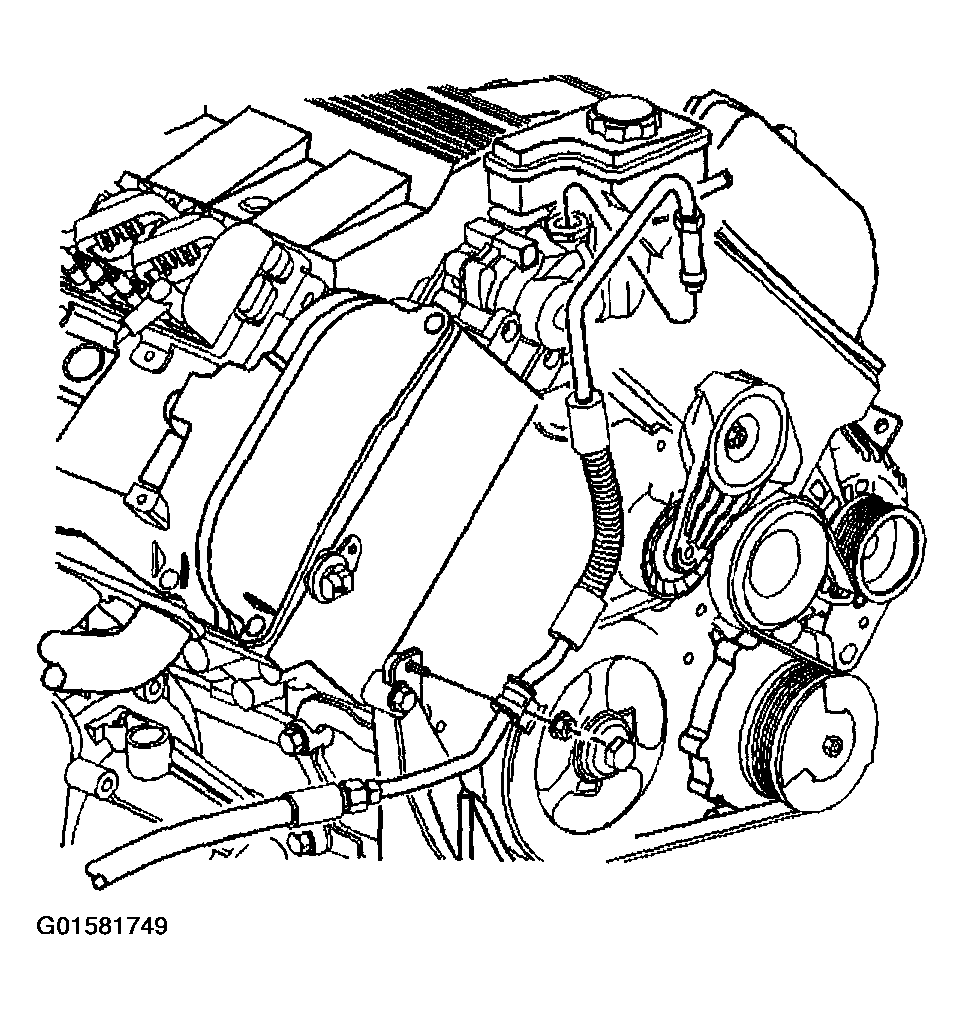

    Fig 2: Removing Power Steering Pressure Hose From Vehicle
    G01581749Courtesy of GENERAL MOTORS CORP.
