Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft links. Refer to STABILIZER BAR in Front Suspension.
  3. Rotate the stabilizer shaft downward.
  4. Remove the electrical harness clip from the power steering gear heat shield.
  5. Remove power steering gear heat shield mounting bolts.
  6. Remove the power steering gear heat shield.

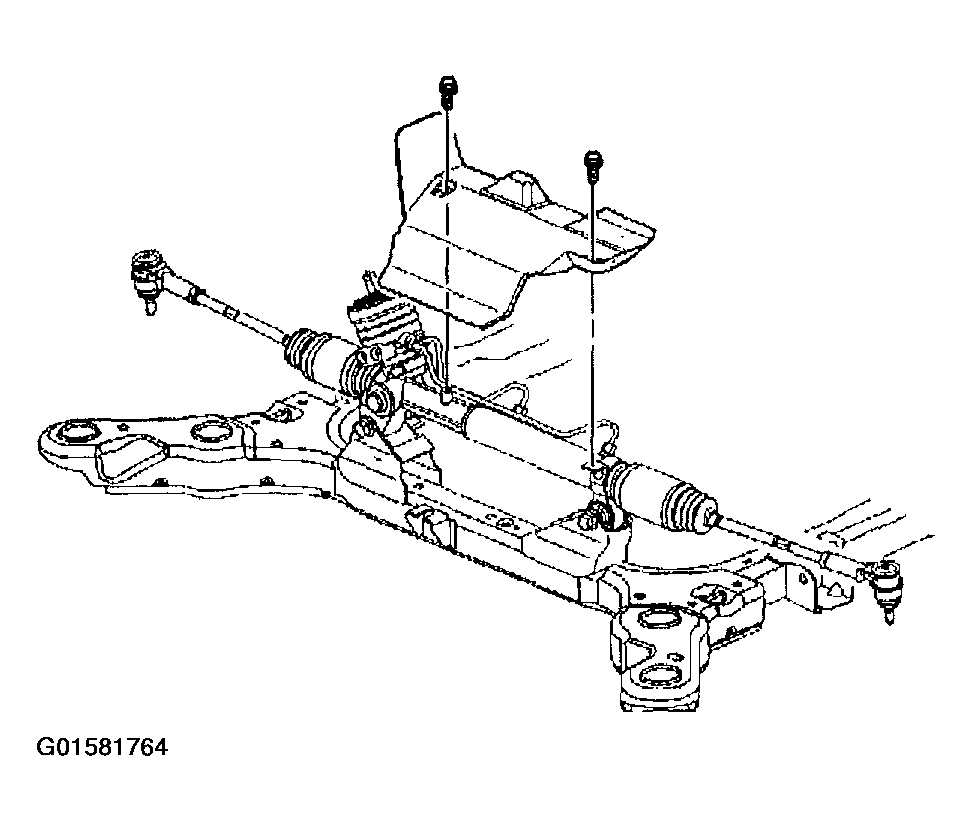

    Fig 1: Removing Power Steering Gear Heat Shield
    G01581764Courtesy of GENERAL MOTORS CORP.
