Removal Procedure

Important:  The wheel speed sensor wiring is included in the engine harness. The wiring between the wheel speed sensor and the heat shrink sealed splices is high-flex cable and must not be repaired or spliced. This procedure replaces the high-flex cable with a jumper harness from a supplied repair kit.

1. Turn OFF the ignition.
2. Raise the vehicle.
3. Remove the right front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
4. Disconnect the wheel speed sensor connector (7) from the wheel speed sensor (6).
5. Disconnect the harness grommet (3) from the strut bracket (5).
6. Disconnect the harness grommet (1) from the rail bracket (2).
7. Disconnect the harness clip (4) from the rail bracket (2).
8. Complete the following depending on engine RPO:

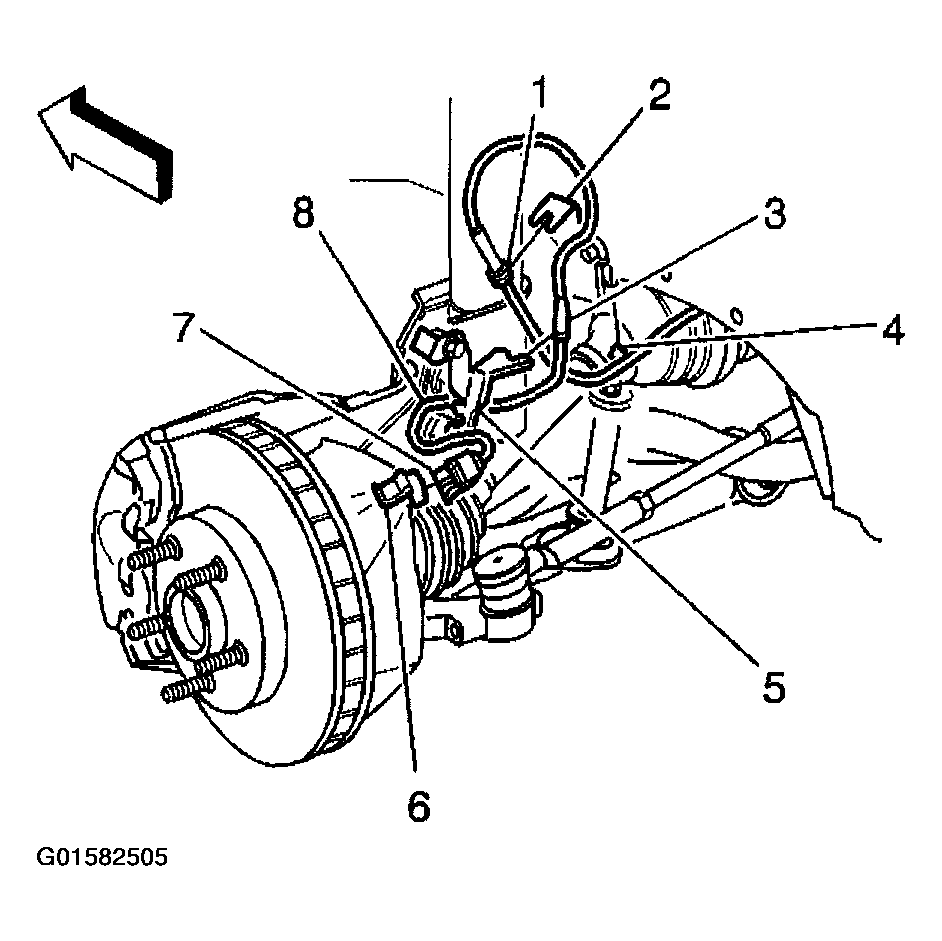

   Fig 1: Disconnecting Speed Sensor Jumper Harness Components

   Courtesy of GENERAL MOTORS CORP.
   • If equipped with LX5 complete the following:
     1. 8.1. Disconnect the vehicle speed sensor electrical connector.
     2. 8.2. Cut the engine harness conduit (1) at the shown location.
   • If equipped with L47 complete the following:
     1. 8.3. Disconnect the vehicle speed sensor electrical connector.
     2. 8.4. Lower the vehicle.
     3. 8.5. Remove the engine harness from the engine harness retainer clip and carefully pull the harness upward to access the wheel speed sensor harness.
     4. 8.6. Cut the engine harness conduit to locate the 2 heat shrink sealed splices.

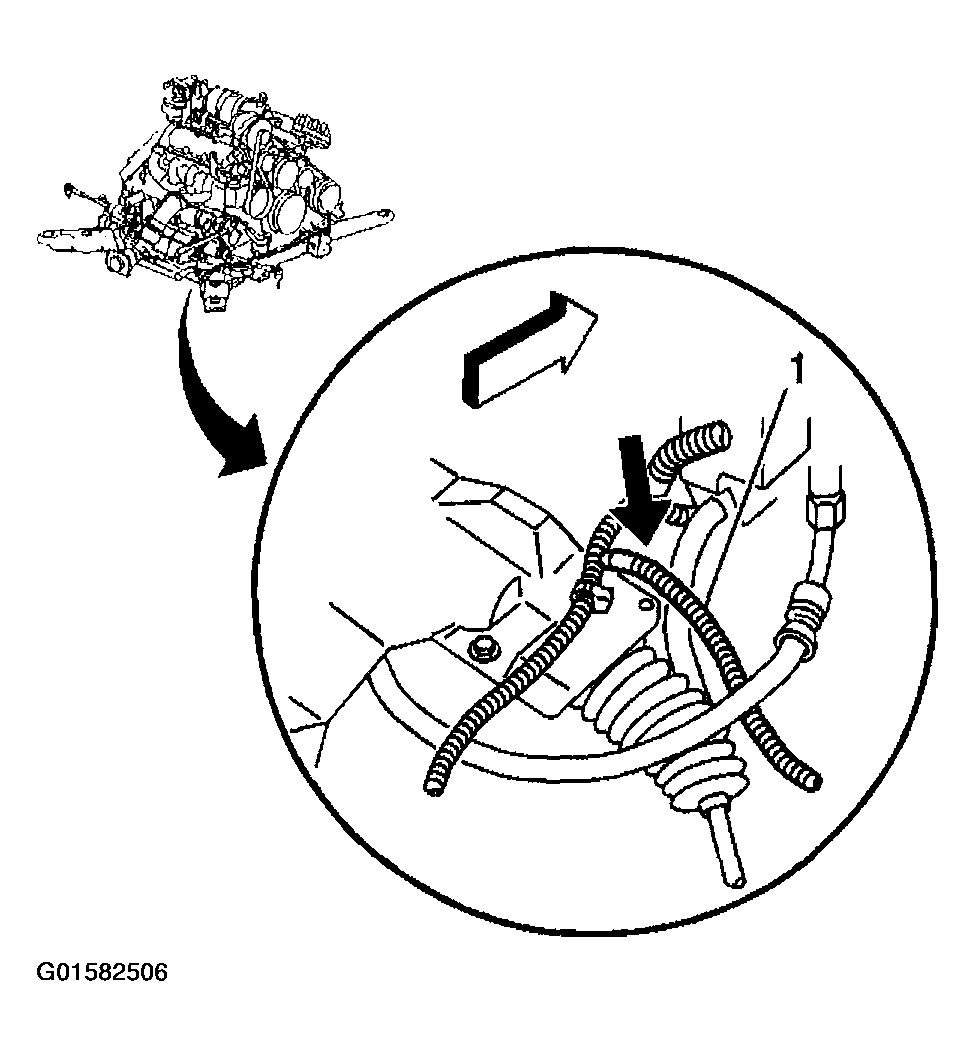

     Fig 2: Cutting Engine Harness Conduit

     Courtesy of GENERAL MOTORS CORP.
