Removal Procedure

Important:  The wheel speed sensor wiring is included in the engine harness. The wiring between the wheel speed sensor and the heat shrink sealed splices is high-flex cable and must not be repaired or spliced. This procedure replaces the high-flex cable with a jumper harness from a supplied repair kit.

1. Turn OFF the ignition.
2. Raise the vehicle.
3. Remove the left front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
4. Disconnect the wheel speed sensor connector (7) from the wheel speed sensor (6).
5. Disconnect the harness grommet (3) from the strut bracket (5).
6. Disconnect the harness grommet (1) from the rail bracket (2).
7. Disconnect the harness clip (4) from the rail bracket (2).
8. Route the wheel speed sensor wiring (8) through the top of the engine compartment.

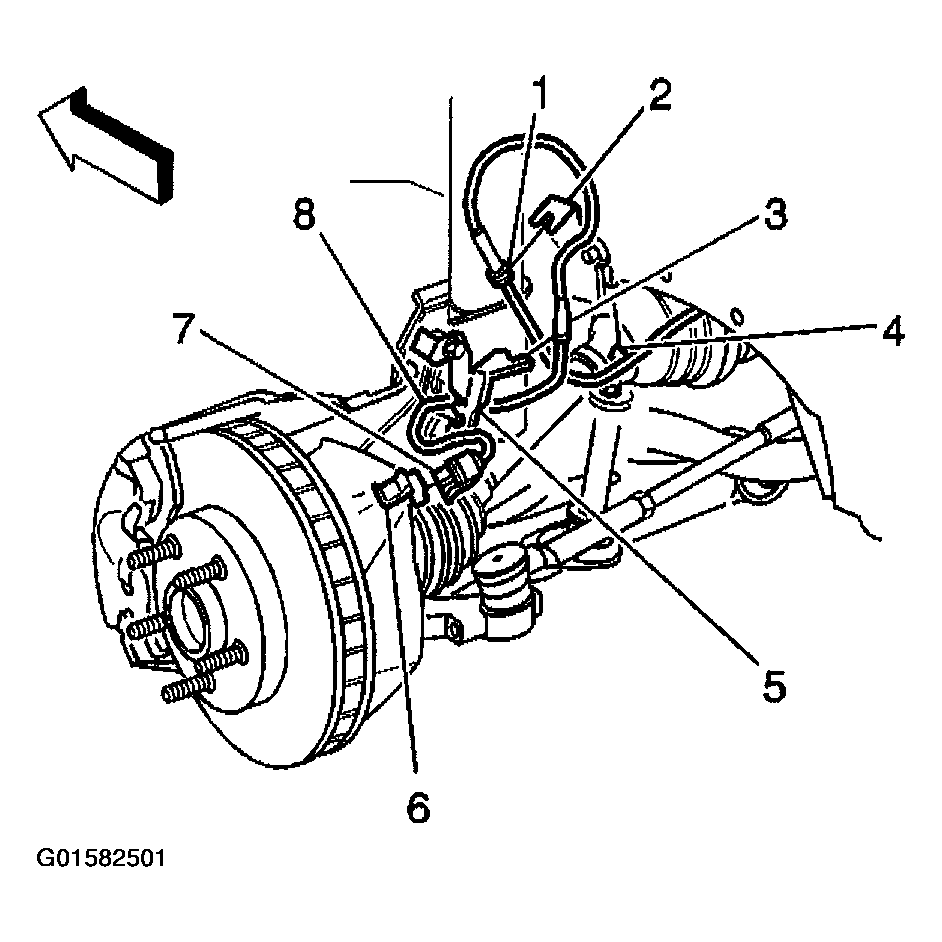

Fig 1: Disconnecting Speed Sensor Jumper Harness Components
Courtesy of GENERAL MOTORS CORP.
9. Lower the vehicle.
10. Remove the ground wire from the top of the transmission near the shift lever.
11. If equipped with a 4.0L remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
12. Pull the harness out above the air cleaner assembly for access.
13. Strip back the conduit to gain access to the 2 heat shrink sealed splices.

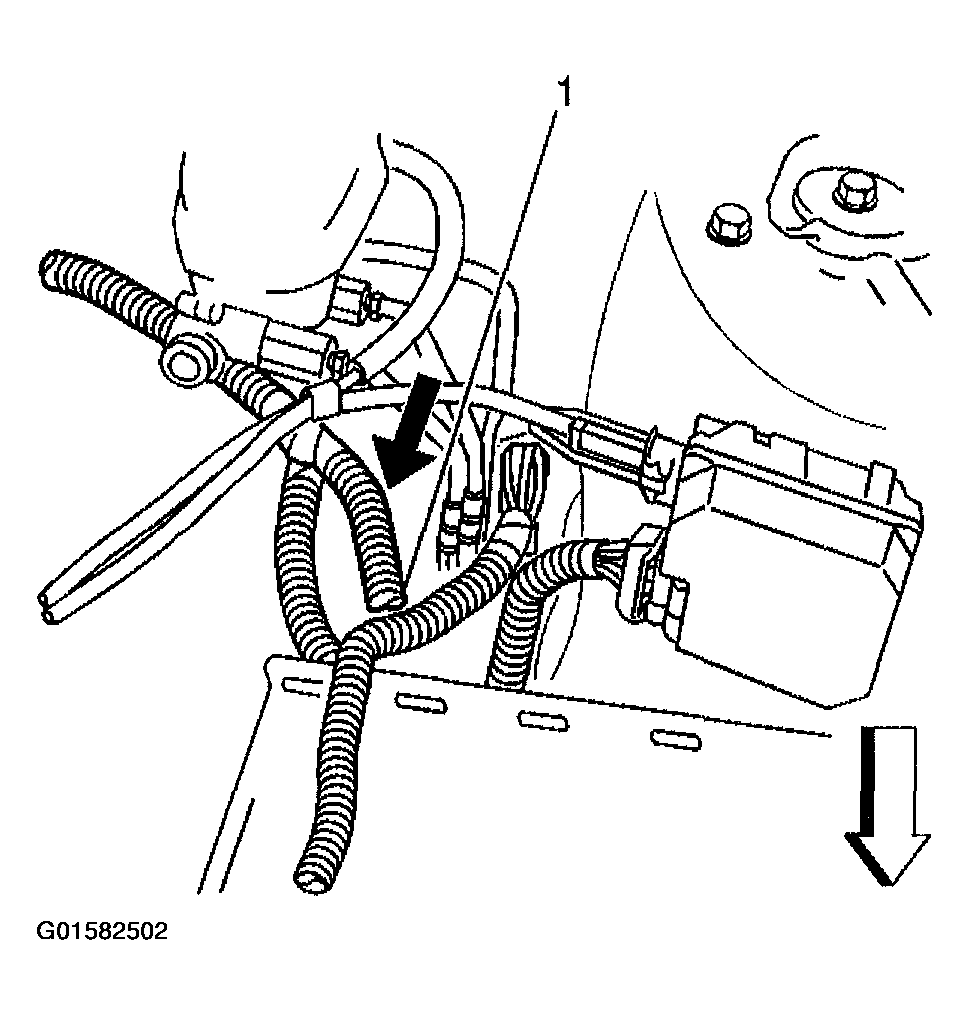

    Fig 2: Stripping Conduit To Gain Access To Heat Shrink Sealed Splices

    Courtesy of GENERAL MOTORS CORP.
