Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  Use the scan tool to check the normal state of the Traction Active indicator control.
  2. 3.  Ensures that the instrument cluster can operate the Traction Active indicator.

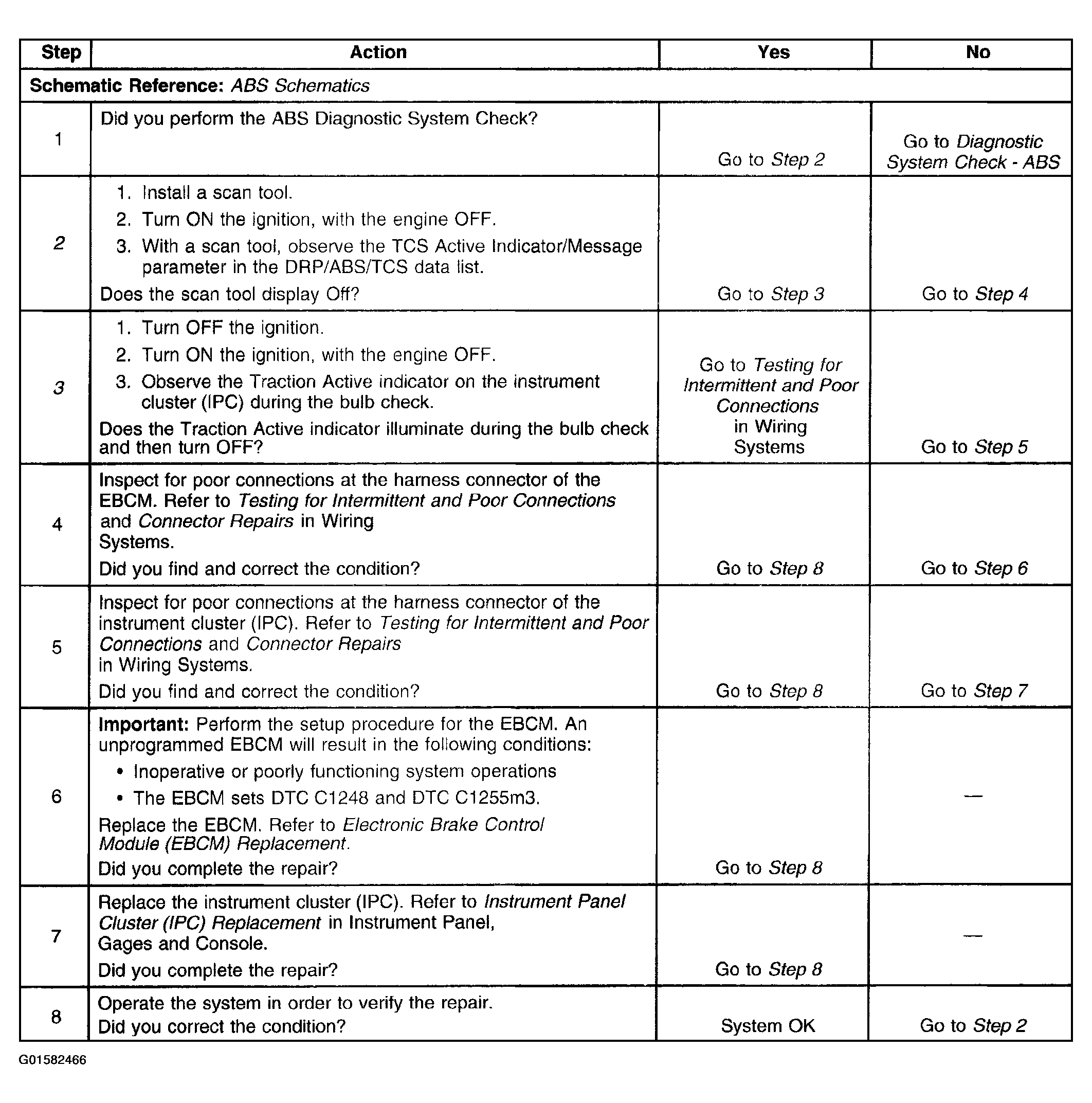

Fig 1: Traction Active Indicator Inoperative
G01582466Courtesy of GENERAL MOTORS CORP.
