Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. Test for the current state of the stoplamp switch parameter.

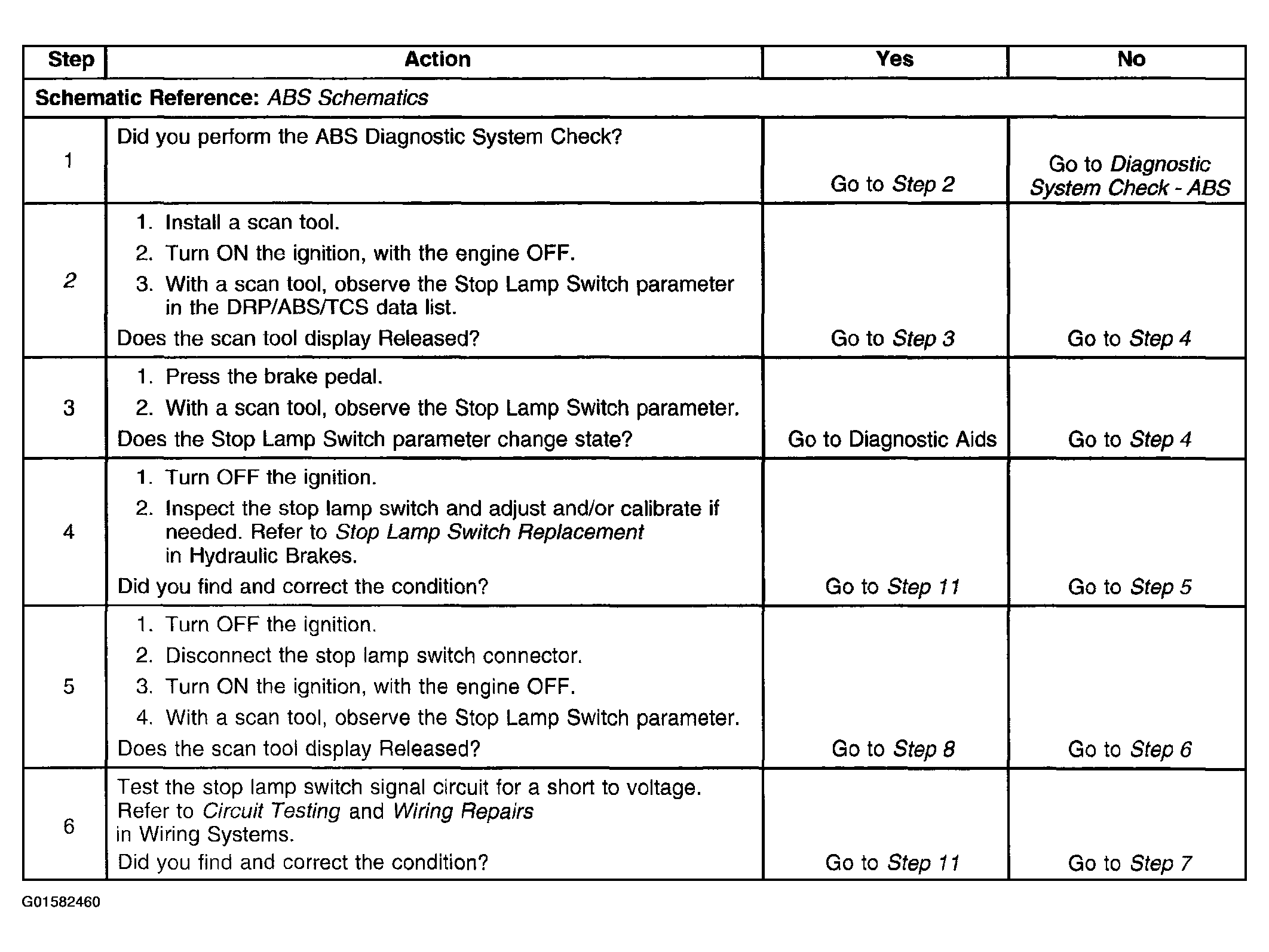

Fig 1: DTC C1294 (w/NW9) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

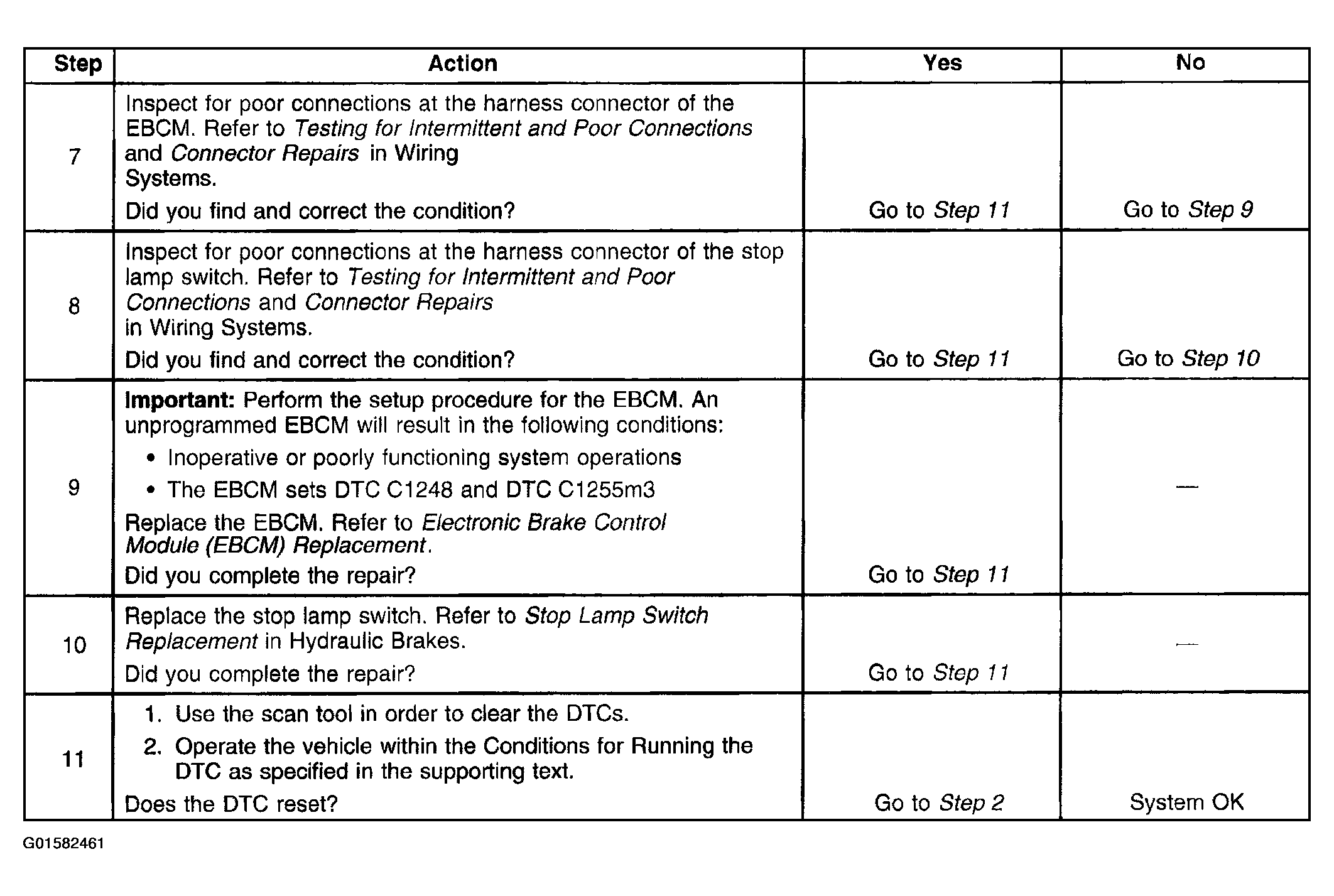

Fig 2: DTC C1294 (w/NW9) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
