Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  3. Disconnect the horn electrical connector.

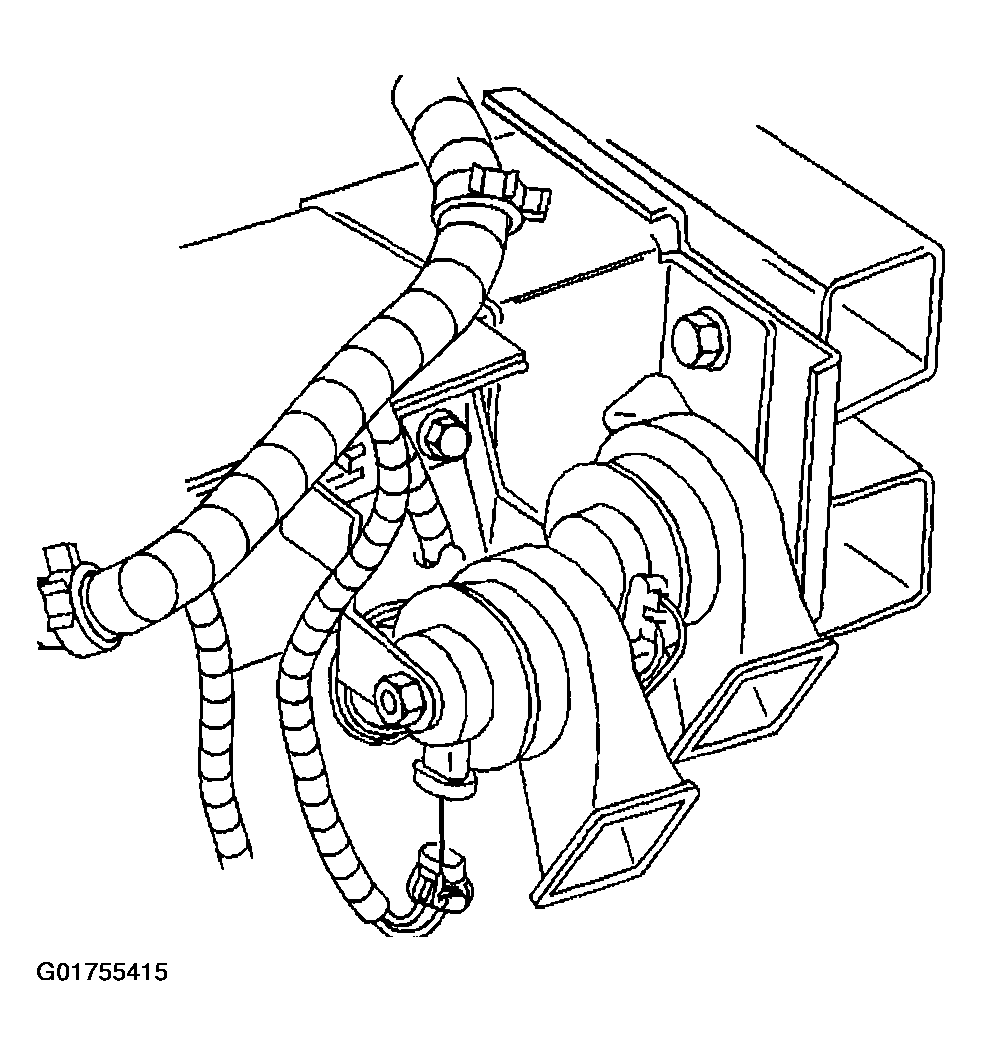

    4. Fig 1: Identifying Horn Electrical Connector
    G01755415Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.

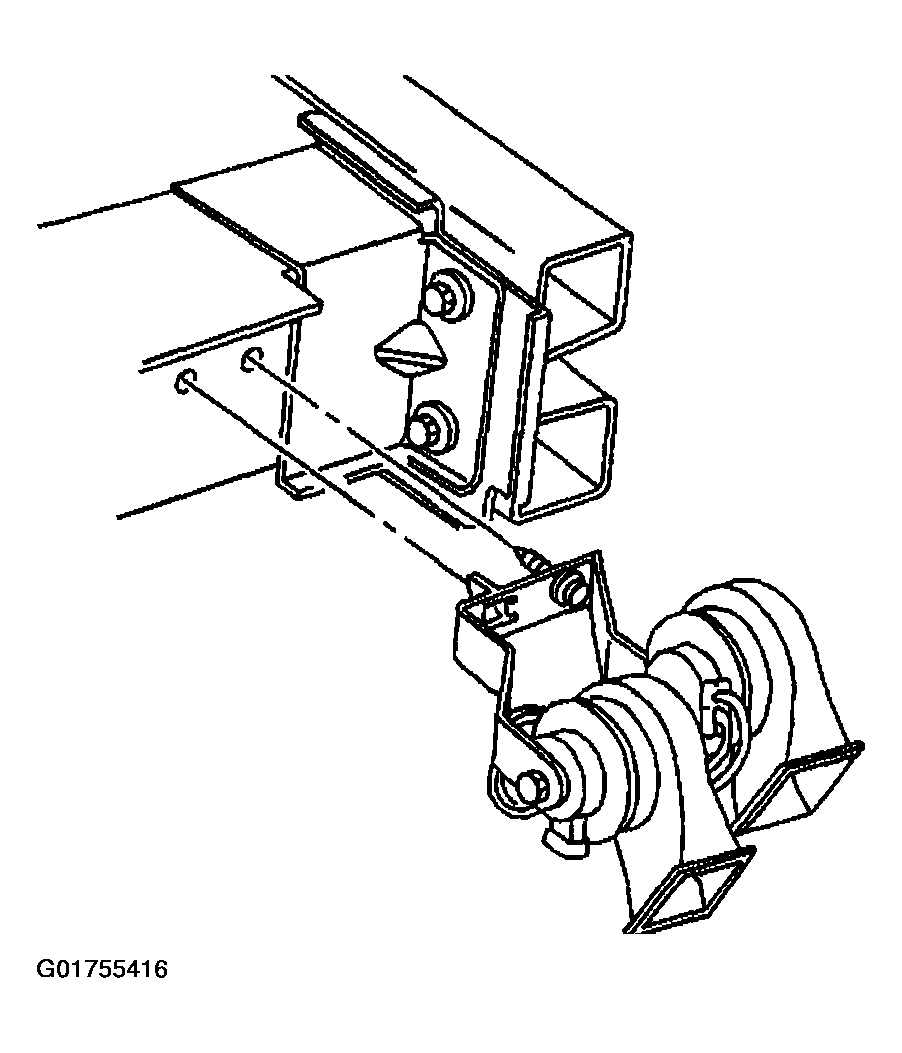

    5. Fig 2: Identifying Horns
    G01755416Courtesy of GENERAL MOTORS CORP.
  5. Remove the horn from the frame rail extension.
