Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn assembly to the frame rail extension. Insert the horn anti-rotation tab into the slot on the frame rail.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the horn bracket bolt. Tighten the bolt to 15 N.m (11 lb ft).

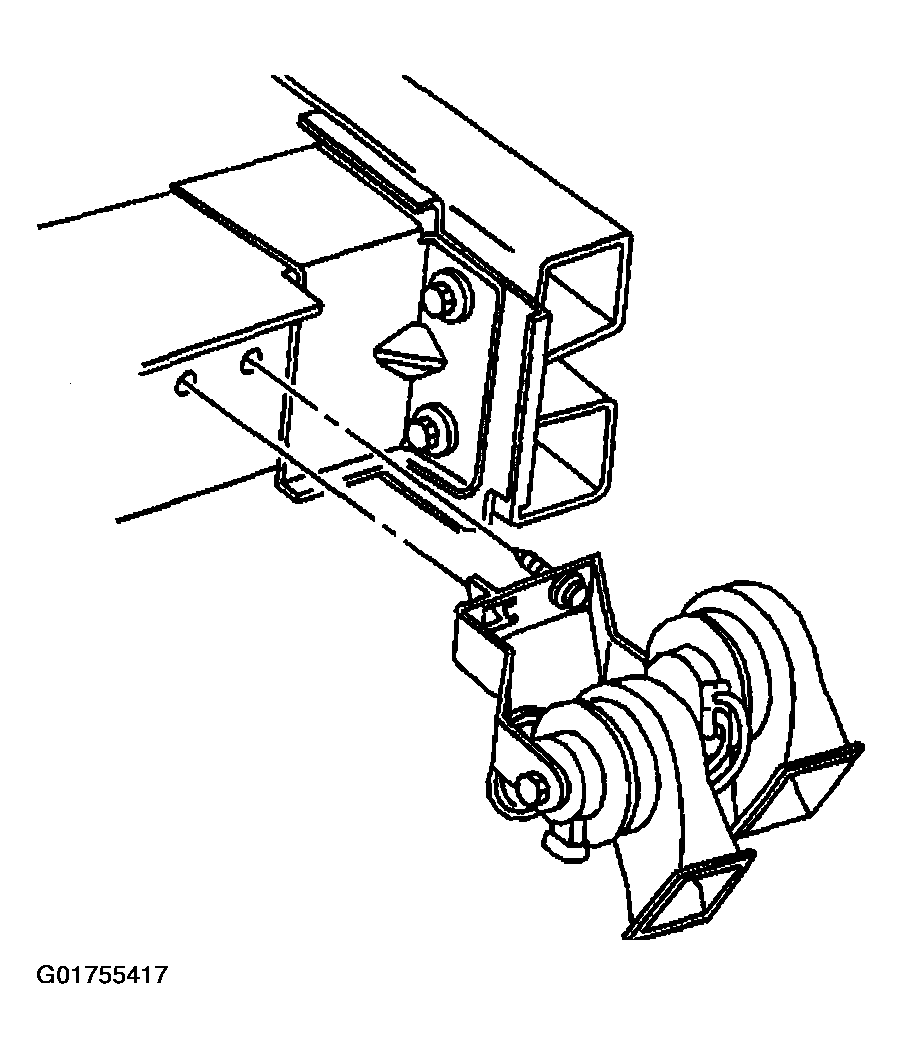

    3. Fig 1: Identifying Horns
    G01755417Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.

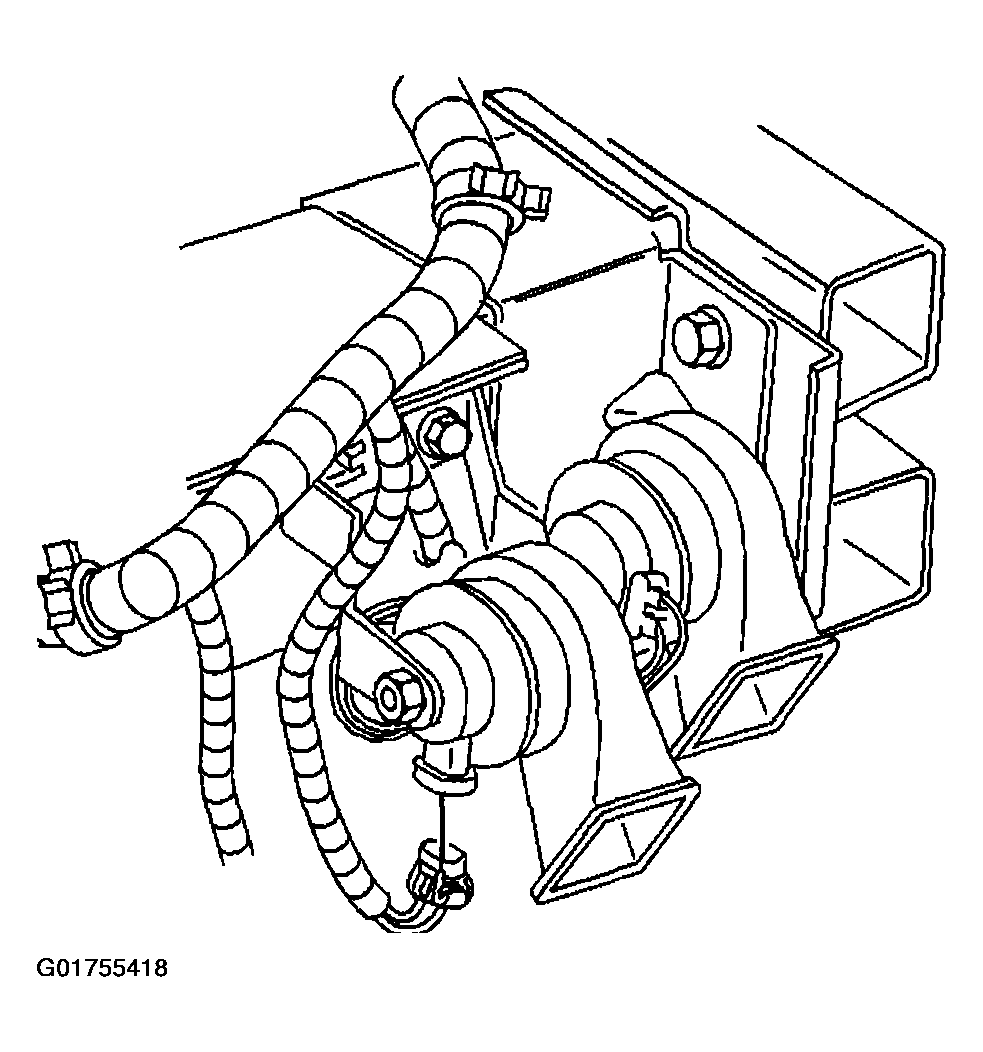

    4. Fig 2: Identifying Horn Electrical Connector
    G01755418Courtesy of GENERAL MOTORS CORP.
  4. Install the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  5. Close the hood.
